MER5765QAB 04 – DOOR/DRAWER

MER5765QAB 04 – DOOR/DRAWER

Written by

in

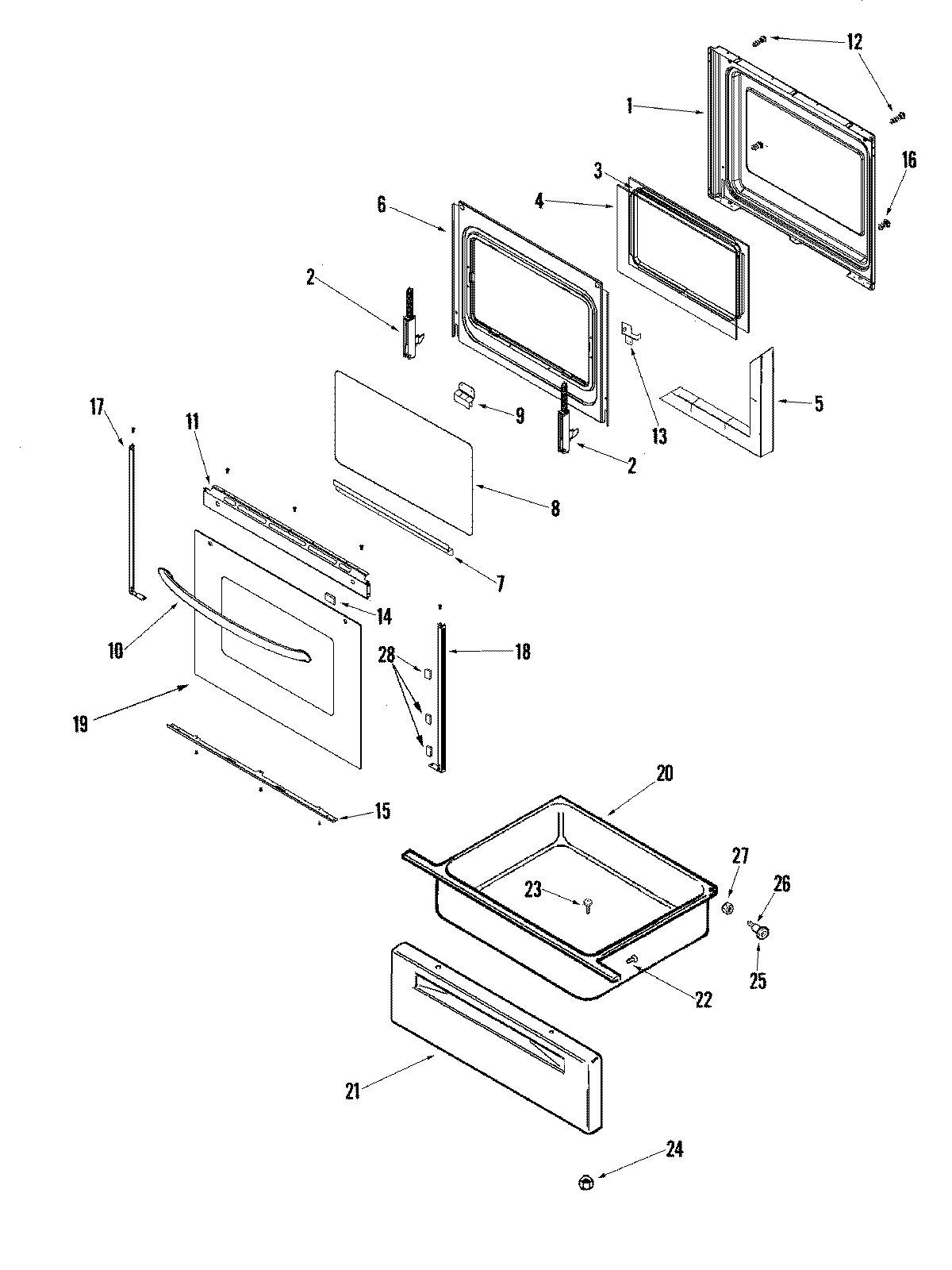

MER5765QAB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008742
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10WP74011767 Whirlpool Door Handle
11WP98008545 Whirlpool Screw
11Trim, Door Top (Black)
12WP74006515 Whirlpool Washer Screw
13MAY 74008750
13MAY 74008749
14WP74004224 Whirlpool Tape
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17MAY 74008902
18MAY 74010560
18MAY 74008901
19Glass, Door (Black (Order Item 15 When Replacing Door Glass))
20DRAWER, STORAGE
21Panel, Drawer (Black)
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
26SHAFT, STORAGE DRAWER ROLLER
27WP488130 Whirlpool Air Conditioner Nut
28WP74009025 Whirlpool Double Sided Tape
