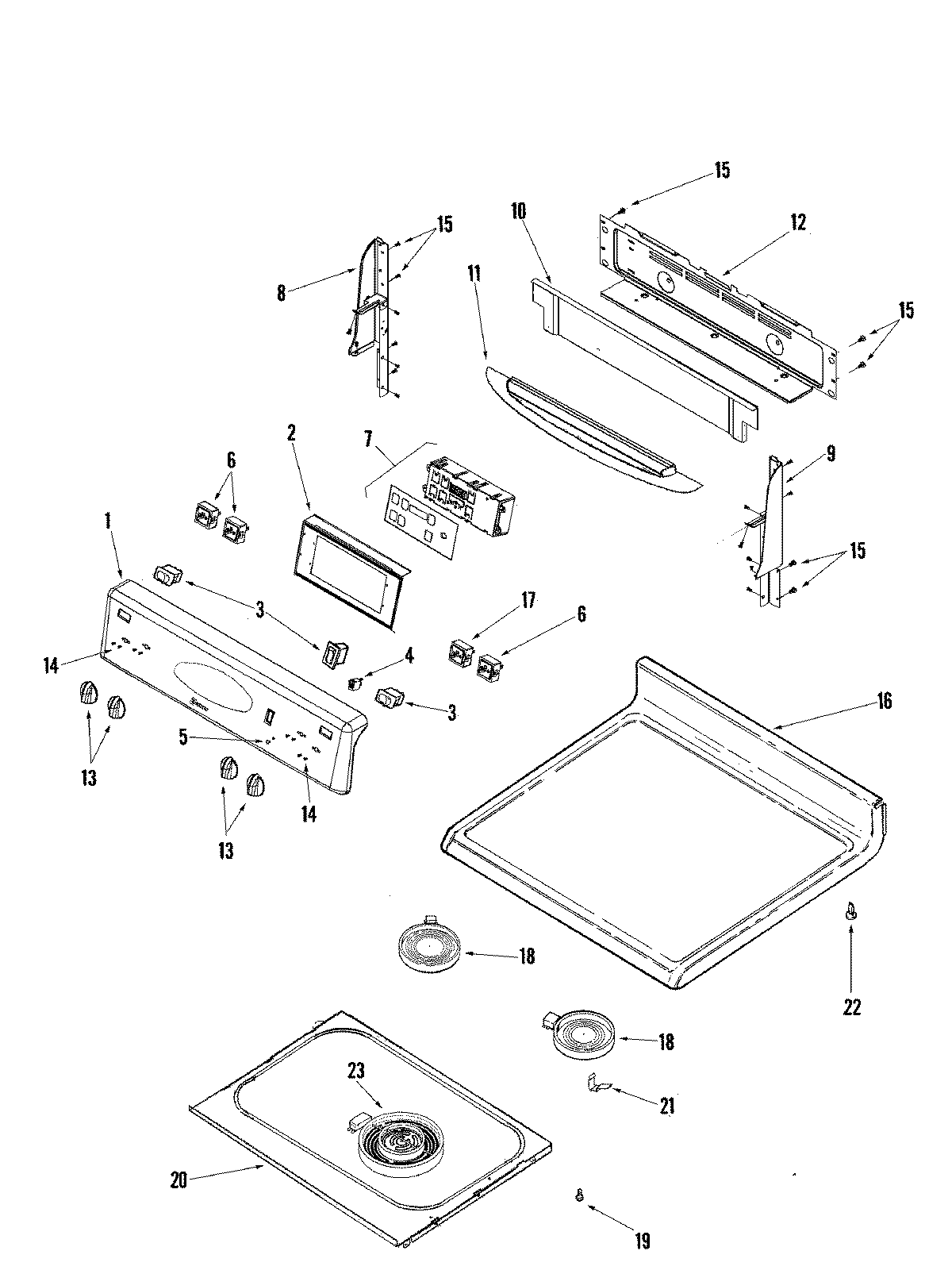

MER5765QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009161
2	BRACKET, CLOCK
3	7403P984-60 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74008646
7	MAY 74009212
8	END CAP (RT-BSQ)
9	END CAP (LT-BSQ)
10	MAY 74009207
10	MAY 74008727
11	MAY 74008729
11	SHIELD, HEAT VISOR (BSQ)
12	MAY 74008836
12	MAY 74008730
13	74008946 Whirlpool Oven Bisque Knob
14	SCREW
16	MAY 74008552
17	WP74008940 Whirlpool Infinite Switch
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
