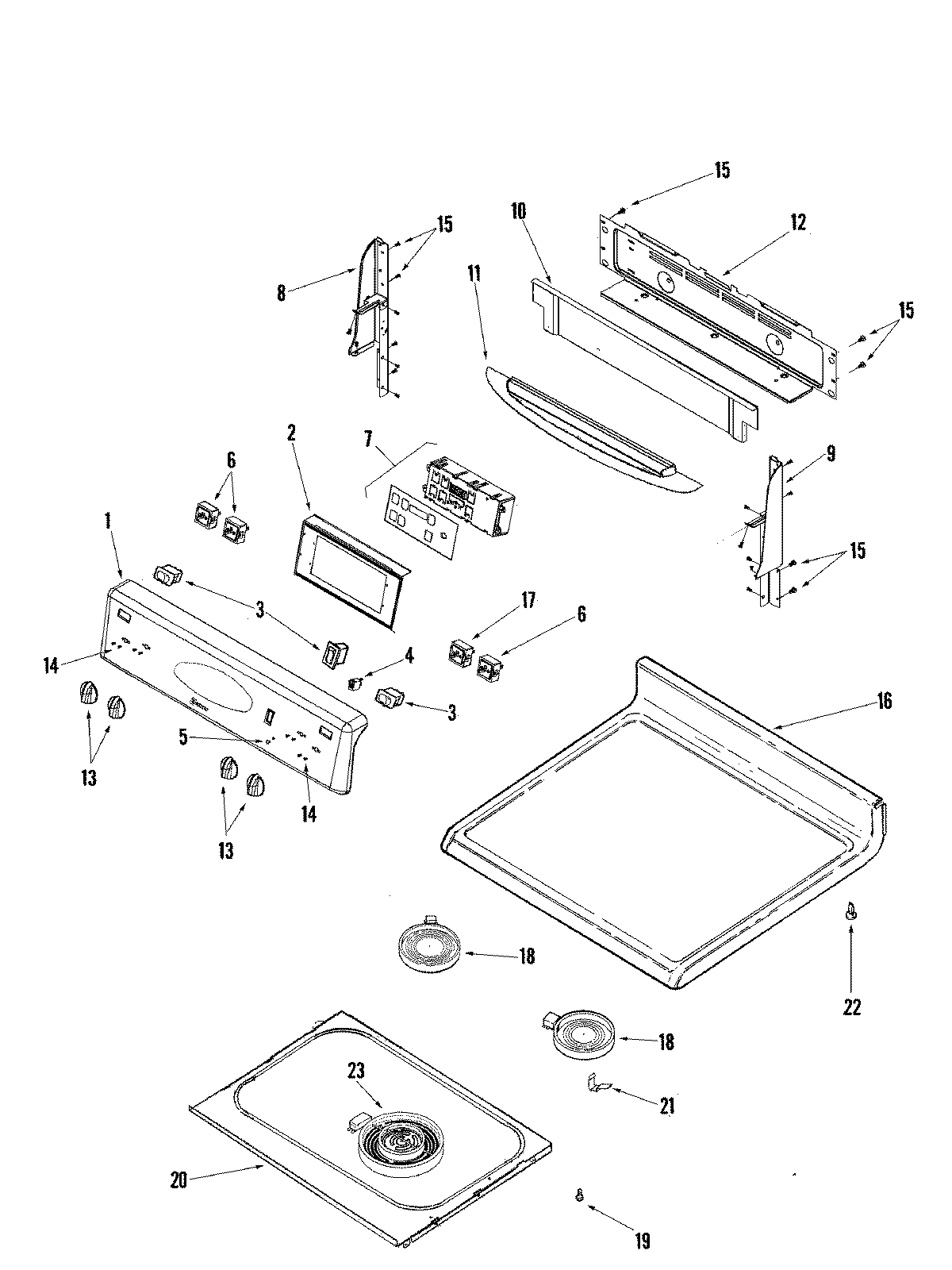

MER5765QAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009160
2	BRACKET, CLOCK
3	WP74010226 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	WP5701M717-60 Whirlpool Electronic Control Board
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009206
10	MAY 74008726
11	MAY 74009203
11	MAY 74008728
12	MAY 74008836
12	MAY 74008730
13	WP74008947 Whirlpool Knob White
14	SCREW
16	MAY 74008540
17	WP74008940 Whirlpool Infinite Switch
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
