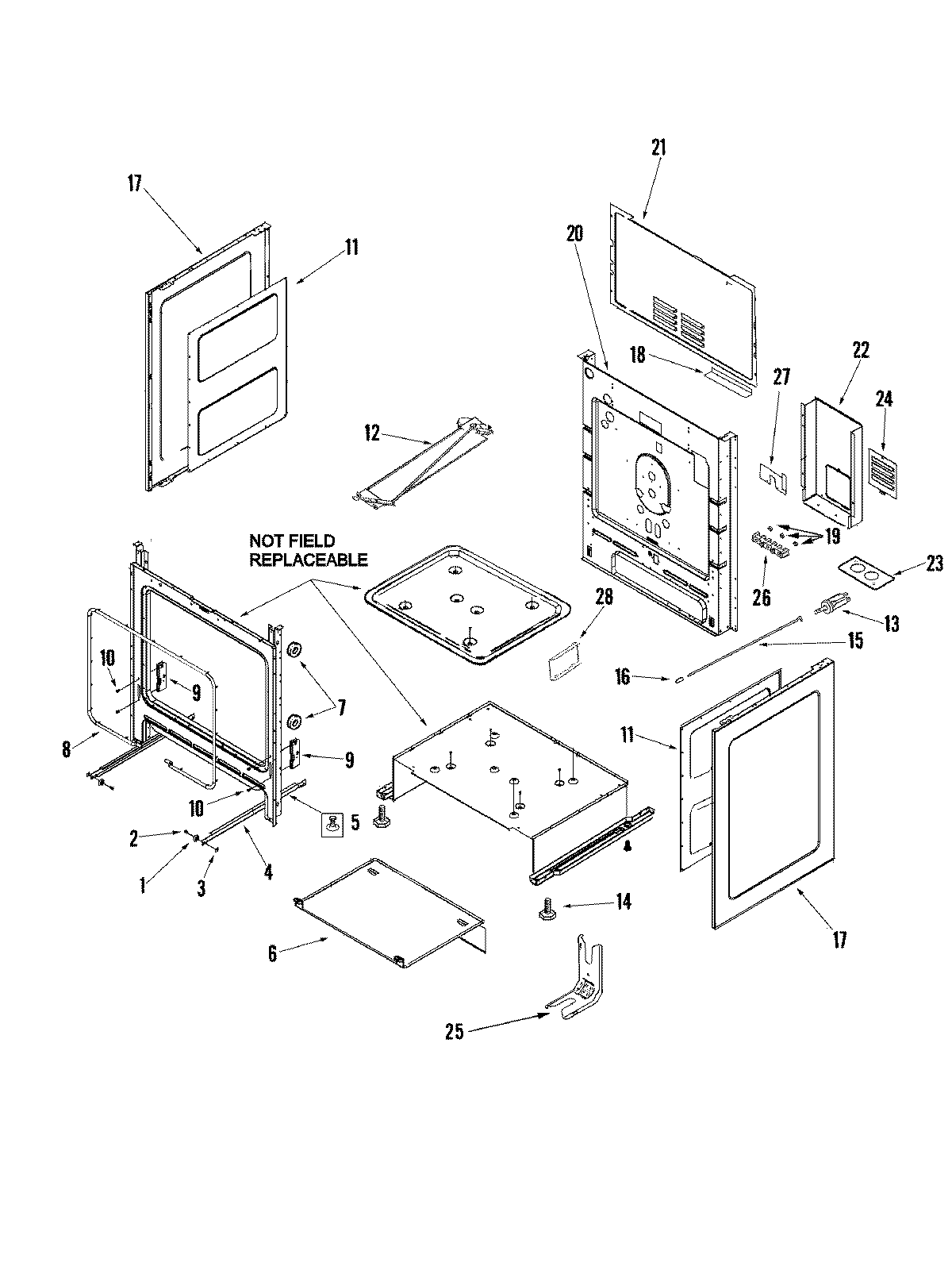

MER5765RAB 01 – CABINET

MER5765RAB 01 – CABINET

Written by

in

MER5765RAB 01 – CABINET

Products

PositionProduct
1WP74004078 Whirlpool Door Roller
2SHAFT, STORAGE DRAWER ROLLER
374005230 Whirlpool Oven Lock Nut (8-32)
4RUNNER, SERVICE DRAWER
5MAY 74008688
6MAY 74008689
7SCREW W/SHOULDER (No.8)
7SPACER, SIDE PANEL
8W11562931 Whirlpool Door Gasket
9WP74010551 Whirlpool Receiver
10WP4159193 Whirlpool Screw
11MAY 3804F316-51
11MAY 74008701
12MAY 74008702
1274003975 Whirlpool Screw P1 (8ABX3/8-BLK)
12MAY 8002P104-60
13MAY 74008704
1374008703 Whirlpool Door Switch
14W11665456 Whirlpool Range Level Foot
1474008835 Whirlpool Clip Retainer
15MAY 74008706
15SLEEVE, ROD TUBE
1674008707 Whirlpool Oven Bumper
17MAY 7002P494-60
17MAY 74008710
18SCREW
18BOTTOM, WIRE COVER
19WP7103P027-60 Whirlpool Nut
20MAY 74008699
21COVER, MAIN WIRE (ELE)
22MAY 74008760
23PLATE, CONDUIT REINFORCEMENT
24MAY 74008340
25WP7101P485-60 Whirlpool Anchor Tip
25WP3801F656-51 Whirlpool Range Anti-Tip Bracket
26WPW10245259 Whirlpool Terminal Block
27INSULATOR, POWER CORD
28BRACKET, OVEN SUPPORT
