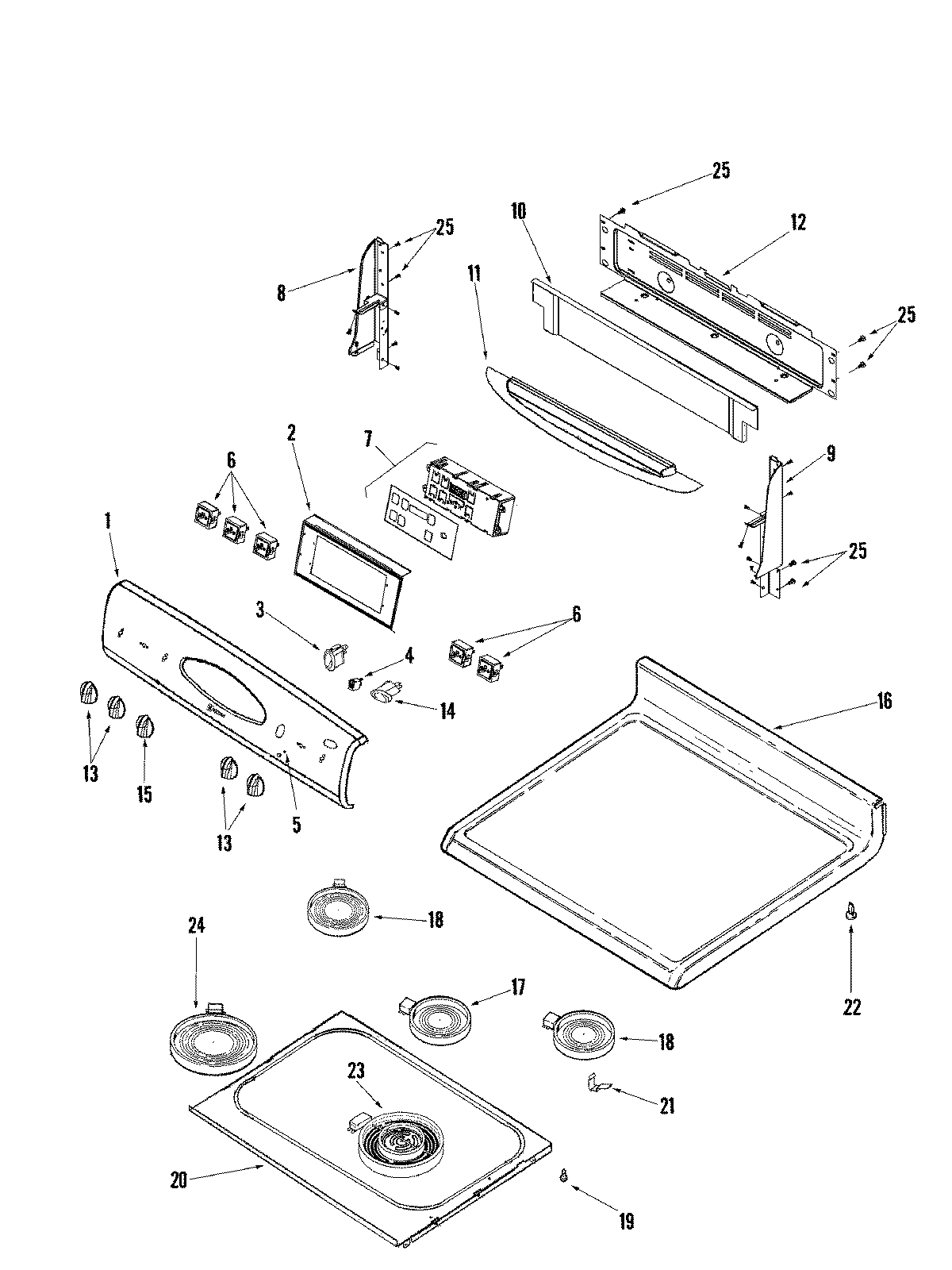

MER5765RAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011180
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	MAY W10177711
6	Switch, Infinte (Dual (RF) (1))
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	SCREW
6	WP7403P239-60 Whirlpool Oven Switch
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	MAY 74006589
7	WP5701M719-60 Whirlpool Electronic Control Board
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009444
11	MAY 74009202
12	MAY 74008836
12	MAY 74010983
13	MAY 74008945
15	74008948 Whirlpool Oven Black Knob
16	MAY 74011152
17	Element, Warm
17	MAY 74011676
17	MAY 74008898
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	74007134 Whirlpool Oven Spring Element Support
22	74008761 Whirlpool Spacer Snap-In
23	W10823713 Whirlpool Surface Element
24	W10823696 Whirlpool Radiant Surface Element
25	SCREW
