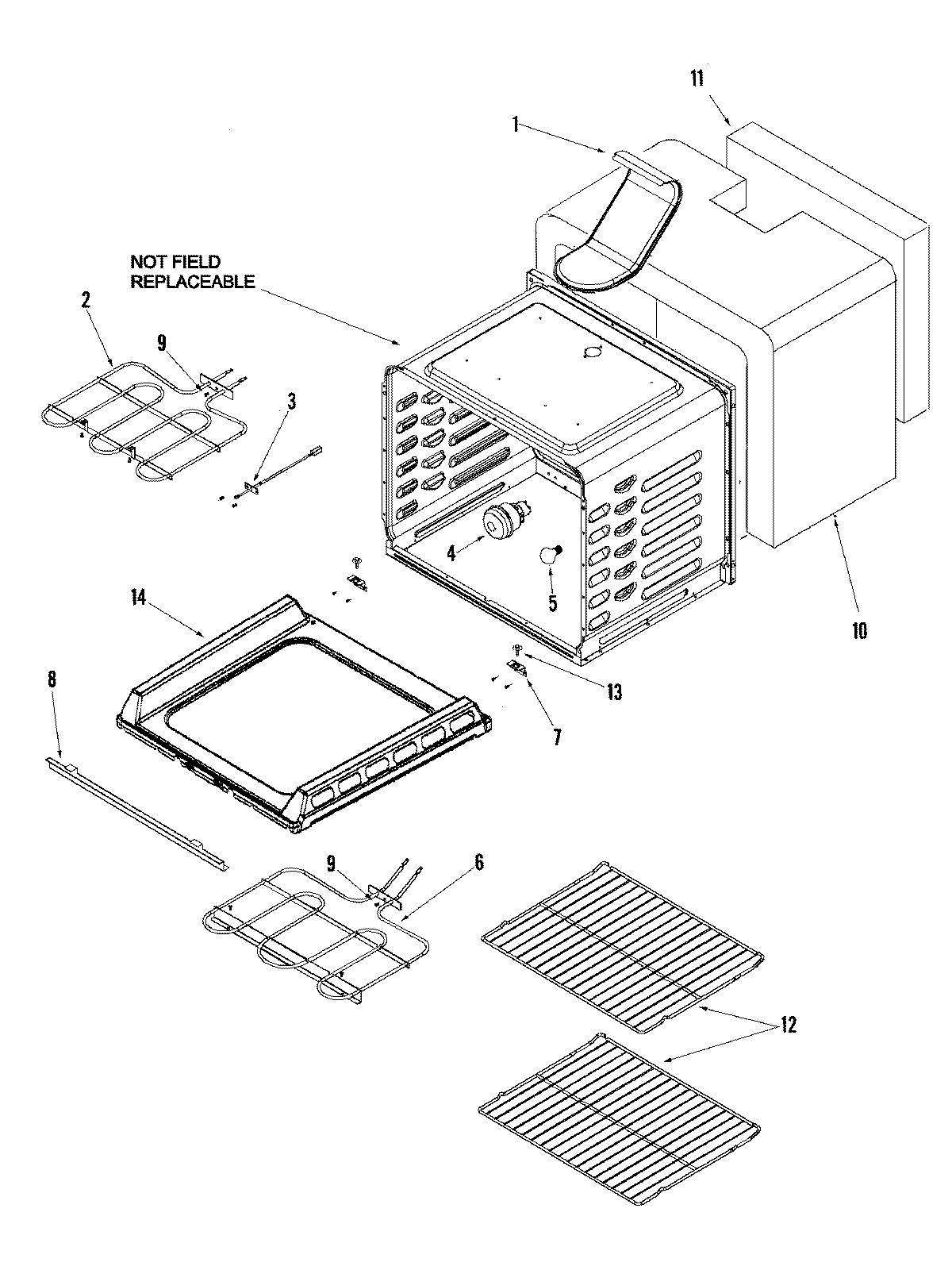

MER5765RAQ 02 – CAVITY

MER5765RAQ 02 – CAVITY

Written by

in

MER5765RAQ 02 – CAVITY

Products

PositionProduct
1MAY 74008691
2WP74008692 Whirlpool Bake Element
312001656 Whirlpool Range Oven Temperature Sensor
4MAY 71001867
4WP74011278 Whirlpool Light
5RANGE ONLY 40W 120V APPL BULB
6WPW10276482 Whirlpool Bake Element
7SUPPORT, OVEN BOTTOM (REAR)
8SUPPORT, OVEN BOTTOM (FRONT)
9SCREW
10INSULATION, WRAPPER
11MAY 74008698
12WP74008763 Whirlpool Oven Rack
13WP74003976 Whirlpool Screw
14WPW10211368 Whirlpool Oven Bottom
