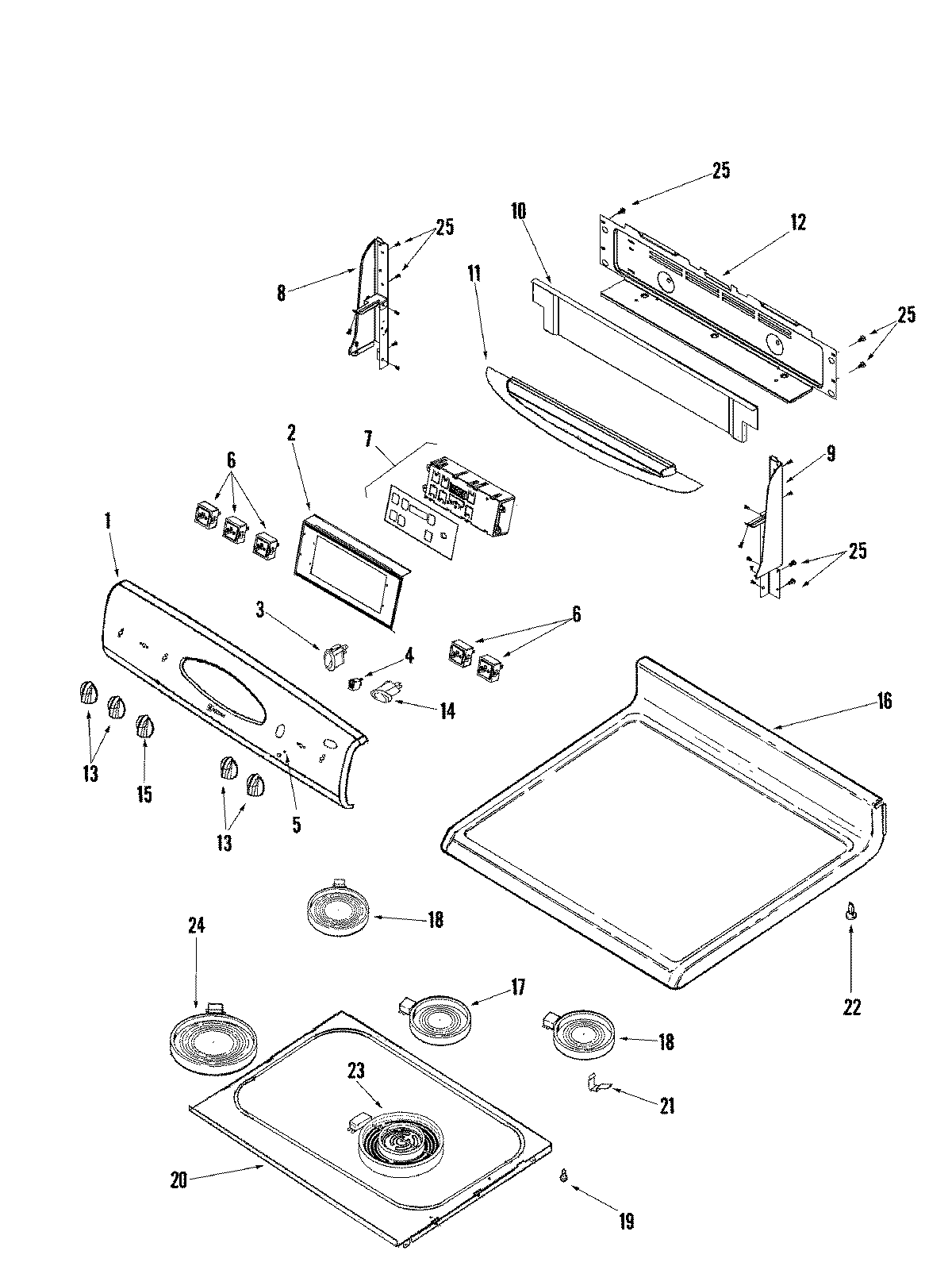

MER5765RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

MER5765RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5765RAQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011182
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6Switch, Infinte (Dual (RF) (1))
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6MAY 74006589
6MAY W10177711
6SCREW
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7MAY 74009212
8END CAP (RT-BSQ)
9END CAP (LT-BSQ)
10MAY 74009444
11SHIELD, HEAT VISOR (BSQ)
12MAY 74010983
12MAY 74008836
1374008946 Whirlpool Oven Bisque Knob
15MAY 74008949
16MAY 74011151
17Element, Warm
17MAY 74011676
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23W10823713 Whirlpool Surface Element
24W10823696 Whirlpool Radiant Surface Element
25SCREW
