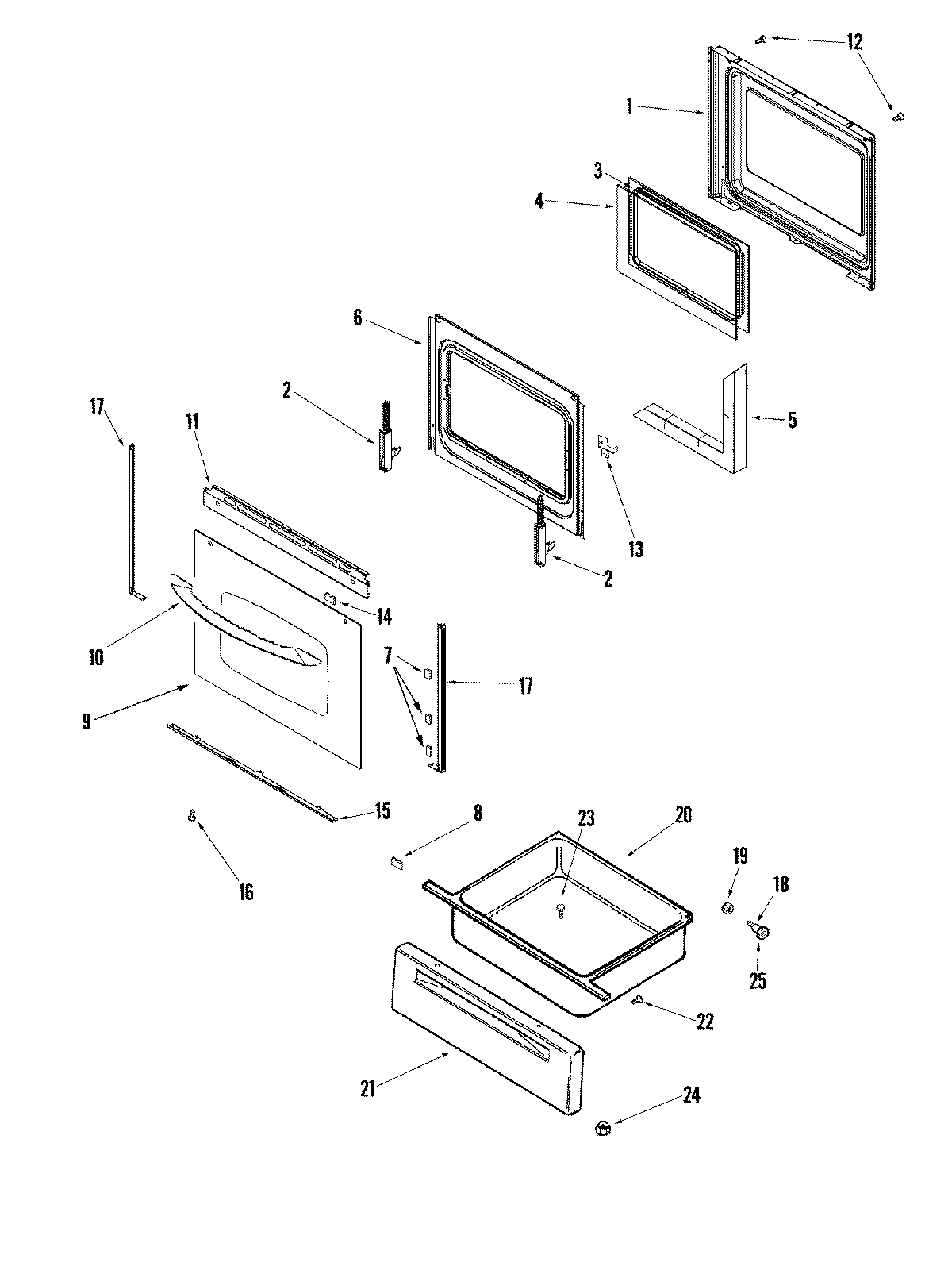

MER5765RAQ 04 – DOOR/DRAWER

MER5765RAQ 04 – DOOR/DRAWER

Written by

in

MER5765RAQ 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7WP74009014 Whirlpool Double Tape
8GLASS, DOOR
9GLASS, DOOR (BSQ)
10WP74011768 Whirlpool Door Handle
10WP74011778 Whirlpool Door Handle
11WP74009541 Whirlpool Screw Assembly
11TRIM, TOP (BSQ)
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (LT)
13BRACKET, DOOR HANDLE (RT)
1374008946 Whirlpool Oven Bisque Knob
13WPY706189 Whirlpool Stove Screw
147403P984-60 Whirlpool RO Switch
14WP74004224 Whirlpool Tape
15MAY 74008949
15TRIM, BOTTOM (BSQ)
16MAY 74011151
17MAY 74008898
17MAY 74011676
17Element, Warm
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 3405F037-80
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
21PLATE, PANEL MTG.
2274008761 Whirlpool Spacer Snap-In
23W10823713 Whirlpool Surface Element
25SCREW
