MER5765RAS 04 – DOOR/DRAWER (STL)

MER5765RAS 04 – DOOR/DRAWER (STL)

Written by

in

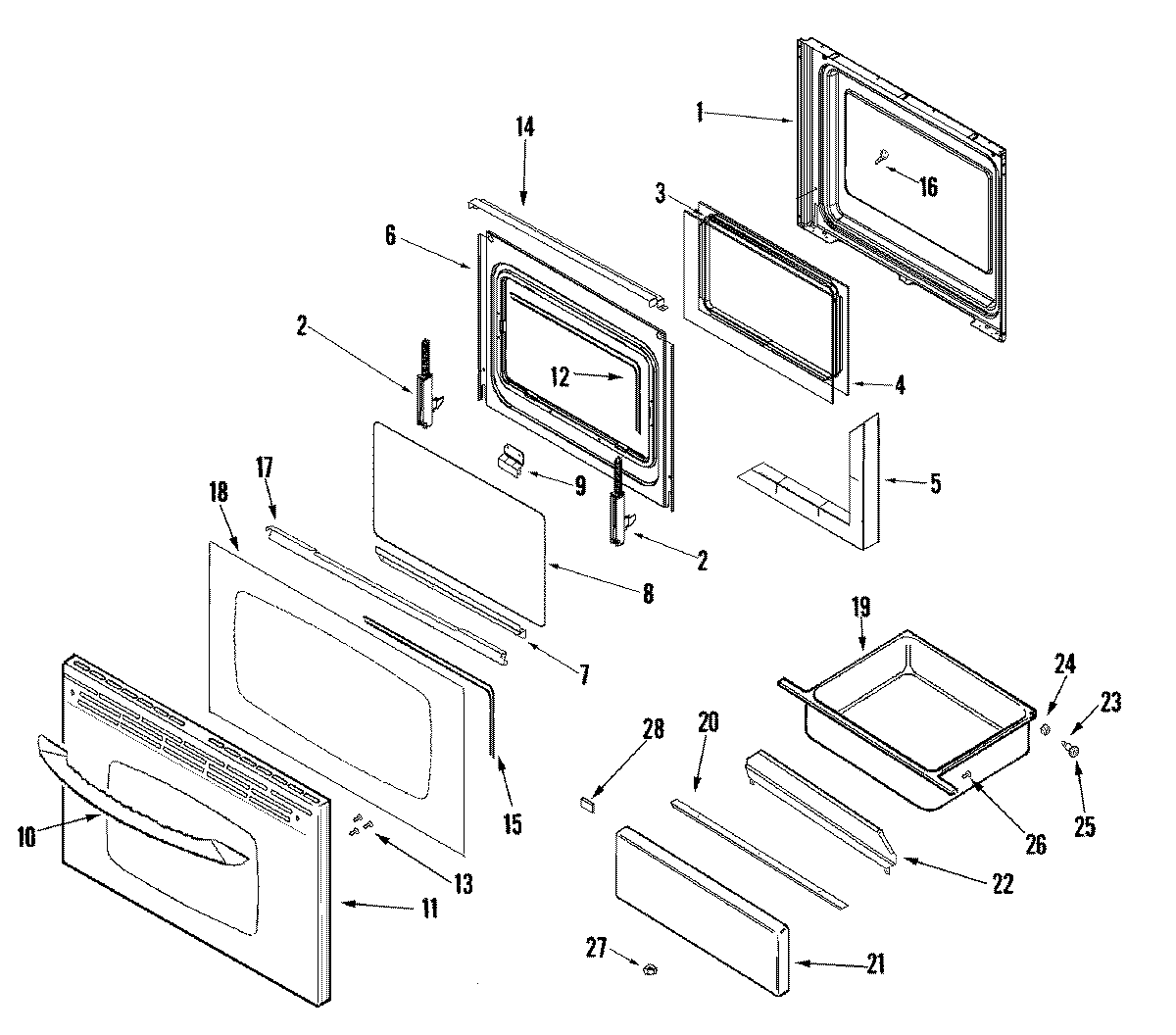

MER5765RAS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3WPY706189 Whirlpool Stove Screw
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10WP7701P526-60 Whirlpool Door Handle
11MAY 74008951
12Gasket, Window
13WP74006515 Whirlpool Washer Screw
13MAY 74011772
14Baffel, Door
17Element, Warm
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19MAY 3405F037-80
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
21PANEL, DRAWER (STL-ELEC)
21PLATE, PANEL MTG.
2274008761 Whirlpool Spacer Snap-In
22WP3604F390-51 Whirlpool Shield
23SHAFT, STORAGE DRAWER ROLLER
23W10823713 Whirlpool Surface Element
24W10823696 Whirlpool Radiant Surface Element
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
26SCREW
27WP488130 Whirlpool Air Conditioner Nut
28WP74005546 Whirlpool RU Spacer
