MER5765RAW 03 – CONTROL PANEL/TOP ASSEMBLY

MER5765RAW 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

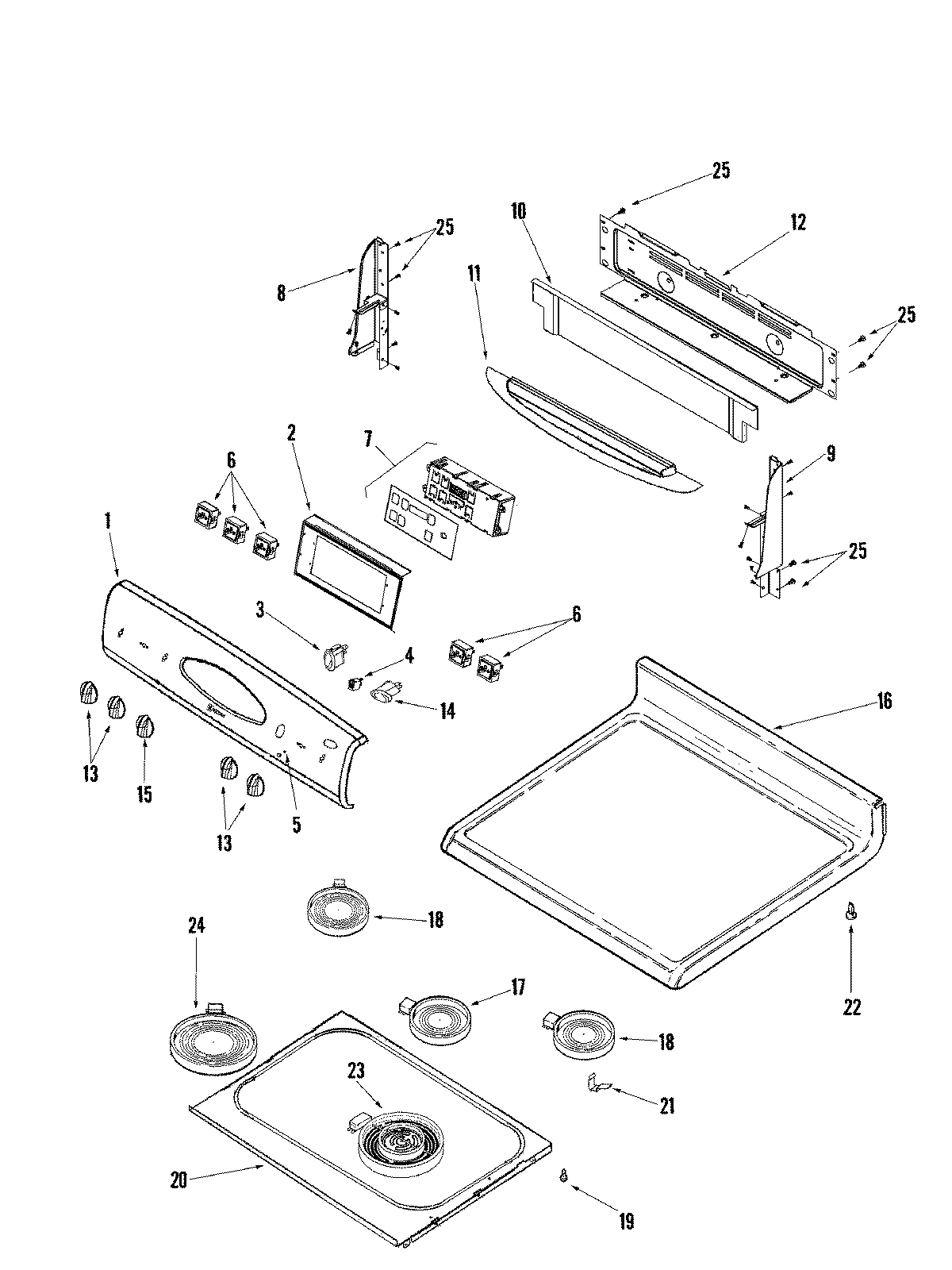

MER5765RAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011181
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6SCREW
6WP7403P239-60 Whirlpool Oven Switch
6MAY 74006589
6Switch, Infinte (Dual (RF) (1))
6MAY W10177711
7WP5701M717-60 Whirlpool Electronic Control Board
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009444
11MAY 74009203
12MAY 74010983
12MAY 74008836
13WP74008947 Whirlpool Knob White
1574008950 Whirlpool Knob White/Chrome
16MAY 74011150
17Element, Warm
17MAY 74011676
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23W10823713 Whirlpool Surface Element
24W10823696 Whirlpool Radiant Surface Element
25SCREW
