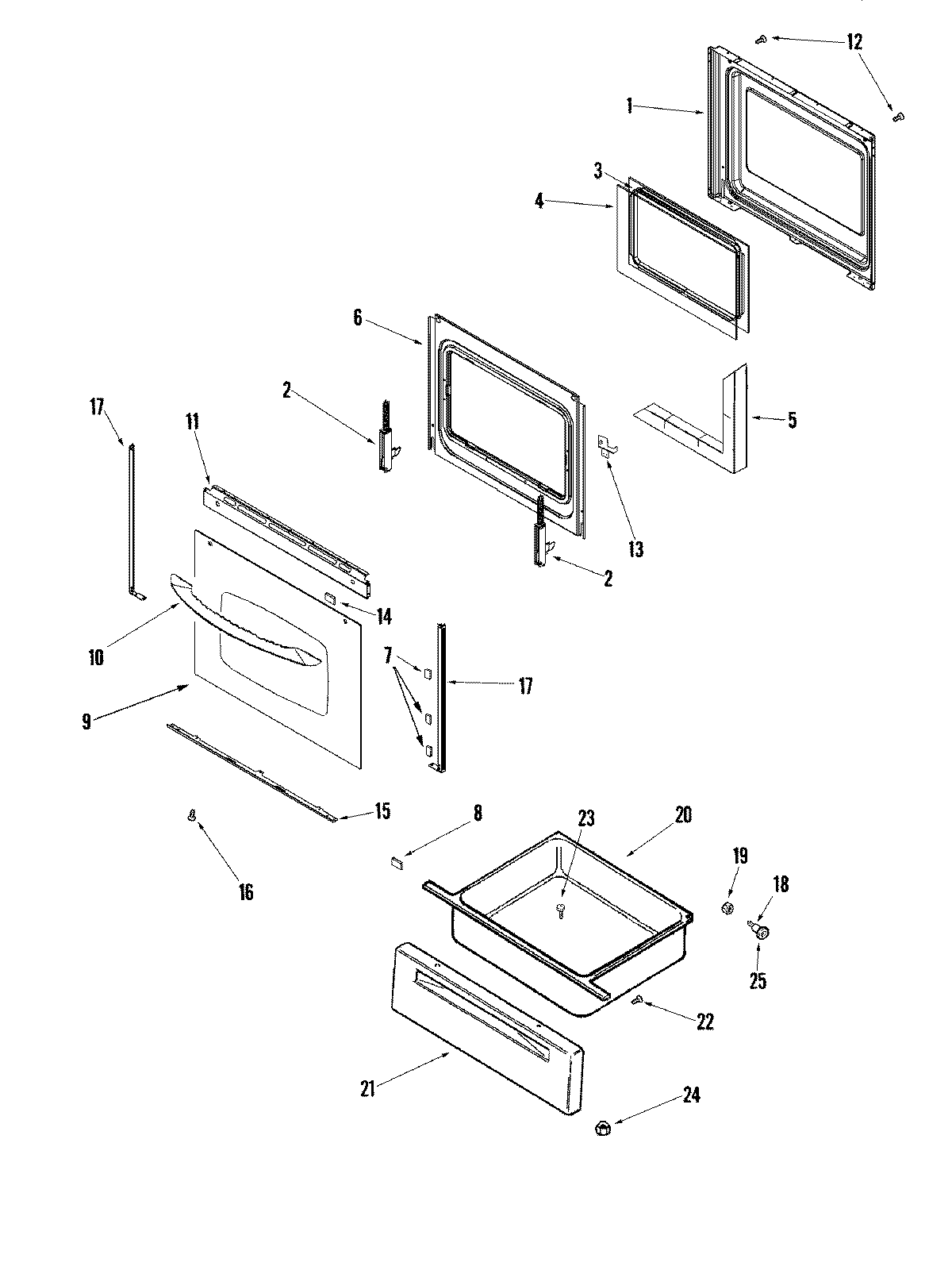

MER5765RAW 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	WP74009014 Whirlpool Double Tape
8	GLASS, DOOR
9	Glass, Door (White)
10	WP74011778 Whirlpool Door Handle
10	WP74011768 Whirlpool Door Handle
11	WP98008544 Whirlpool Screw Assembly
11	Trim, Door Top (White)
12	WP74006515 Whirlpool Washer Screw
13	BRACKET, DOOR HANDLE (LT)
13	BRACKET, DOOR HANDLE (RT)
13	WPY706189 Whirlpool Stove Screw
14	WP74004224 Whirlpool Tape
15	WP3608F092-71 Whirlpool Bottom Trim
16	SCREW (10-24X5/16-NI)
16	MAY 74011150
17	MAY 74008898
17	MAY 74011676
17	Element, Warm
17	MAY 74010561
18	WP74005546 Whirlpool RU Spacer
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	PLATE, PANEL MTG.
21	74007134 Whirlpool Oven Spring Element Support
22	74008761 Whirlpool Spacer Snap-In
23	W10823713 Whirlpool Surface Element
24	W10823696 Whirlpool Radiant Surface Element
25	SCREW
