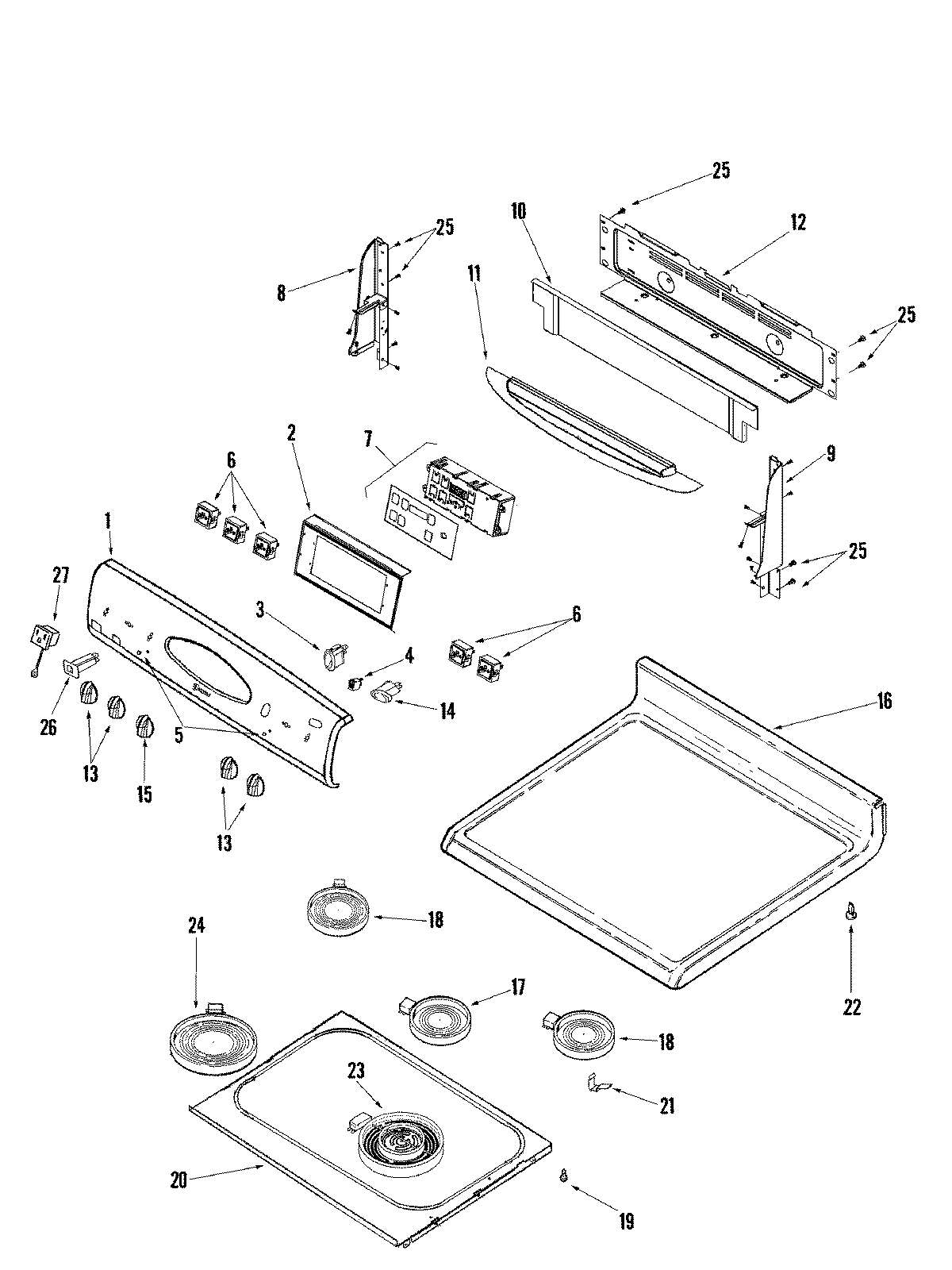

MER5765RCB 03 – CONTROL PANEL/TOP ASSEMBLY

MER5765RCB 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5765RCB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011261
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6MAY W10177711
6Switch, Infinte (Dual (RF) (1))
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6MAY 74006589
6SCREW
6WP7403P239-60 Whirlpool Oven Switch
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7WP5701M719-60 Whirlpool Electronic Control Board
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74009444
11MAY 74009202
12MAY 74010983
12MAY 74008836
13MAY 74008945
1574008948 Whirlpool Oven Black Knob
16MAY 74011152
17MAY 74011676
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23W10823713 Whirlpool Surface Element
24W10823696 Whirlpool Radiant Surface Element
25SCREW
26MAY 71003070
27MAY 71003068
