MER5765RCB1 04 – DOOR PARTS
Written by
in

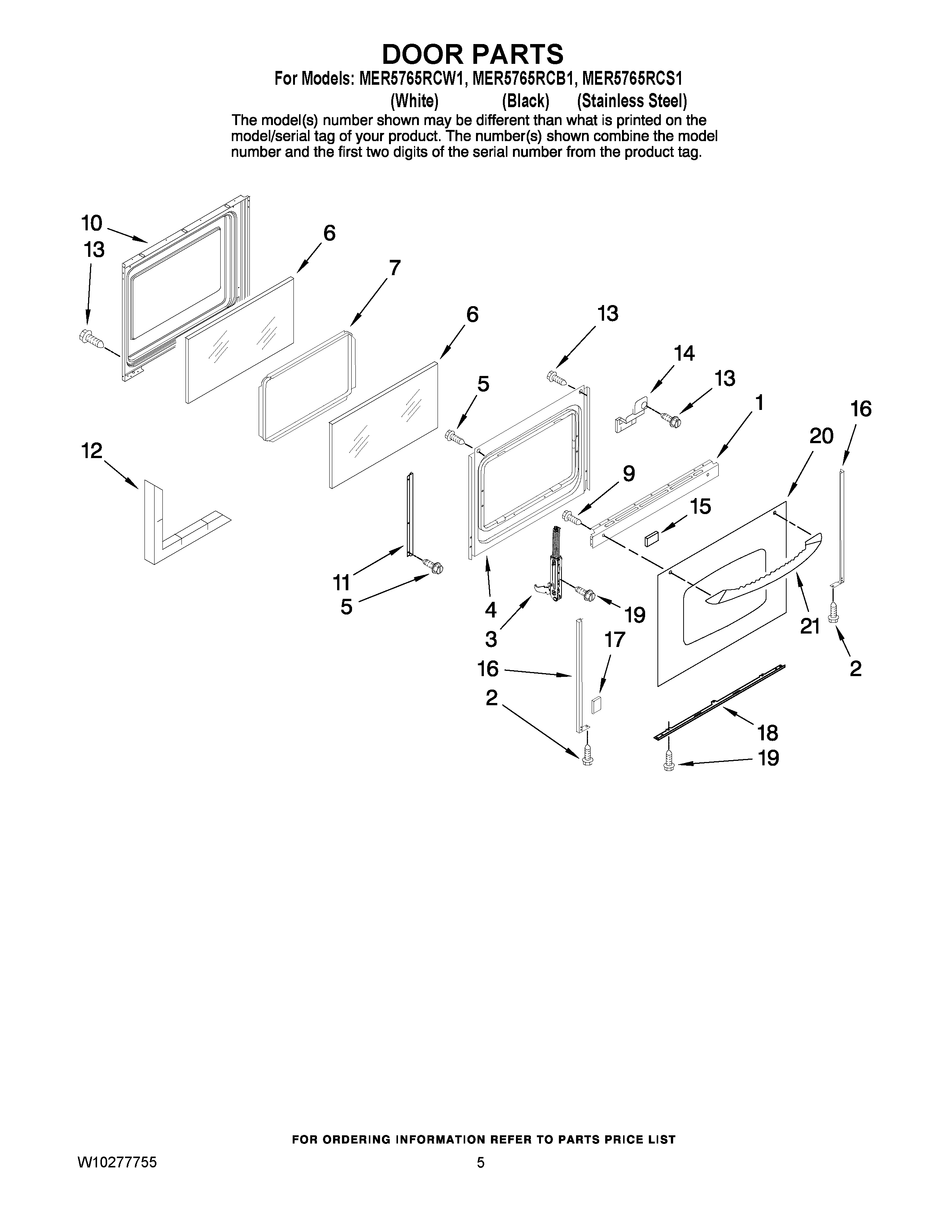

MER5765RCB1 04 – DOOR PARTS
Products
Position
Product
1
MAY 3608F104-71
1
MAY 3608F140-70
2
MAY 3196557
2
Screw (Black)
3
MAY 7106P124-60
4
Retainer, Side
6
Glass, Inner
9
MAY 7101P681-60
10
MAY 2402W297-19
11
BRACKET, INNER GLASS
12
MAY 7002P246-60
13
SCREW
14
MAY 3801P858-45
14
MAY 3801P857-45
15
Tape (White)
16
MAY 3608F126-61
16
MAY 3608F126-70
17
Tape, Double Sided (White)
17
MAY W10208307
18
MAY 3608P092-70
18
MAY 3602P092-71
19
SCREW (10-24X5/16-NI)
20
GLASS, DOOR (WHITE)
20
MAY 7902P791-60
21
MAY 7701P517-60
21
MAY 7701P516-60
21
HANDLE, DOOR (STAINLESS)
←
