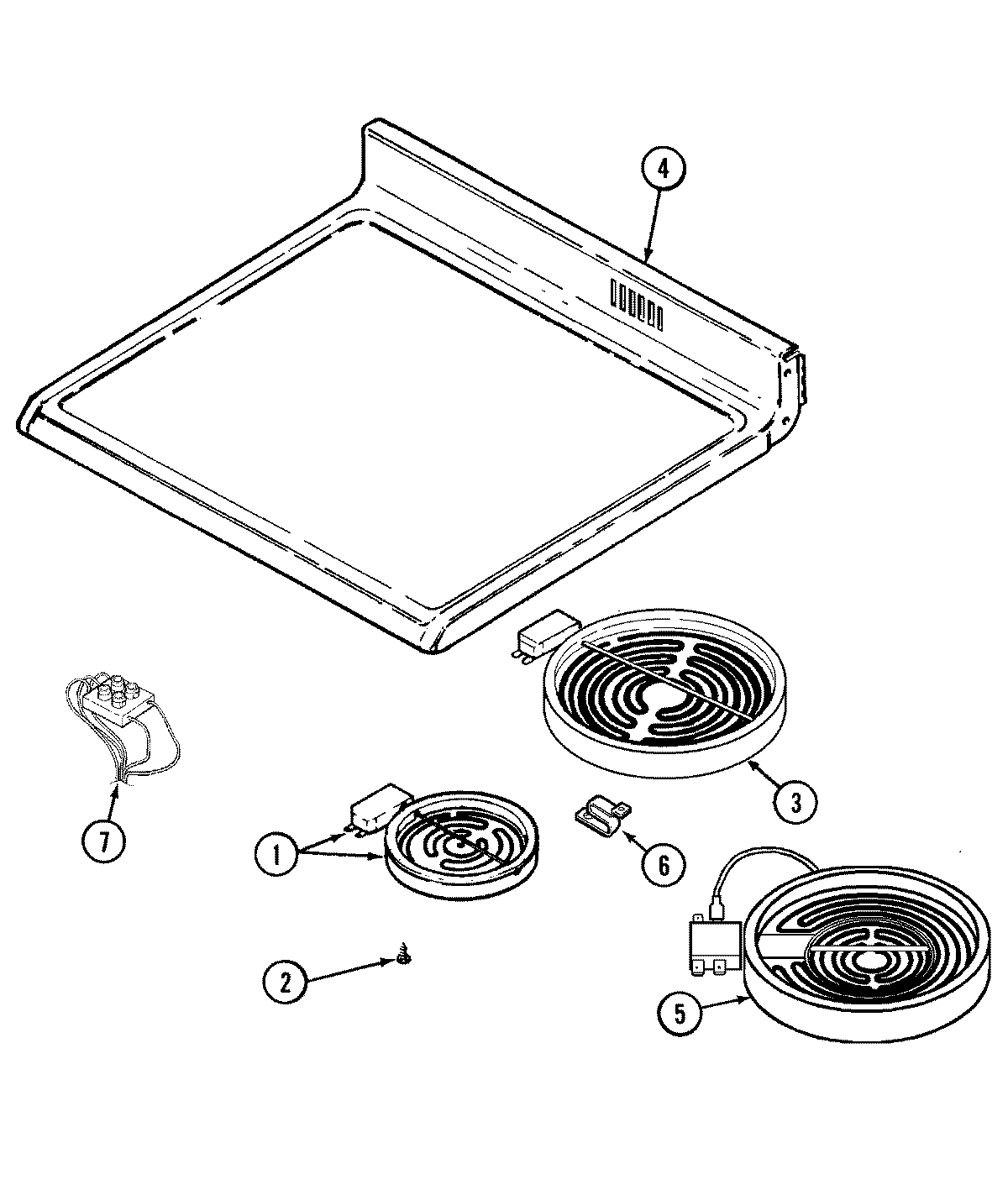

MER5770AAB 05 – TOP ASSEMBLY

MER5770AAB 05 – TOP ASSEMBLY

Written by

in

MER5770AAB 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
2SCREW (6ABX.25-ZN)
3W10823707 Whirlpool Range Radiant Surface Element 8"
3MAY 74002652
3MAY 74004494
4MAY 74003687
4W11189172 Whirlpool Glide Drawer
5MAY 74002667
5W10823703 Whirlpool Surface Element
5MAY 74004880
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
68004P093-60 Whirlpool Support C
7MAY 74003589
