MER5770ACQ 05 – TOP ASSEMBLY

MER5770ACQ 05 – TOP ASSEMBLY

Written by

in

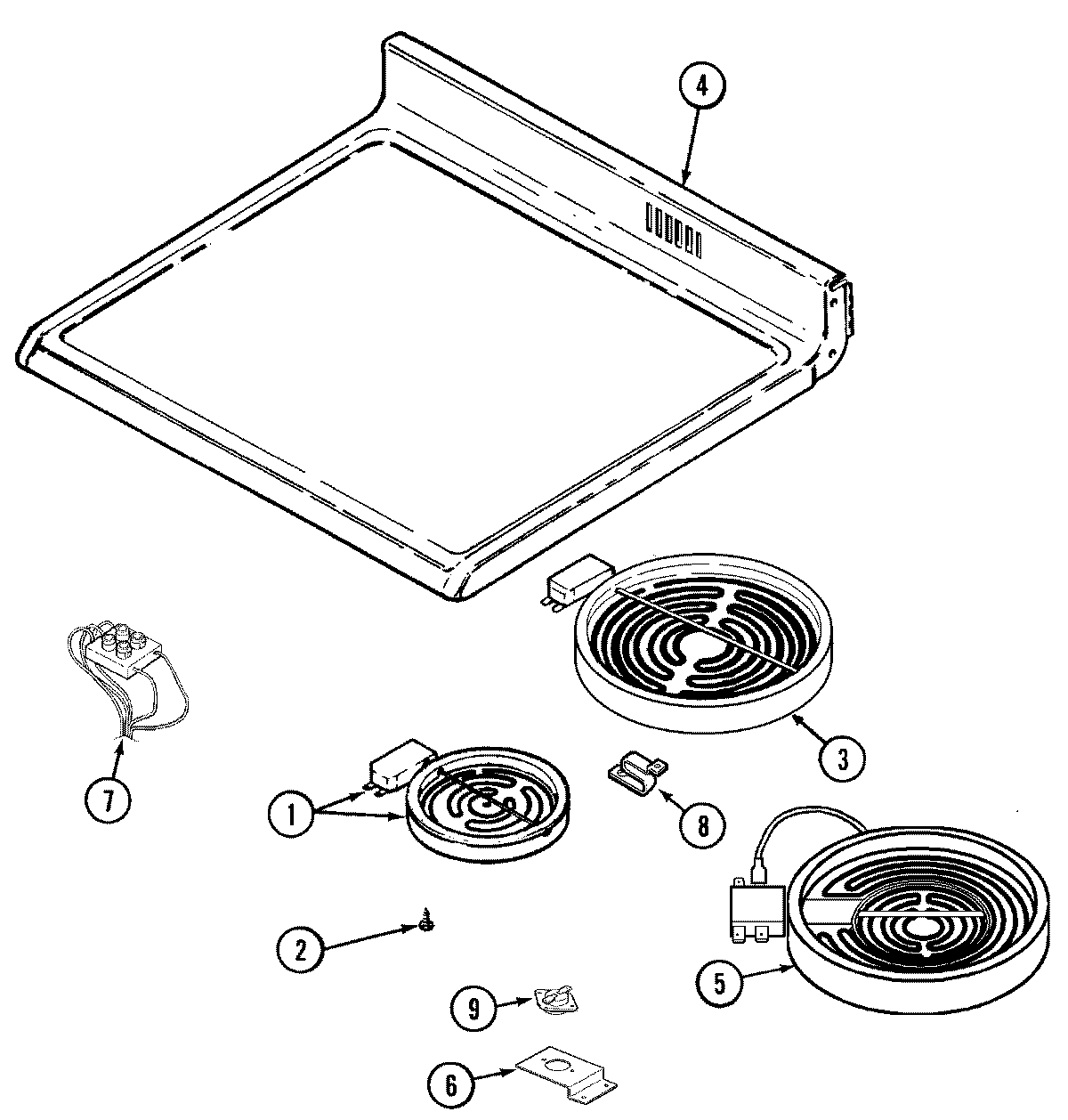

MER5770ACQ 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
3MAY 74004494
3W10823697 Whirlpool Surface Element
4W11189172 Whirlpool Glide Drawer
4WA906B Whirlpool Cooktop Glass Scraper
4W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
4MAY 74005180
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
5MAY 74004880
6MAY 71003077
7MAY 71003078
88004P093-60 Whirlpool Support C
9SCREW (6ABX.25-ZN)
9MAY 71003076
