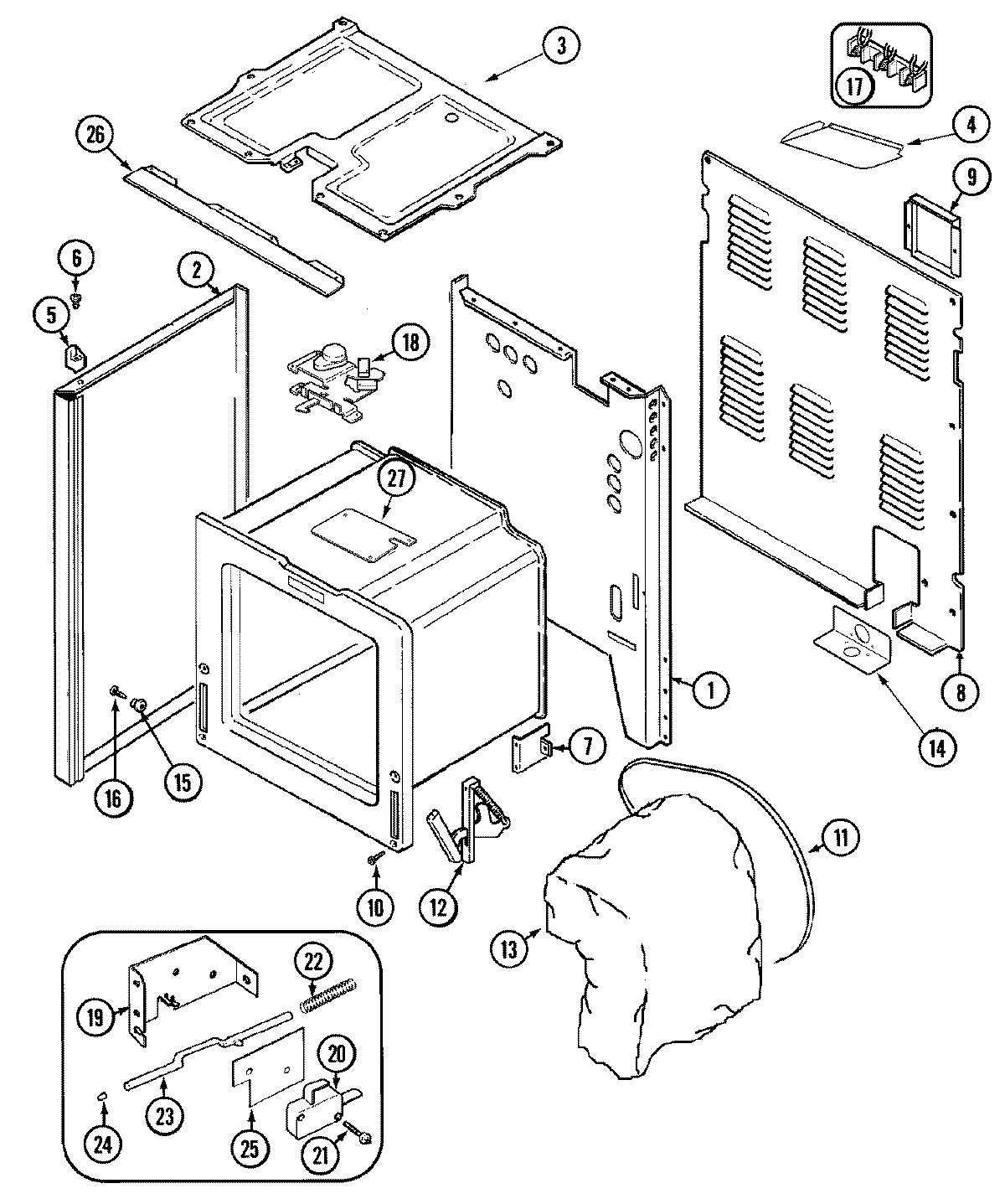

| 1 | MAY 74006322 |
| 1 | GROMMET |
| 2 | MAY 74004965 |
| 3 | MAY 74006384 |
| 3 | MAY 74007366 |
| 3 | MAY 74007367 |
| 4 | MAY 74006581 |
| 4 | SCREW (8BX3/8-NI) |
| 5 | SPACER, MAIN TOP (RT) |
| 5 | SPACER, MAIN TOP (LT) |
| 6 | SCREW |
| 7 | SUPPORT,OVEN REAR |
| 8 | MAY 74003241 |
| 9 | MAY 4005F427-51 |
| 10 | SCREW (10-24X5/16-NI) |
| 11 | MAY 74003385 |
| 12 | HINGE-OVEN DOOR |
| 13 | WP74010942 Whirlpool Insulation |
| 13 | MAY 74005771 |
| 14 | W10190166 Whirlpool Service Bracket |
| 15 | MAY 8004P024-60 |
| 16 | W11693756 Whirlpool Screw Assembly |
| 16 | MAY 74001449 |
| 17 | WP7103P027-60 Whirlpool Nut |
| 17 | SCREW (10ABX1.0-ZN) |
| 17 | WPW10245259 Whirlpool Terminal Block |
| 18 | MAY 74005575 |
| 18 | MAY 74007722 |
| 19 | BRACKET, SWITCH ACTUATOR |
| 19 | WPY706189 Whirlpool Stove Screw |
| 20 | MAY 74001802 |
| 21 | MAY 912012 |
| 23 | ROD, DOOR LIGHT SWITCH |
| 24 | MAY 74001631 |
| 25 | MAY 74001872 |
| 26 | MAY 74003384 |
| 27 | MAY 74006590 |
| 27 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 27 | MAY 74005496 |
