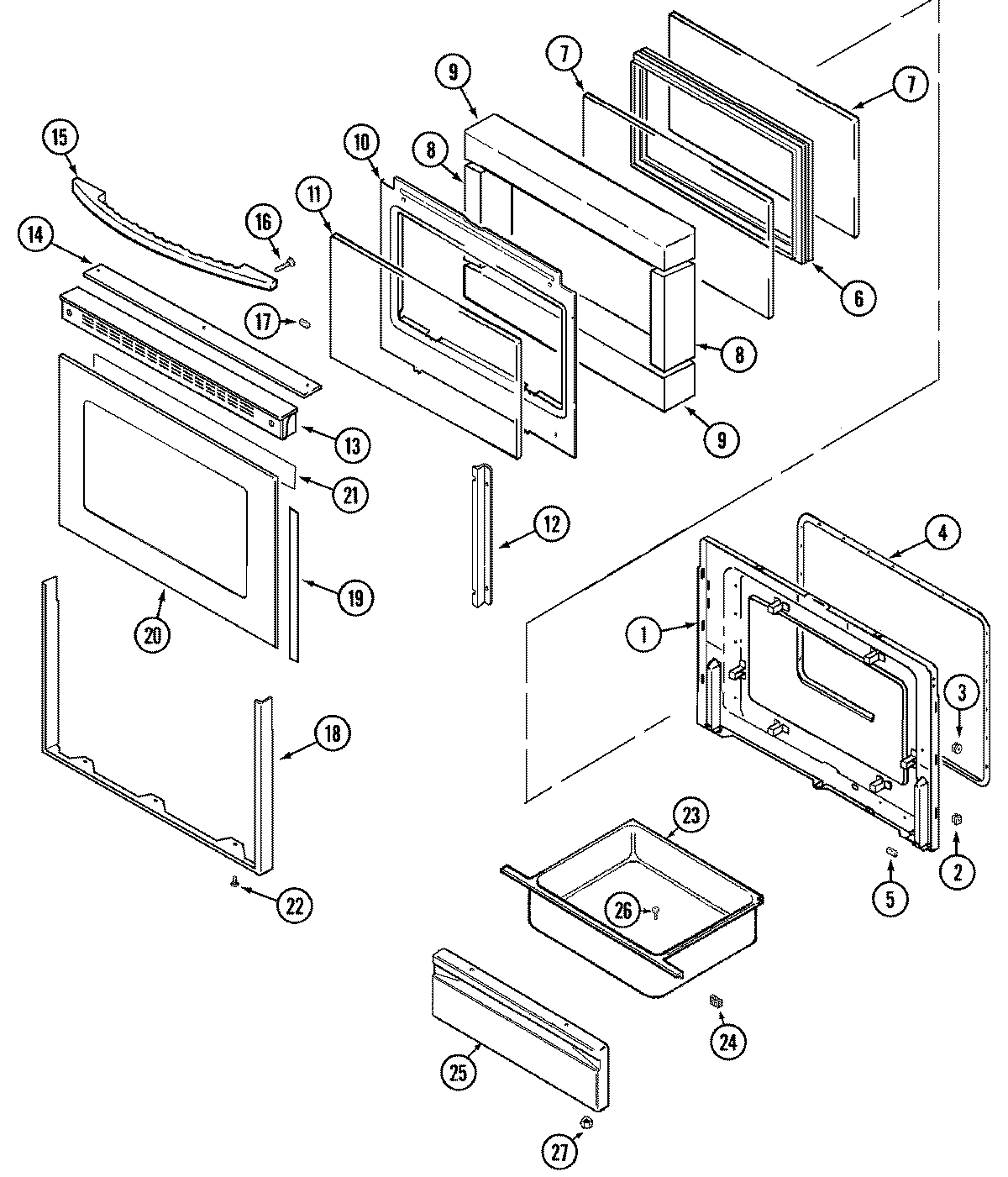

MER5770BCB 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	WP74005546 Whirlpool RU Spacer
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	MAY 74003646
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74006403
13	MAY 74006402
15	MAY 74006286
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	WP98008545 Whirlpool Screw
18	MAY 74004324
19	MAY 74003660
20	MAY 74006406
21	TAPE, FOIL 29“ X 2“
22	SCREW
23	MAY 71003042
24	WP854334 Whirlpool Air Conditioner Sealing Strip
25	MAY 74003689
26	WP7101P072-60 Whirlpool Screw
27	WPW10131078 Whirlpool Nut Assembly
