MER5770BCQ 03 – DOOR/DRAWER

MER5770BCQ 03 – DOOR/DRAWER

Written by

in

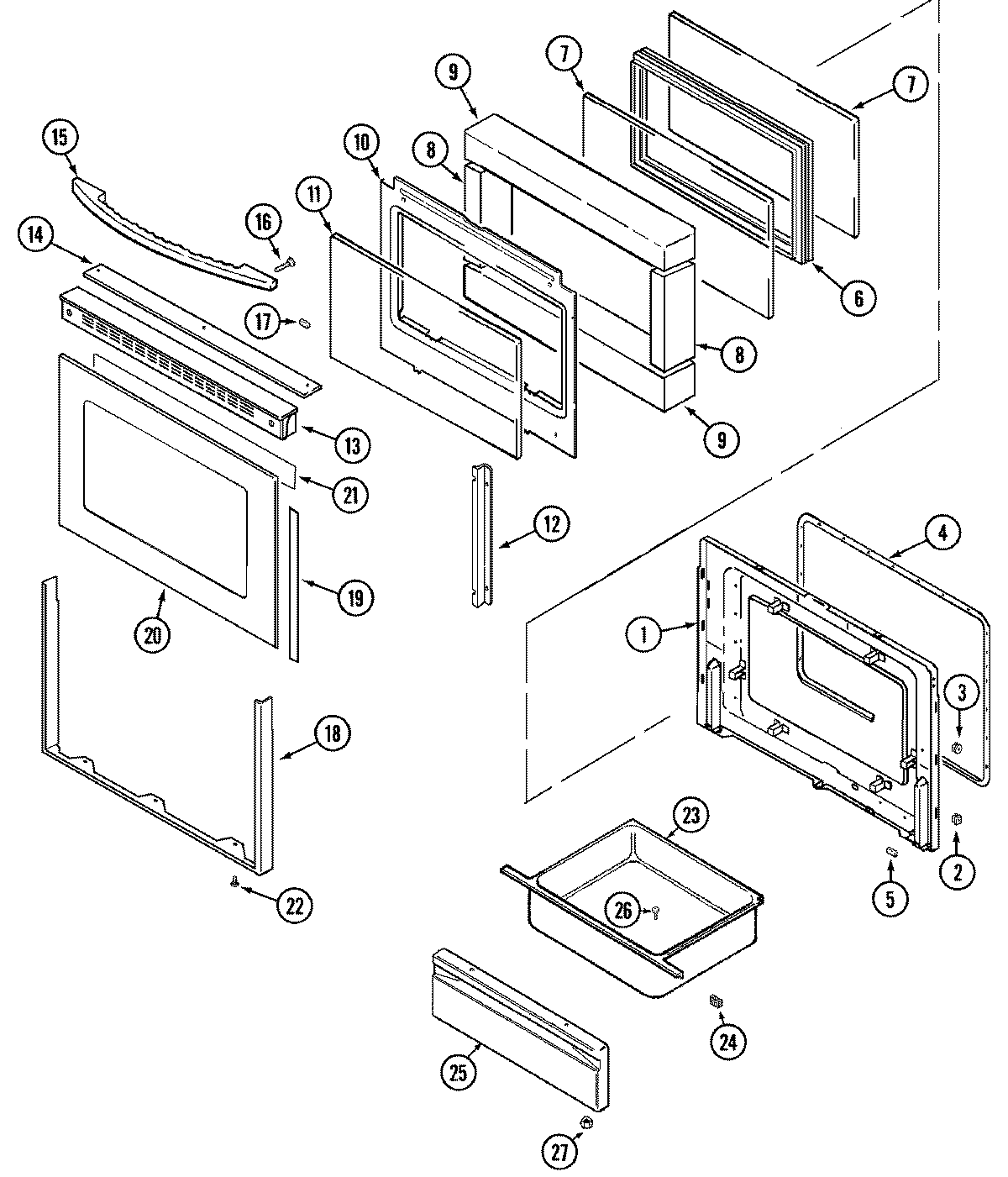

MER5770BCQ 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5WP74005546 Whirlpool RU Spacer
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8MAY 74003646
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13MAY 74006403
14MAY 74004978
15MAY 74006377
16WP179051 Whirlpool Screw
17MAY 71002092
18MAY 74005162
18WP74009541 Whirlpool Screw Assembly
19MAY 74003660
20MAY 74006405
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 71003042
24WP854334 Whirlpool Air Conditioner Sealing Strip
25MAY 74005055
26WP7101P072-60 Whirlpool Screw
27WPW10131078 Whirlpool Nut Assembly
