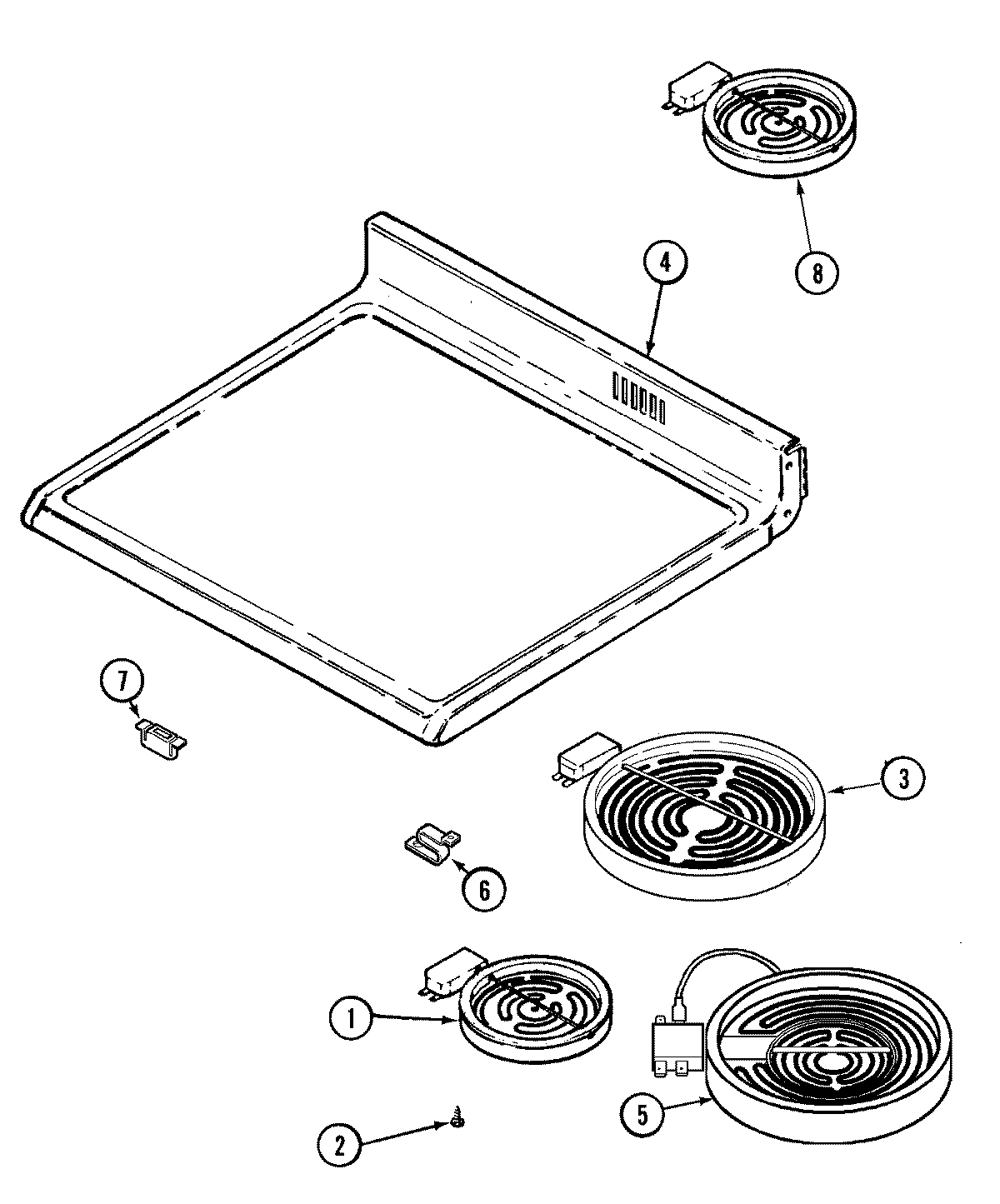

MER5770BCW 06 – TOP ASSEMBLY

MER5770BCW 06 – TOP ASSEMBLY

Written by

in

MER5770BCW 06 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
2SCREW (6ABX.25-ZN)
3W10823697 Whirlpool Surface Element
4MAY 74006478
4MAY 20001100
4MAY 20001099
4W11189172 Whirlpool Glide Drawer
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
68004P093-60 Whirlpool Support C
7MAY 74006388
8WP8523700 Whirlpool Surface Element
