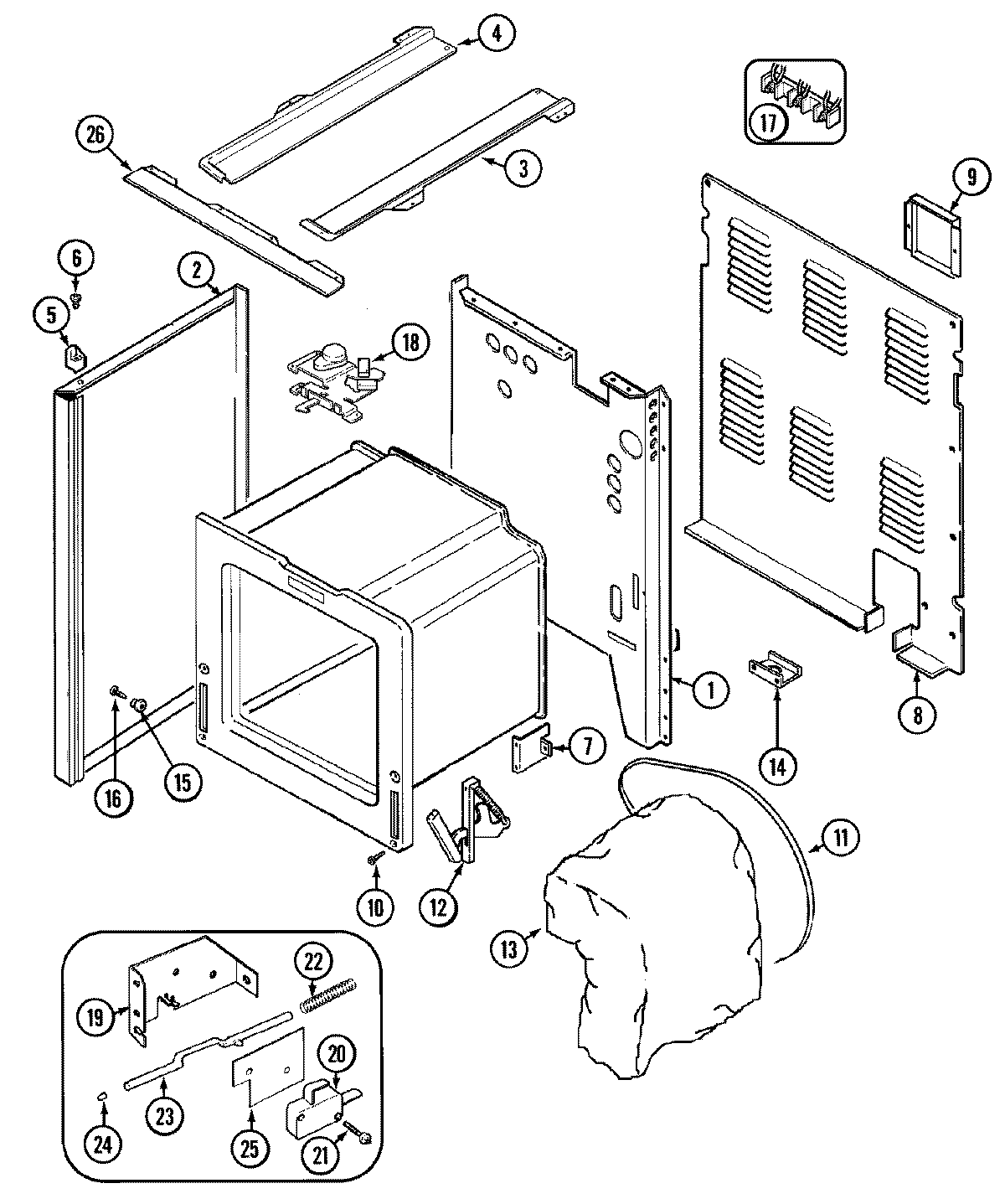

MER5775AAB 01 – BODY

Products

Position	Product
1	MAY 74001772
2	MAY 74003283
2	TAPE, FOIL (3“ WIDE)
3	MAY 74003378
4	MAY 74003379
5	SPACER, MAIN TOP (RT)
5	SPACER, MAIN TOP (LT)
6	MAY 7101P313-60
7	SUPPORT,OVEN REAR
8	MAY 74003241
9	MAY 4005F427-51
9	SCREW
10	SCREW (10-24X5/16-NI)
11	MAY 74003385
12	HINGE-OVEN DOOR
13	MAY 74003381
13	WP74010942 Whirlpool Insulation
14	W10190166 Whirlpool Service Bracket
15	MAY 8004P024-60
16	MAY 74001449
16	W11693756 Whirlpool Screw Assembly
17	WPW10245259 Whirlpool Terminal Block
18	MAY 74003560
18	MAY 74005575
18	MAY 74003559
18	MAY 74003561
19	WPY706189 Whirlpool Stove Screw
19	BRACKET, SWITCH ACTUATOR
20	MAY 74001802
21	MAY 7101P330-60
23	ROD, DOOR LIGHT SWITCH
24	MAY 74001631
25	MAY 74001872
26	MAY 74003384
