MER5775AAB 03 – DOOR/DRAWER

MER5775AAB 03 – DOOR/DRAWER

Written by

in

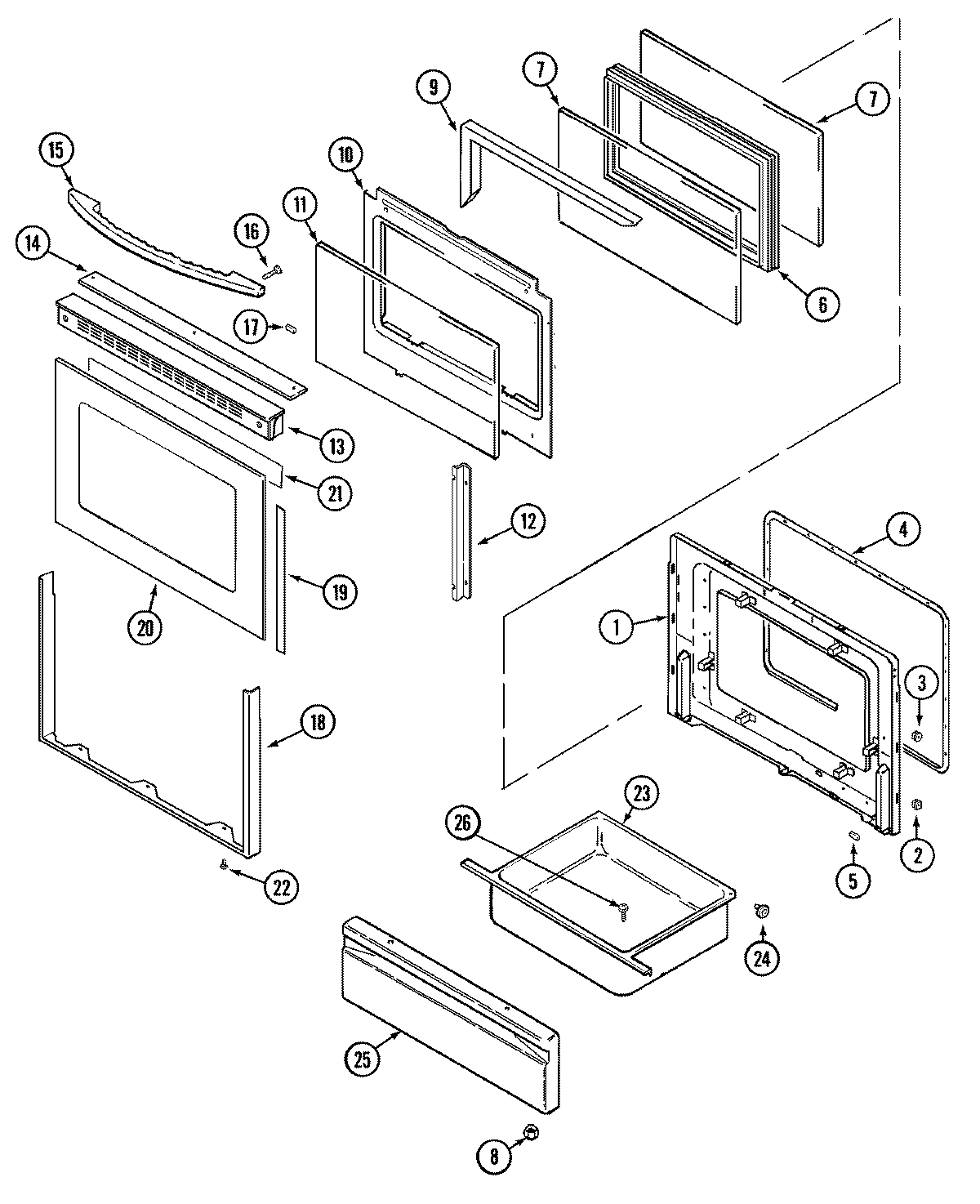

MER5775AAB 03 – DOOR/DRAWER

Products

PositionProduct
1MAY 74003642
2MAY 74003643
3NUT, SNAP (ROUND-WHT)
3NUT, SNAP (ROUND-BLK)
4GASKT-DOOR OVEN
5MAY 8010P085-60
6FRAME, GLASS
774003645 Whirlpool Range Oven Door Inner Glass
8WPW10131078 Whirlpool Nut Assembly
9INSULATION, OVEN DOOR
10MAY 74003648
11GLASS, DOOR
12MAY 74003650
13WP74003652 Whirlpool Door Trim
15MAY 74003617
16WP179051 Whirlpool Screw
17MAY 71002092
18MAY 74003658
18MAY 74004324
18SCREW (8ABX1/2“-BLK)
19MAY 74003660
20MAY 74003662
21TAPE, FOIL 29“ X 2“
22SCREW
23MAY 74003618
24MAY 74004079
24WP488130 Whirlpool Air Conditioner Nut
24WP74004078 Whirlpool Door Roller
25MAY 74003689
