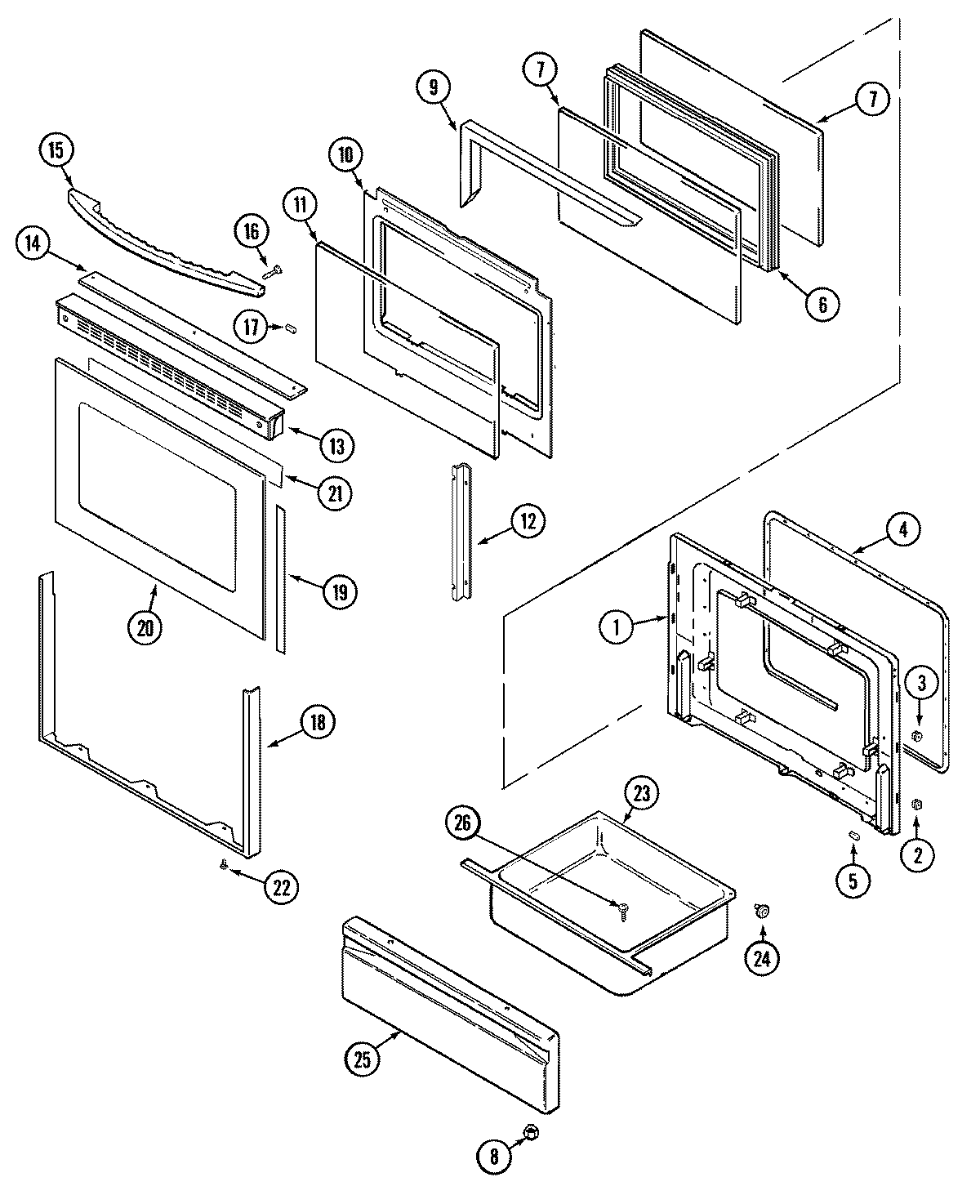

MER5775AAQ 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 74003642
2	MAY 74003643
3	NUT, SNAP (ROUND-WHT)
3	NUT, SNAP (ROUND-BLK)
4	GASKT-DOOR OVEN
5	MAY 8010P085-60
6	FRAME, GLASS
7	74003645 Whirlpool Range Oven Door Inner Glass
8	WPW10131078 Whirlpool Nut Assembly
9	INSULATION, OVEN DOOR
10	MAY 74003648
11	GLASS, DOOR
12	MAY 74003650
13	MAY 74005006
14	MAY 74004978
15	MAY 74004974
16	WP179051 Whirlpool Screw
17	MAY 71002092
18	MAY 74005162
18	WP74009541 Whirlpool Screw Assembly
19	MAY 74003660
20	MAY 74005008
21	TAPE, FOIL 29`` X 2``
22	SCREW
23	MAY 74003618
24	MAY 74004079
24	WP74004078 Whirlpool Door Roller
24	WP488130 Whirlpool Air Conditioner Nut
25	MAY 74005055
