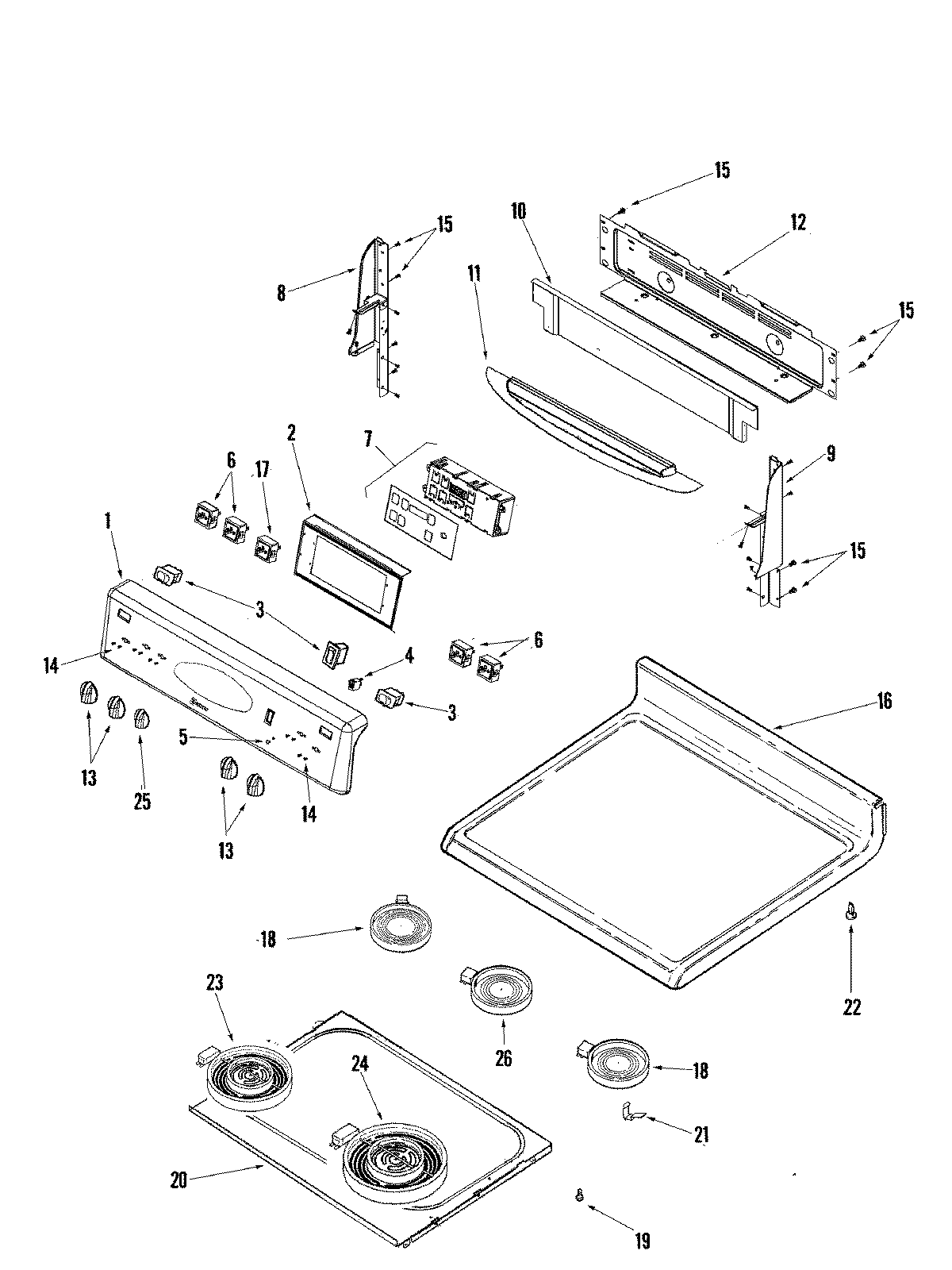

MER5775QAB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009167
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74009223
7	MAY 74008655
8	End Cap (Left Black)
9	End Cap (Right Black)
10	MAY 74008725
10	MAY 74009205
11	MAY 74009202
11	MAY 74008891
12	MAY 74008836
12	MAY 74010804
13	MAY 74008945
14	SCREW
16	MAY 74008546
17	MAY 74006589
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823713 Whirlpool Surface Element
25	74008948 Whirlpool Oven Black Knob
26	MAY 74008898
