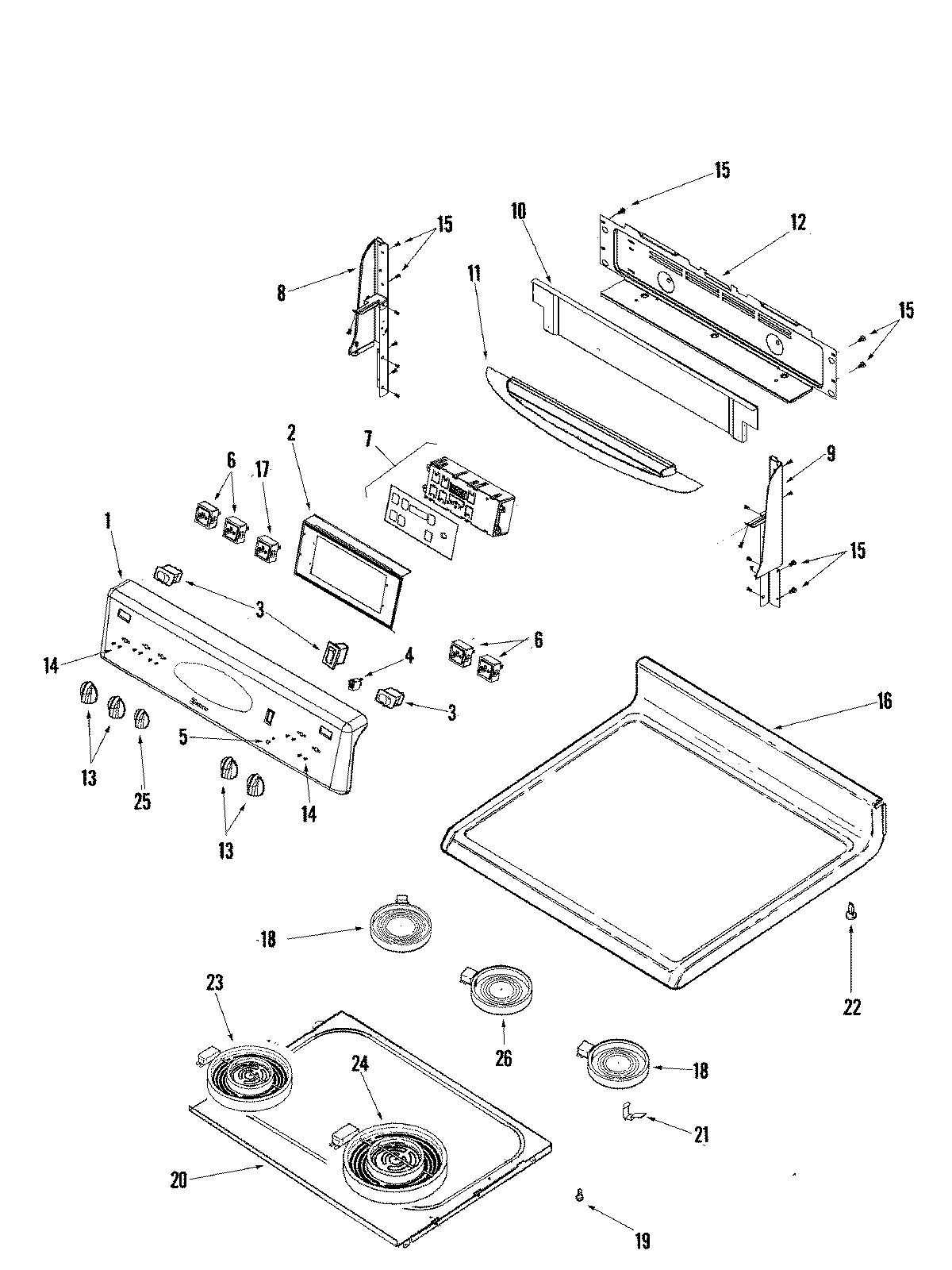

MER5775QAN 03 – CONTROL PANEL/TOP ASSEMBLY

MER5775QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5775QAN 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009169
2BRACKET, CLOCK
37403P984-60 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74008654
7MAY 74009222
8END CAP (LT-BSQ)
9END CAP (RT-BSQ)
10MAY 74008727
10MAY 74009207
11MAY 74008729
11SHIELD, HEAT VISOR (BSQ)
12MAY 74010804
12MAY 74008836
1374008946 Whirlpool Oven Bisque Knob
14SCREW
16MAY 74008547
17MAY 74006589
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823713 Whirlpool Surface Element
25MAY 74008949
26MAY 74008898
