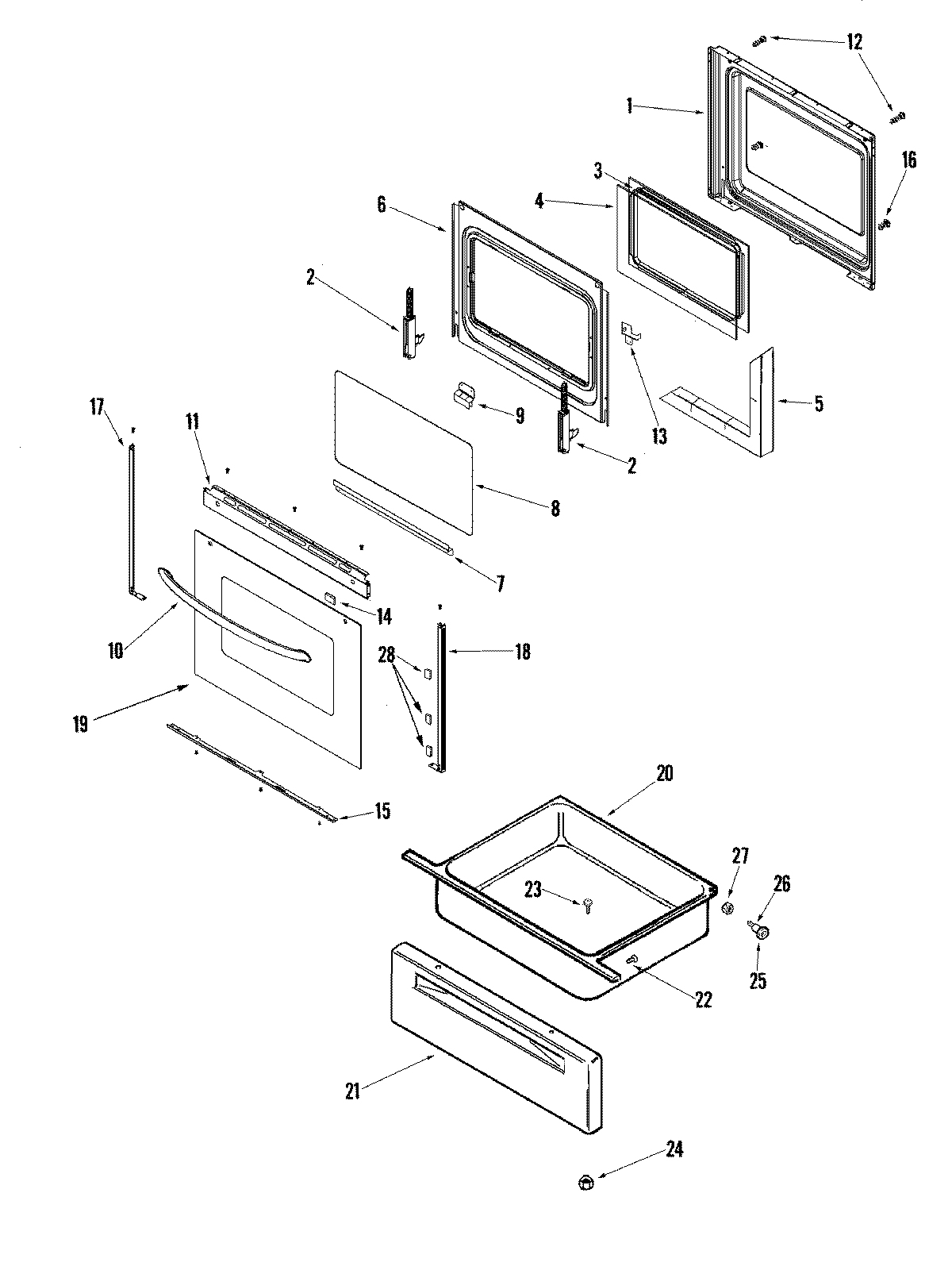

MER5775QAQ 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008742
2	74010546 Whirlpool Range Oven Door Hinge
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
7	MAY 74008745
8	GLASS, DOOR
9	Trim, Door Top (Black)
10	WP74011778 Whirlpool Door Handle
11	TRIM, TOP (BSQ)
11	WP74009541 Whirlpool Screw Assembly
12	WP74006515 Whirlpool Washer Screw
13	MAY 74008750
13	MAY 74008749
14	WP74004224 Whirlpool Tape
15	TRIM, BOTTOM (BSQ)
16	SCREW (10-24X5/16-NI)
17	MAY 74008754
18	TRIM, SIDE (BSQ)
18	MAY 74008752
19	GLASS, DOOR (BSQ)
20	MAY 74008337
21	MAY 74008756
22	SCREW
23	WP7101P072-60 Whirlpool Screw
24	WPW10131078 Whirlpool Nut Assembly
25	WP74004078 Whirlpool Door Roller
26	SHAFT, STORAGE DRAWER ROLLER
27	WP488130 Whirlpool Air Conditioner Nut
28	WP74009014 Whirlpool Double Tape
