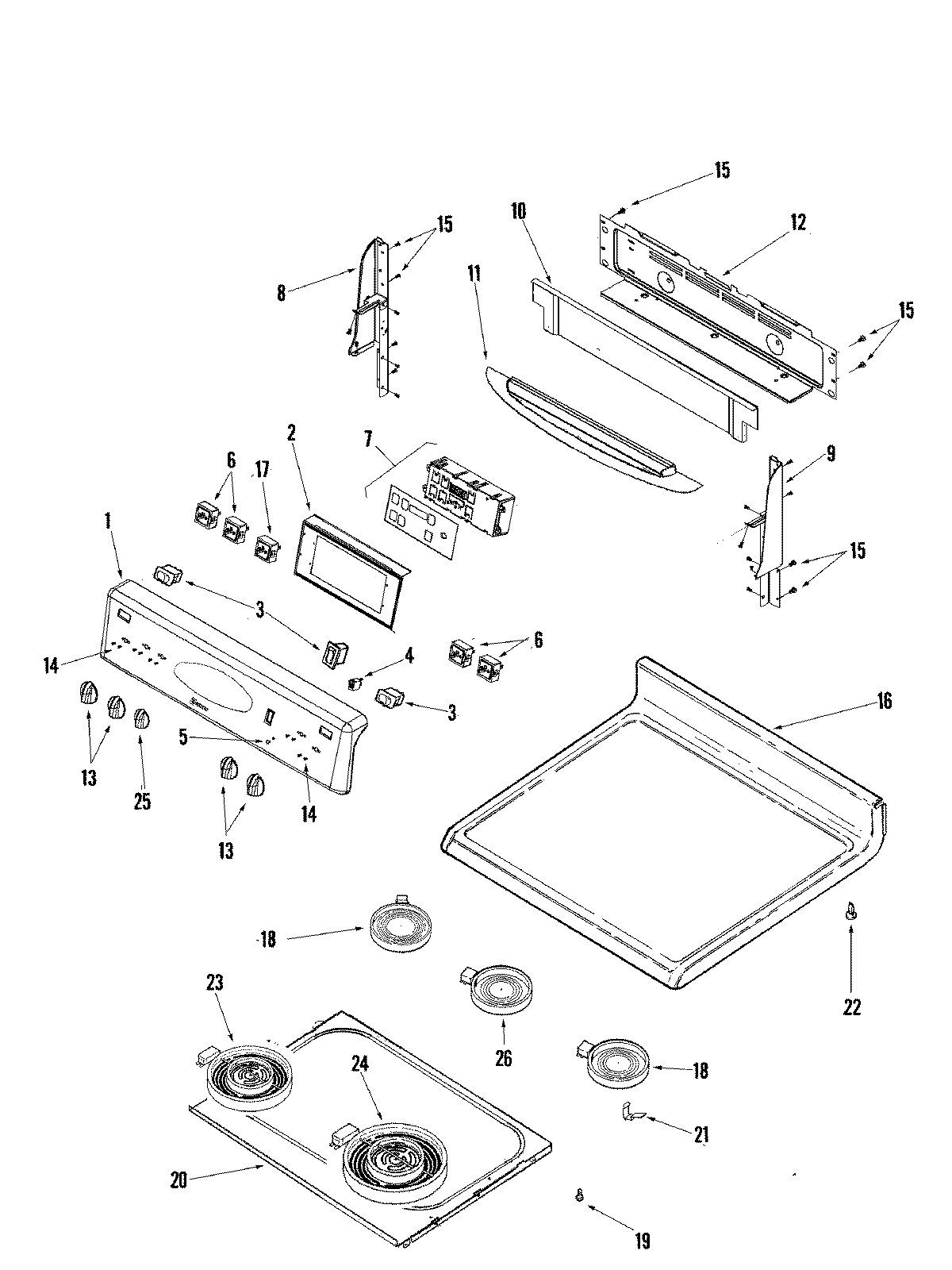

MER5775QAS 03 – CONTROL PANEL/TOP ASSEMBLY (STL)

MER5775QAS 03 – CONTROL PANEL/TOP ASSEMBLY (STL)

Written by

in

MER5775QAS 03 – CONTROL PANEL/TOP ASSEMBLY (STL)

Products

PositionProduct
1MAY 74008904
2BRACKET, CLOCK
37403P985-60 Whirlpool Rocker Switch (Black)
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74009223
7MAY 74008655
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74008725
10MAY 74009205
11MAY 74009202
11MAY 74008891
12MAY 74008836
12MAY 74008730
12MAY 74006536
13MAY 74008945
14SCREW
16MAY 74008546
17MAY 74006589
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823713 Whirlpool Surface Element
2574008948 Whirlpool Oven Black Knob
26MAY 74008898
