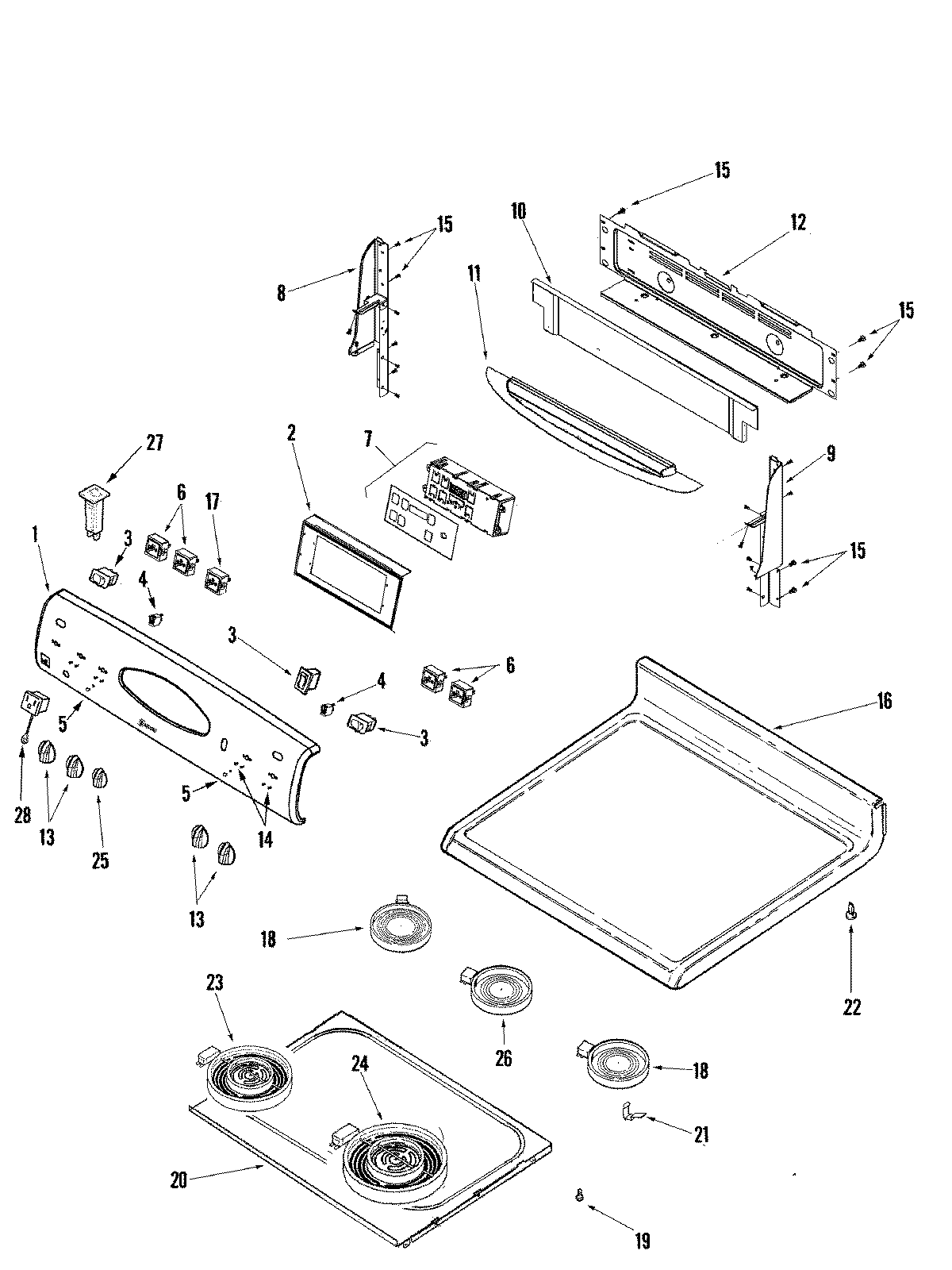

MER5775QCB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009611
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
7	MAY 74009223
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009205
11	MAY 74009202
12	MAY 74008836
12	MAY 74009335
13	MAY 74008945
14	SCREW
15	SCREW (6ABX.25-ZN)
16	MAY 74008546
17	MAY 74006589
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823713 Whirlpool Surface Element
25	74008948 Whirlpool Oven Black Knob
26	MAY 74008898
27	MAY 71003070
28	MAY 71003068
