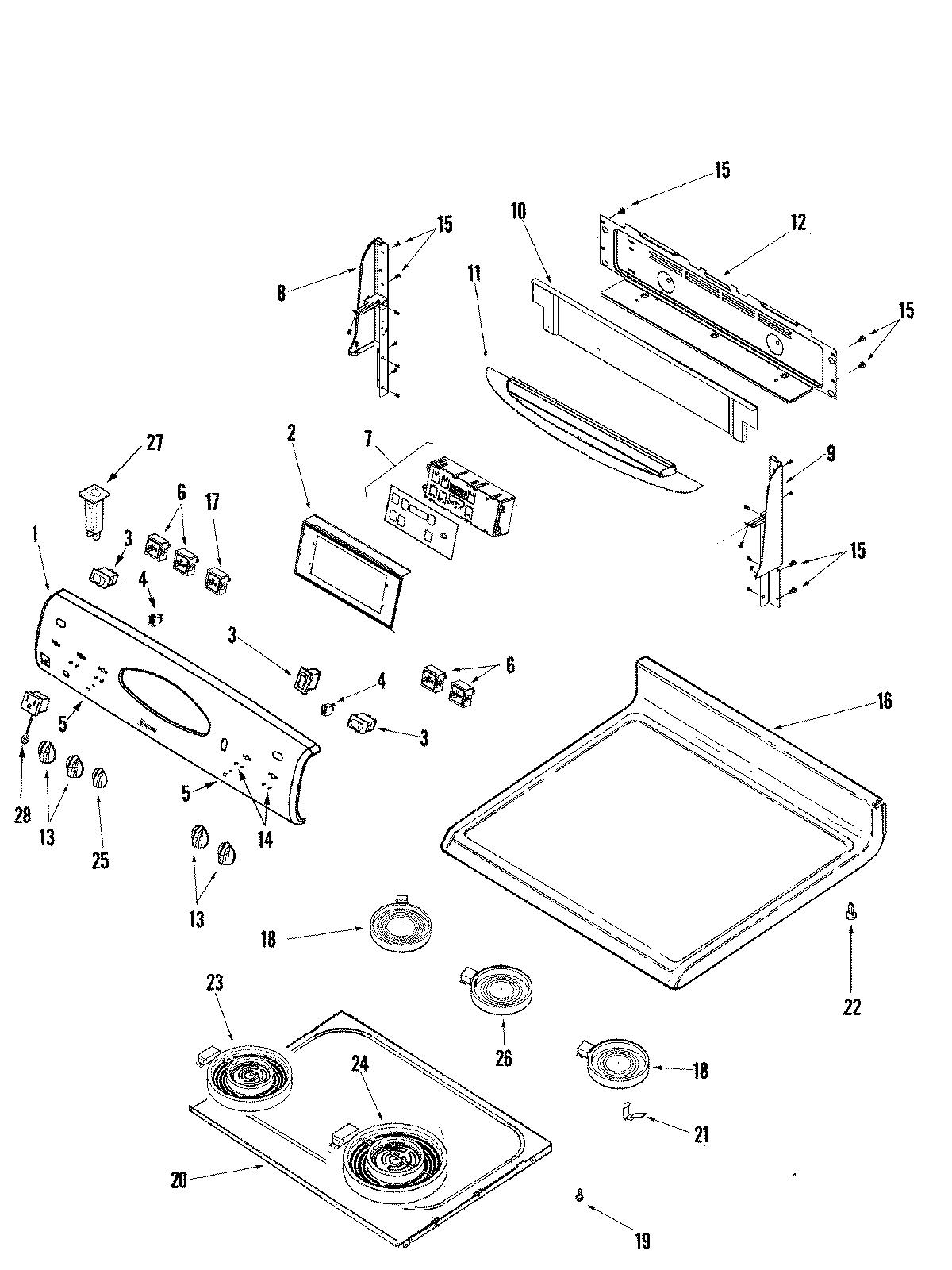

MER5775QCF 03 – CONTROL PANEL/TOP ASSEMBLY

MER5775QCF 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5775QCF 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74009347
2NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2BRACKET, CLOCK
3WP74010226 Whirlpool RO Switch
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7MAY 74009221
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009206
11MAY 74009203
12MAY 74009335
12MAY 74008836
13WP74008947 Whirlpool Knob White
14SCREW
15SCREW (6ABX.25-ZN)
16MAY 74008548
17MAY 74006589
18W10823711 Whirlpool Surface Element Left Front and Right Rear
19SCREW
20MAY 74008900
21SPRING, ELEMENT SUPPORT
2274008761 Whirlpool Spacer Snap-In
23W10823692 Whirlpool Dual Radiant Element
24W10823713 Whirlpool Surface Element
2574008950 Whirlpool Knob White/Chrome
26MAY 74008898
27MAY 74009322
28MAY 71003069
