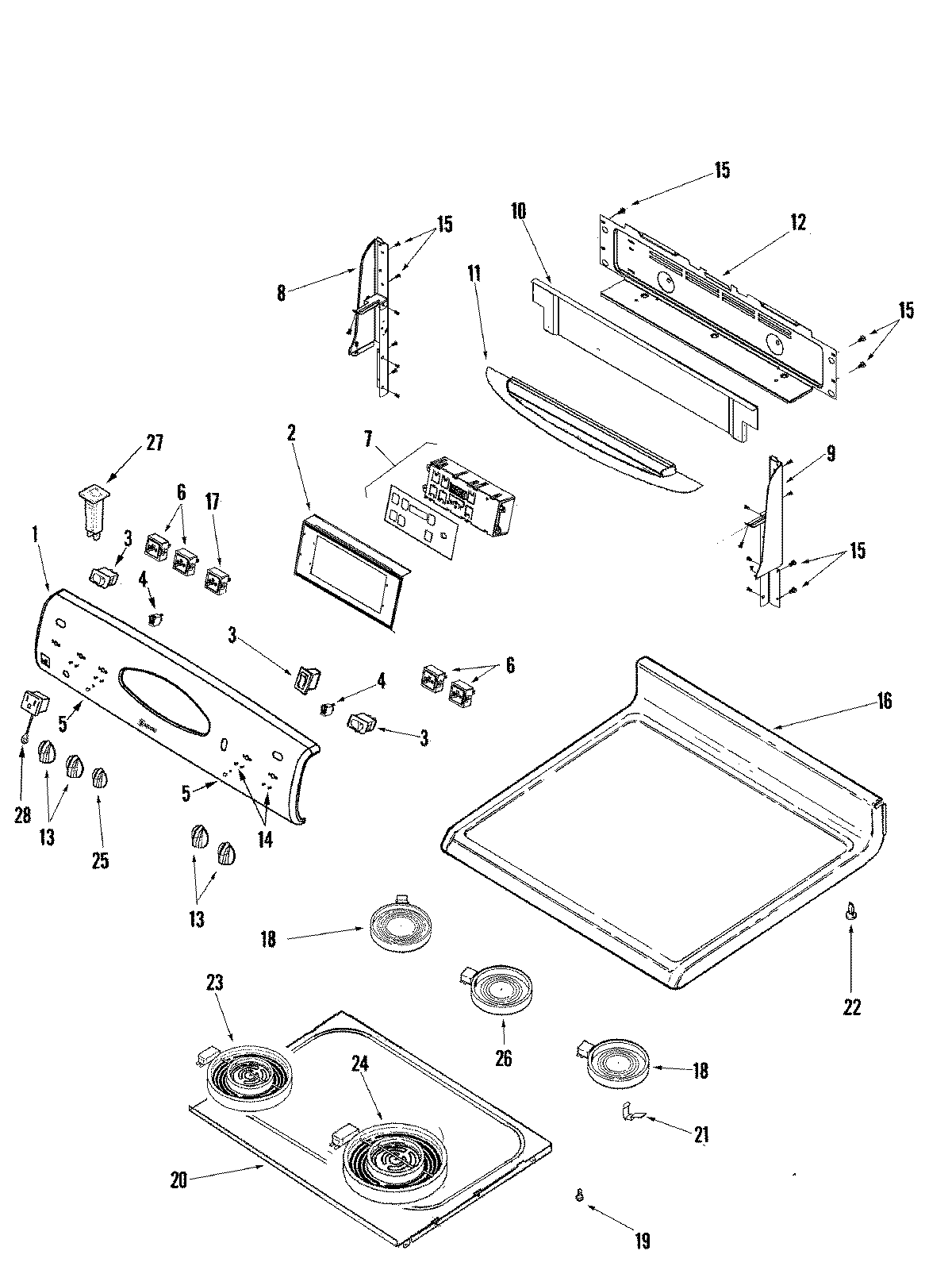

MER5775QCW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74009347
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	WP74010226 Whirlpool RO Switch
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74009221
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009206
11	MAY 74009203
12	MAY 74009335
12	MAY 74008836
13	WP74008947 Whirlpool Knob White
14	SCREW
15	SCREW (6ABX.25-ZN)
16	MAY 74008550
17	MAY 74006589
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	W10823713 Whirlpool Surface Element
25	74008950 Whirlpool Knob White/Chrome
26	MAY 74008898
27	MAY 74009322
28	MAY 71003069
