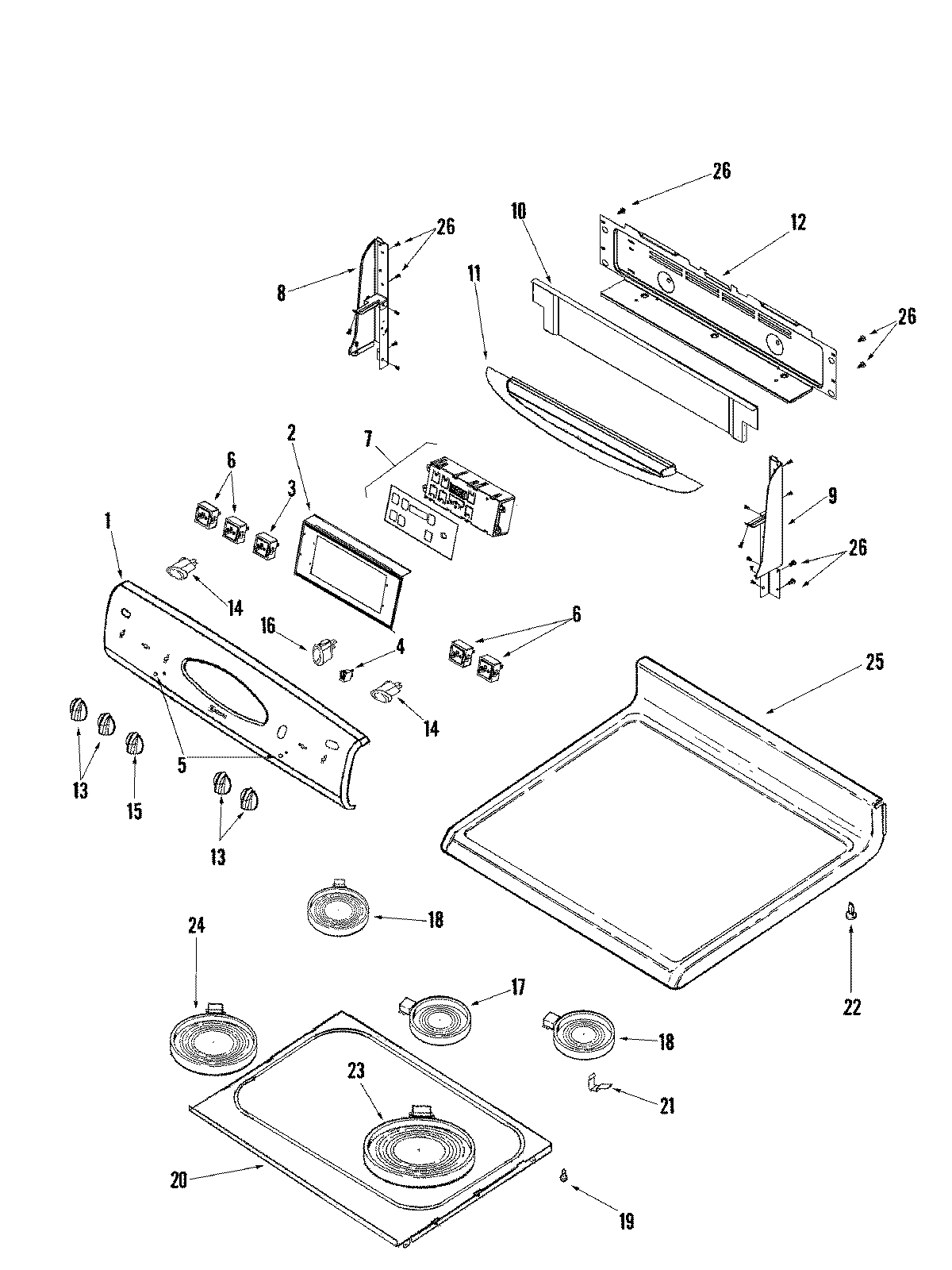

MER5775RAQ 03 – CONTROL PANEL/TOP ASSEMBLY
Written by
in
MER5775RAQ 03 – CONTROL PANEL/TOP ASSEMBLY
Products
Position
Product
1
MAY 74011224
2
BRACKET, CLOCK
3
MAY 74006589
4
WP74004153 Whirlpool Indicator Light
5
WP7730P011-60 Whirlpool Indicator Lens
6
Switch, Infinte (Dual (RF) (1))
6
SWITCH-ELMNT
6
WP74008940 Whirlpool Infinite Switch
6
WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6
MAY 74011102
6
SCREW
7
MAY 74009222
8
END CAP (RT-BSQ)
9
END CAP (LT-BSQ)
10
MAY 74009444
11
SHIELD, HEAT VISOR (BSQ)
12
MAY 74010983
12
MAY 74008836
13
WP74008947 Whirlpool Knob White
15
MAY 74008949
16
7403P984-60 Whirlpool RO Switch
17
MAY 74008898
17
MAY 74011676
18
W10823711 Whirlpool Surface Element Left Front and Right Rear
20
MAY 74008900
21
74007134 Whirlpool Oven Spring Element Support
22
74008761 Whirlpool Spacer Snap-In
23
W10823720 Whirlpool Surface Element
24
W10823692 Whirlpool Dual Radiant Element
25
MAY 74011155
26
SCREW
←
