MER5775RAQ1 04 – DOOR PARTS – Aparts

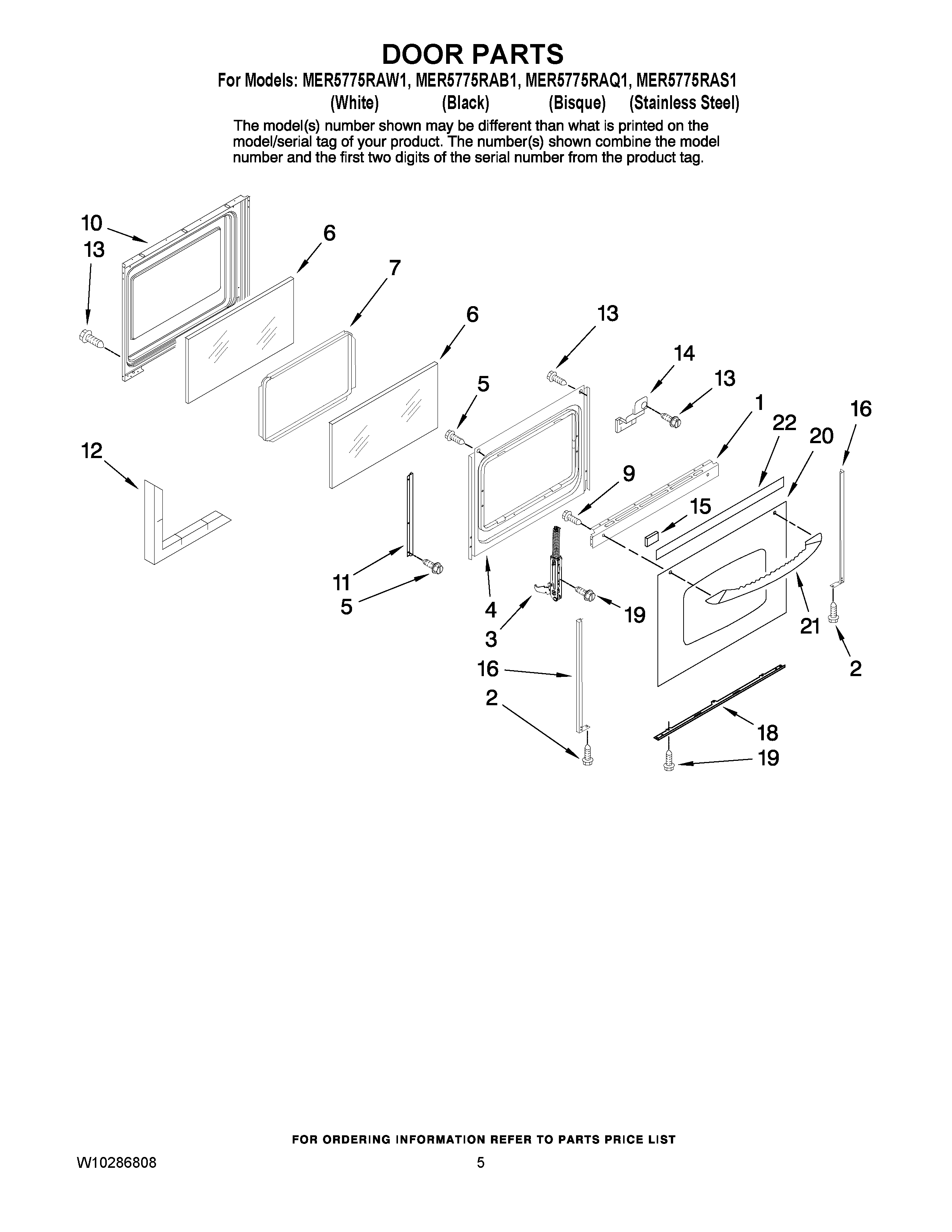

MER5775RAQ1 04 – DOOR PARTS

Products

Position	Product
1	MAY 3608F140-70
1	MAY 3608F140-78
1	MAY 3608F140-71
2	SCREW
3	MAY 7106P124-60
4	Retainer, Side
6	Glass, Inner
9	MAY 7101P681-60
10	MAY 2402W297-19
11	BRACKET, INNER GLASS
12	MAY 7002P246-60
13	SCREW
14	MAY 3801P858-45
14	MAY 3801P857-45
15	Tape (White)
16	MAY 3608F126-70
16	Trim, Door Side (Bisque)
16	MAY 8270P193-60
16	MAY 3608F126-71
18	MAY 3608F092-70
18	MAY 3608F092-71
18	TRIM, DOOR BOTTOM (BISQUE)
19	SCREW (10-24X5/16-NI)
20	MAY 7902P782-60
20	MAY 7902P791-60
20	GLASS, DOOR (WHITE)
21	MAY 7701P516-60
21	MAY 7701P517-60
21	MAY 7701P518-60
22	TAPE, FOIL 3``
