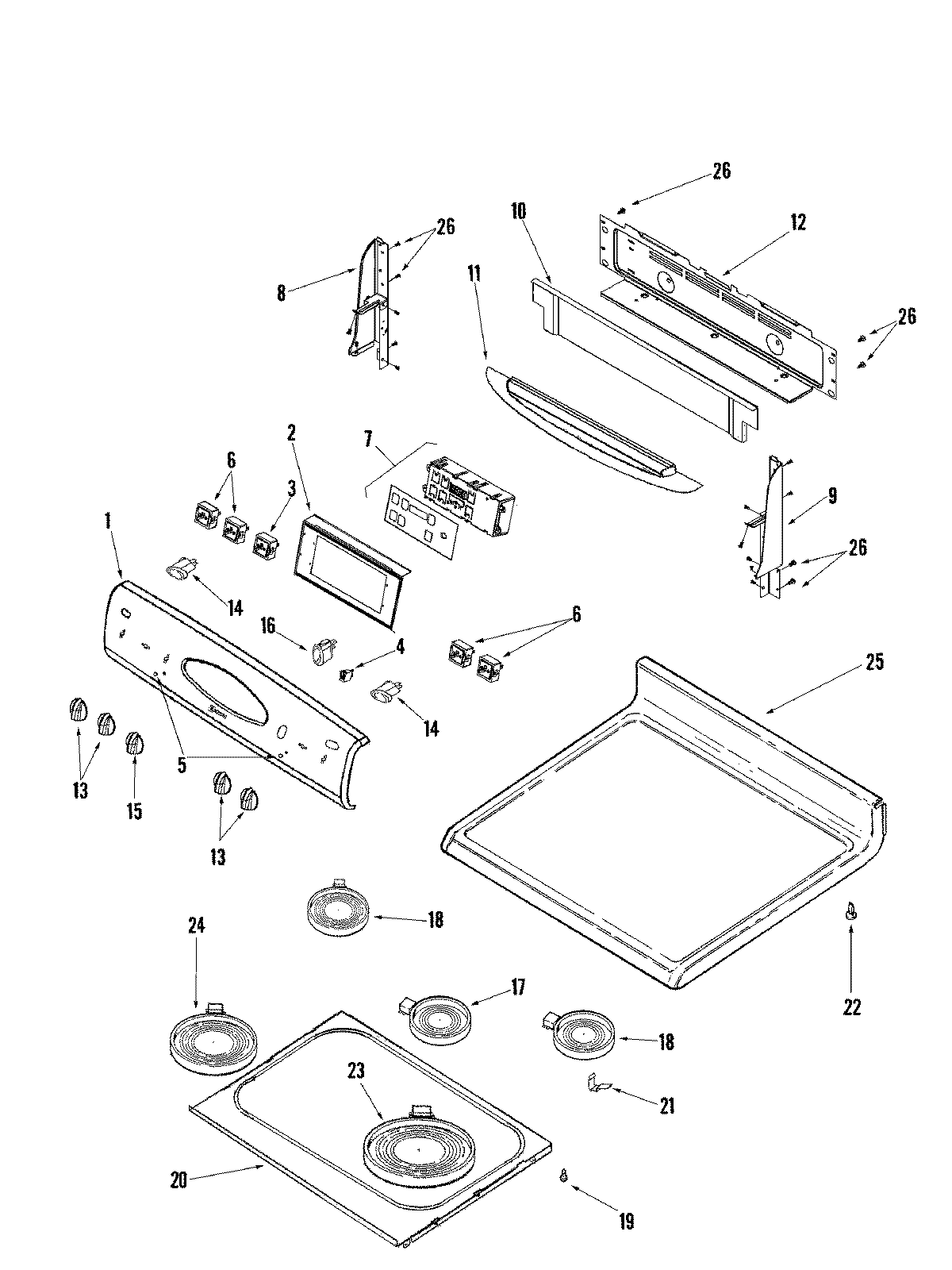

MER5775RAS 03 – CONTROL PANEL/TOP ASSEMBLY

MER5775RAS 03 – CONTROL PANEL/TOP ASSEMBLY

Written by

in

MER5775RAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011225
3MAY 74006589
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6MAY 74011102
6SWITCH-ELMNT
6SCREW
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6WP74008940 Whirlpool Infinite Switch
6Switch, Infinte (Dual (RF) (1))
7MAY 74009223
7SCREW
8End Cap (Right Black)
9End Cap (Left Black)
10MAY 74009444
11MAY 74009202
12MAY 74008836
12MAY 74010983
13MAY 74008945
1574008948 Whirlpool Oven Black Knob
167403P985-60 Whirlpool Rocker Switch (Black)
17MAY 74011676
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23W10823720 Whirlpool Surface Element
24W10823692 Whirlpool Dual Radiant Element
25MAY 74011154
28WP74005546 Whirlpool RU Spacer
