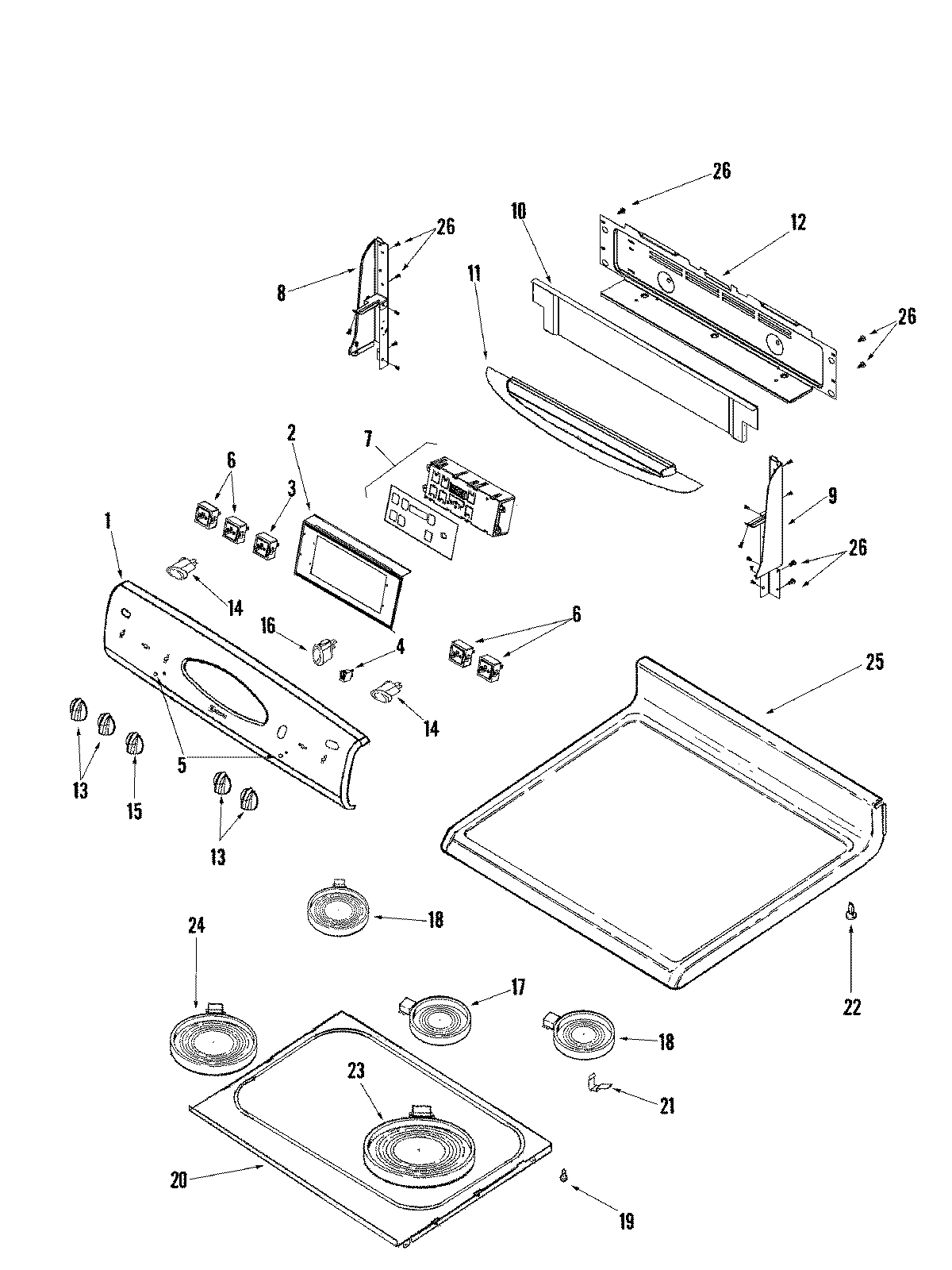

MER5775RAW 03 – CONTROL PANEL/TOP ASSEMBLY

Products

PositionProduct
1MAY 74011223
2BRACKET, CLOCK
3MAY 74006589
4WP74004153 Whirlpool Indicator Light
5WP7730P011-60 Whirlpool Indicator Lens
6SWITCH-ELMNT
6WP74008940 Whirlpool Infinite Switch
6WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6Switch, Infinte (Dual (RF) (1))
6MAY 74011102
6SCREW
7MAY 74009221
8End Cap (Right White)
9End Cap (Left White)
10MAY 74009444
11MAY 74009203
12MAY 74010983
12MAY 74008836
1374008946 Whirlpool Oven Bisque Knob
1574008950 Whirlpool Knob White/Chrome
16WP74010226 Whirlpool RO Switch
17MAY 74011676
17MAY 74008898
18W10823711 Whirlpool Surface Element Left Front and Right Rear
20MAY 74008900
2174007134 Whirlpool Oven Spring Element Support
2274008761 Whirlpool Spacer Snap-In
23W10823720 Whirlpool Surface Element
24W10823692 Whirlpool Dual Radiant Element
25MAY 74011153
26SCREW
