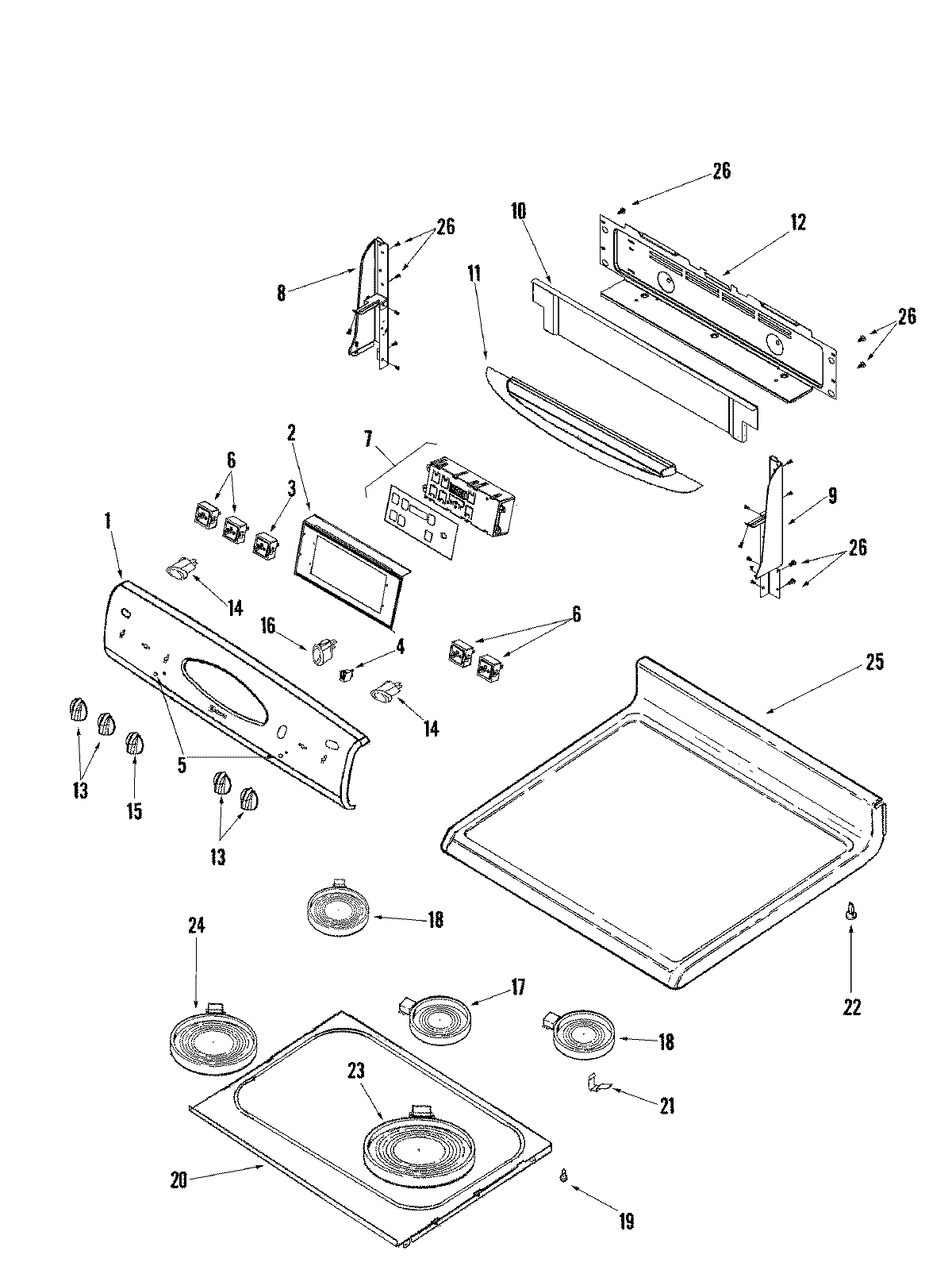

MER5775RCB 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011269
2	BRACKET, CLOCK
3	Switch, Infinte (Dual (RF) (1))
3	MAY 74006589
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	SWITCH-ELMNT
6	MAY 74011102
6	SCREW
6	WP74008940 Whirlpool Infinite Switch
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74009223
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009444
11	MAY 74009202
12	MAY 74008836
12	MAY 74010983
13	MAY 74008945
15	74008948 Whirlpool Oven Black Knob
16	7403P985-60 Whirlpool Rocker Switch (Black)
17	MAY 74008898
17	MAY 74011676
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	74007134 Whirlpool Oven Spring Element Support
22	74008761 Whirlpool Spacer Snap-In
23	W10823720 Whirlpool Surface Element
24	W10823692 Whirlpool Dual Radiant Element
25	MAY 74011154
26	SCREW
27	MAY 71003070
28	MAY 71003068
