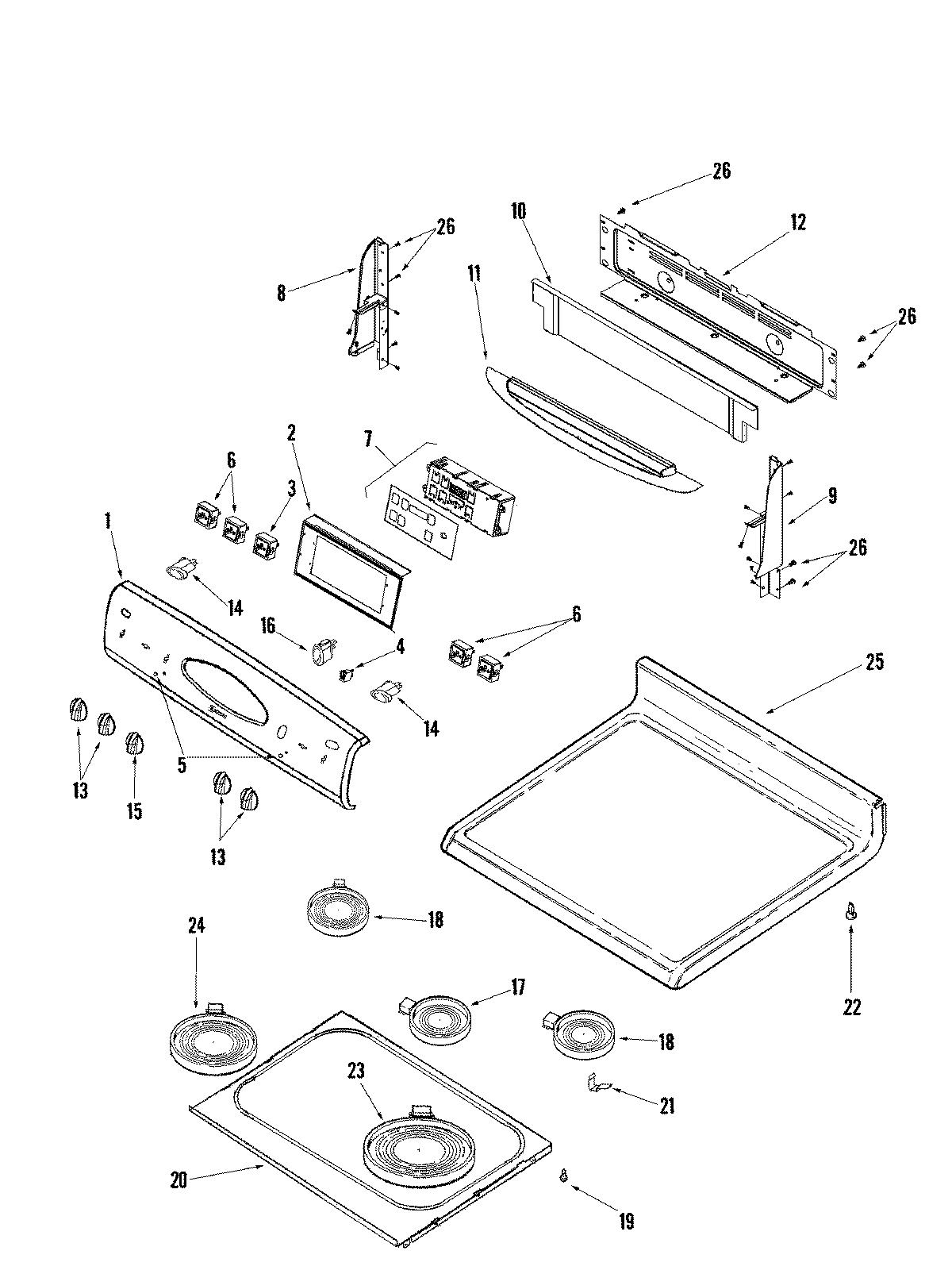

MER5775RCF 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011270
2	BRACKET, CLOCK
3	MAY 74006589
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	MAY 74011102
6	SCREW
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
6	WP74008940 Whirlpool Infinite Switch
7	MAY 74009221
7	SCREW
8	End Cap (Right White)
9	End Cap (Left White)
10	MAY 74009444
11	MAY 74009203
12	MAY 74010983
12	MAY 74008836
13	74008946 Whirlpool Oven Bisque Knob
15	74008950 Whirlpool Knob White/Chrome
16	WP74010226 Whirlpool RO Switch
17	MAY 74011676
17	MAY 74008898
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	74007134 Whirlpool Oven Spring Element Support
22	74008761 Whirlpool Spacer Snap-In
23	W10823720 Whirlpool Surface Element
24	W10823692 Whirlpool Dual Radiant Element
