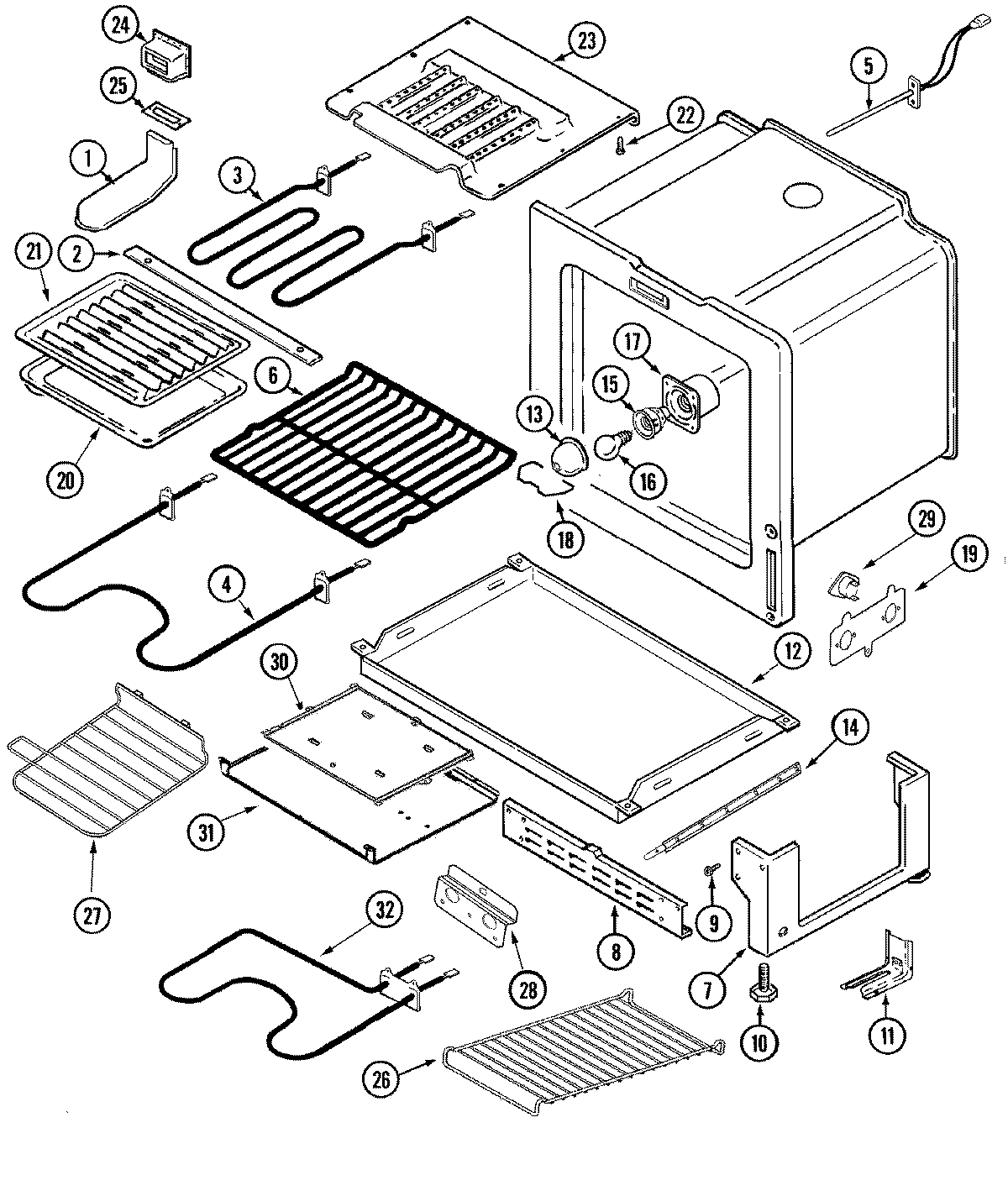

MER5780BAQ 04 – OVEN/BASE

Products

Position	Product
1	MAY 74003394
2	MAY 74003563
2	WP400021-1 Whirlpool Screw
3	WP7406P218-60 Whirlpool Broil Element
4	WP74010750 Whirlpool Oven Bake Element
5	12001656 Whirlpool Range Oven Temperature Sensor
6	WPW10282492 Whirlpool Oven Rack
7	MAY 74006325
8	MAY 4020F001-80
10	W11665456 Whirlpool Range Level Foot
11	WP7101P485-60 Whirlpool Anchor Tip
11	WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12	RETAINER, INSULATION (BOTTOM)
13	MAY 74003389
14	WP74006588 Whirlpool Warming Drawer Glide
15	MAY 74003387
16	MAY Y707319
17	MAY 74003388
18	MAY 74003391
19	MAY 74006575
20	MAY Y3401F02019
21	MAY Y3413F01619
23	MAY 3601F237-47
24	MAY 3826W014-45
25	MAY 74003285
26	MAY 74006573
27	MAY 74003590
28	MAY 74006576
29	MAY 74006585
29	SCREW (8BX3/8-NI)
30	INSULATION, DRAWER & SHIELD
30	MAY 74006574
31	MAY 74006591
32	MAY 74006592
32	SCREW
32	MAY 74005788
