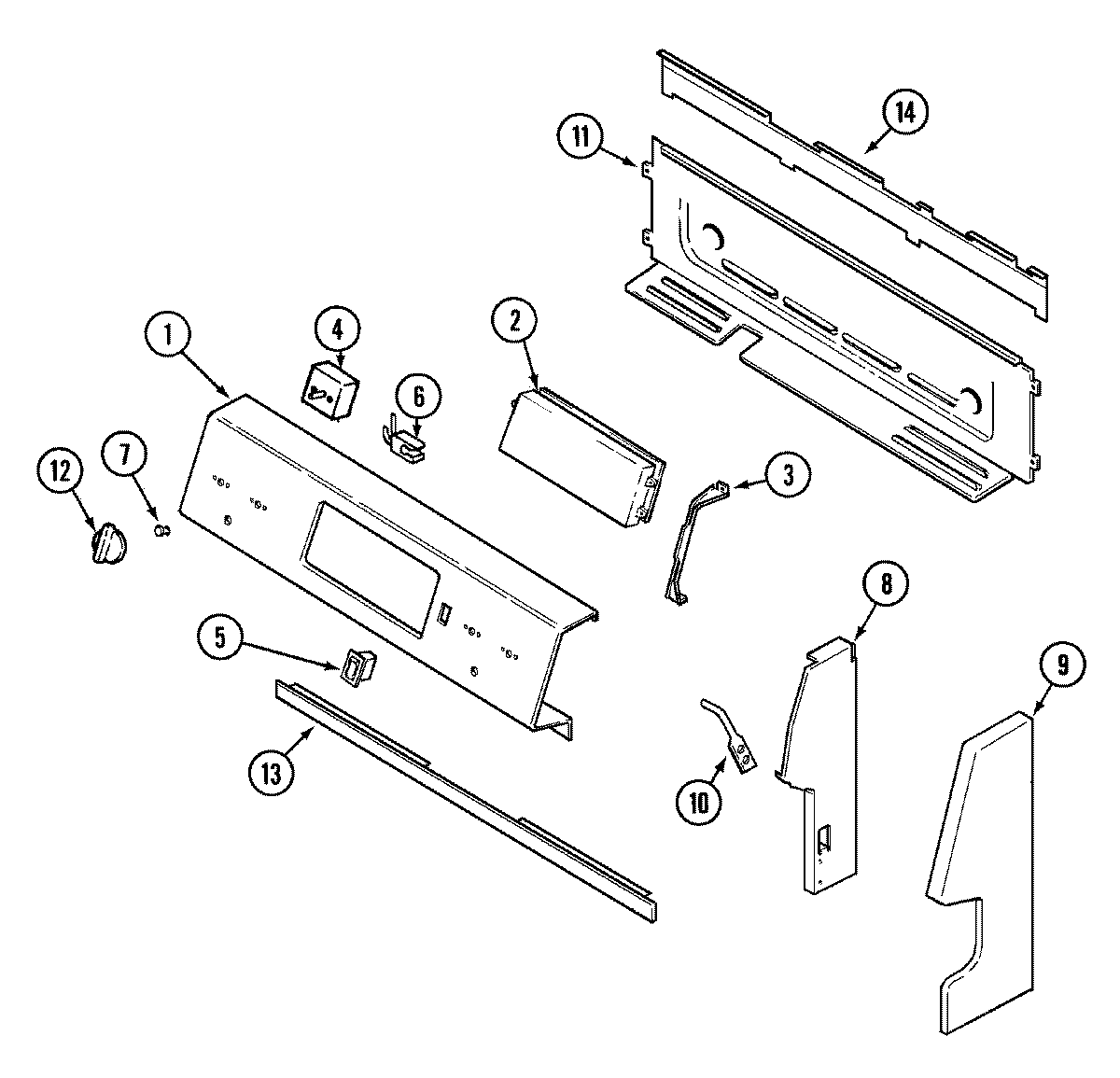

MER5870AAQ 02 – CONTROL PANEL

MER5870AAQ 02 – CONTROL PANEL

Written by

in

MER5870AAQ 02 – CONTROL PANEL

Products

PositionProduct
1MAY 74005181
2MAY 74005171
2SCREW (6ABX.25-ZN)
3MAY 74003627
3MAY 74004985
4MAY 74002144
4SCREW
4WP7403P239-60 Whirlpool Oven Switch
4WP7403P238-60 Whirlpool Infinite Switch (Small Element)
574008765 Whirlpool Range Oven Rocker Switch Bisque
6MAY 7407P101-60
7WP7730P011-60 Whirlpool Indicator Lens
8MAY 74003603
8MAY 74003604
9MAY 74004979
9MAY 74004980
9MAY 74004982
9WP74009541 Whirlpool Screw Assembly
10MAY 74003371
11MAY 74003372
12MAY 74005143
13MAY 74003374
14MAY 74006376
14SCREW
14MAY 74003614
15MAY 74003557
15MAY 12001323
16MAY 74004346
17MAY 16010161
