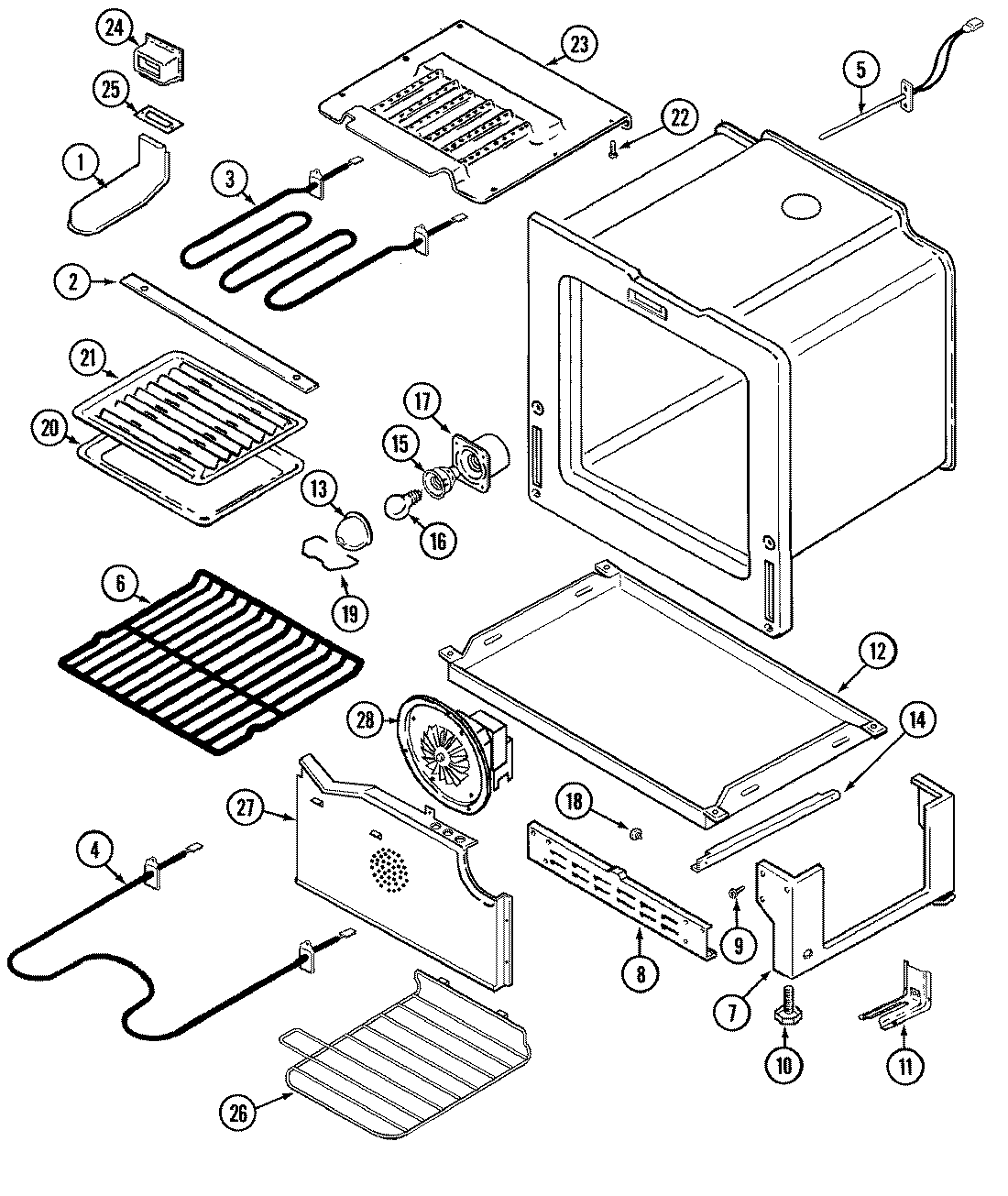

MER5870AAQ 04 – OVEN/BASE

MER5870AAQ 04 – OVEN/BASE

Written by

in

MER5870AAQ 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2MAY 74003563
2WP400021-1 Whirlpool Screw
3WP7406P218-60 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
5MAY 74003390
6WPW10282492 Whirlpool Oven Rack
7MAY 74003393
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11MAY 74002311
12MAY 8312P058-60
12MAY 74003242
13MAY 74003389
14RUNNER, DRAWER
15MAY 74003387
16MAY Y707319
17MAY 74003388
18MAY 74003566
18WP488130 Whirlpool Air Conditioner Nut
19MAY 74003391
19NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
20MAY Y3401F02019
21MAY Y3413F01619
23MAY 3601F237-47
24MAY 3826W014-45
24SCREW
25MAY 74003285
26MAY 74003590
27WP7101P485-60 Whirlpool Anchor Tip
27MAY 74003697
28MAY 74004007
