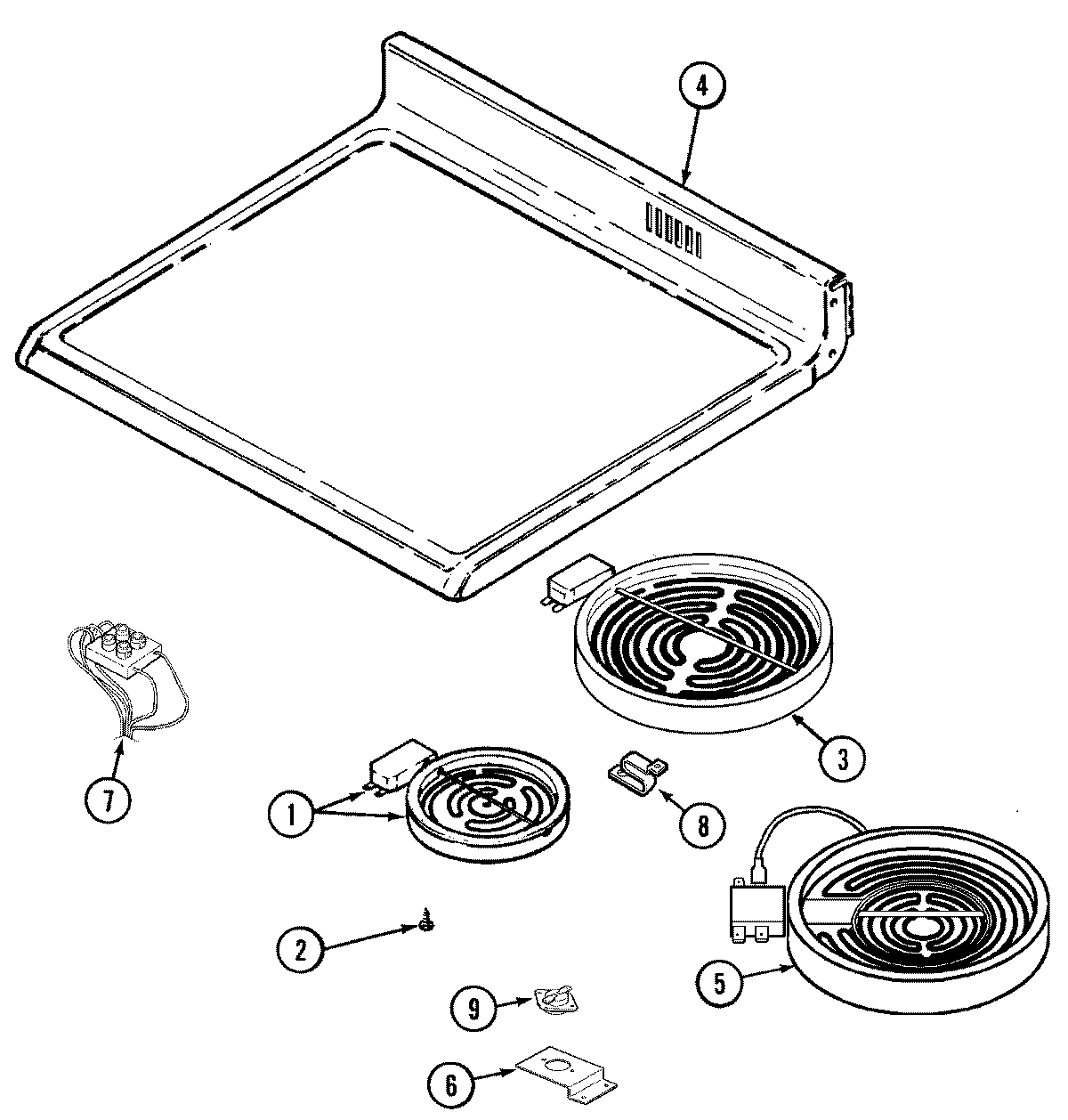

MER5870ACB 05 – TOP ASSEMBLY

MER5870ACB 05 – TOP ASSEMBLY

Written by

in

MER5870ACB 05 – TOP ASSEMBLY

Products

PositionProduct
1W10823711 Whirlpool Surface Element Left Front and Right Rear
1W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
3W10823697 Whirlpool Surface Element
3W10823707 Whirlpool Range Radiant Surface Element 8"
3MAY 74002652
3MAY 74004494
4WA906B Whirlpool Cooktop Glass Scraper
4W11189172 Whirlpool Glide Drawer
4MAY 74003789
4MAY 8308P002-60
5W10823709 Whirlpool Range Dual Radiant Surface Element Cooktop Microwave
5MAY 74004880
5W10823703 Whirlpool Surface Element
5MAY 74002667
6MAY 71003077
7MAY 71003078
88004P093-60 Whirlpool Support C
9MAY 71003076
9SCREW (6ABX.25-ZN)
