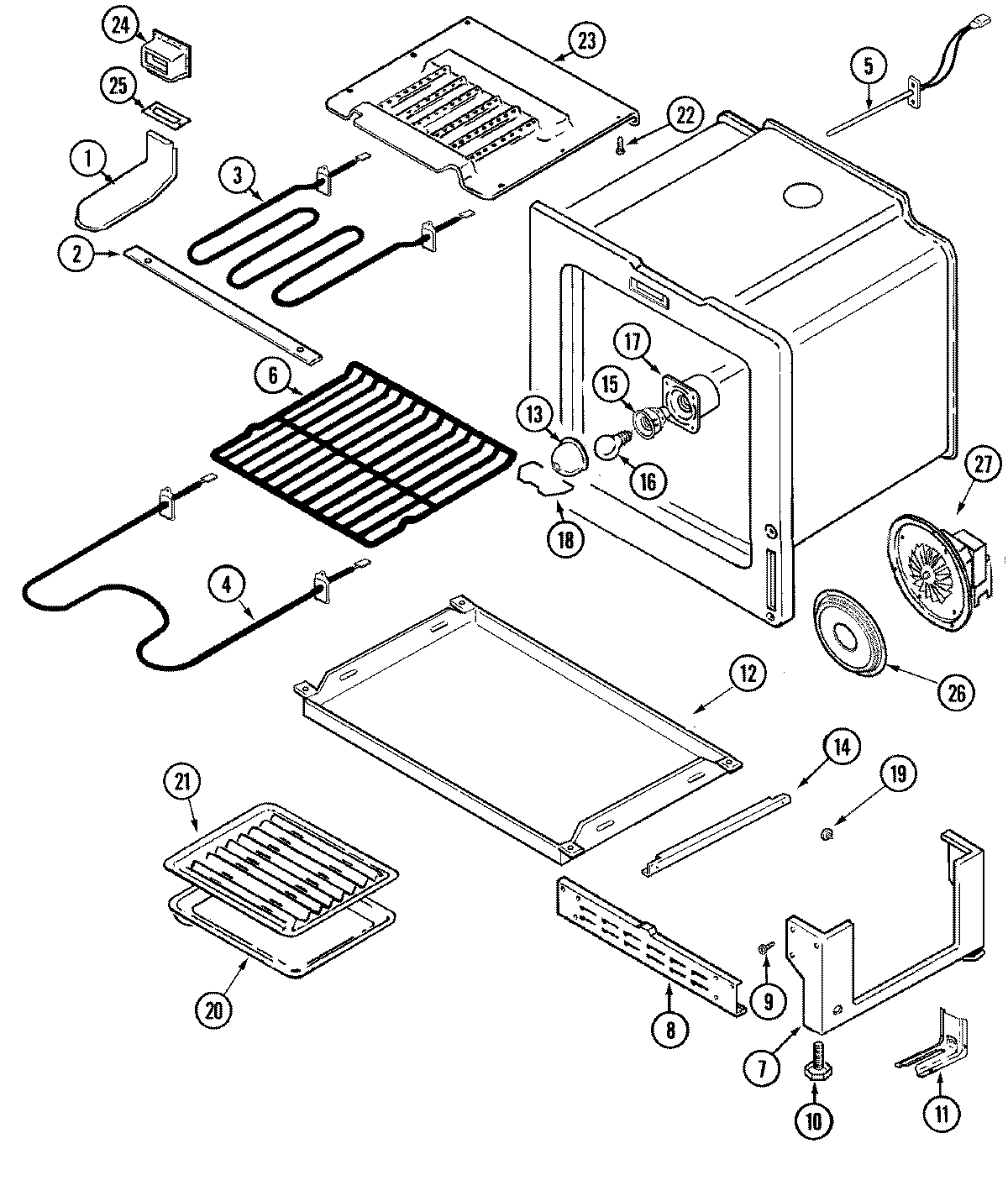

MER5870BCW 04 – OVEN/BASE

MER5870BCW 04 – OVEN/BASE

Written by

in

MER5870BCW 04 – OVEN/BASE

Products

PositionProduct
1MAY 74003394
2MAY 74003563
2WP400021-1 Whirlpool Screw
3WP7406P218-60 Whirlpool Broil Element
4WP74010750 Whirlpool Oven Bake Element
512001656 Whirlpool Range Oven Temperature Sensor
6WPW10282492 Whirlpool Oven Rack
7MAY 74006325
8MAY 4020F001-80
10W11665456 Whirlpool Range Level Foot
11WP7101P485-60 Whirlpool Anchor Tip
11WP3801F656-51 Whirlpool Range Anti-Tip Bracket
12RETAINER, INSULATION (BOTTOM)
13MAY 74003389
14SHAFT, STORAGE DRAWER ROLLER
15MAY 74003387
16RANGE ONLY 40W 120V APPL BULB
17MAY 74003388
18MAY 74003391
19WP74004078 Whirlpool Door Roller
20MAY Y3401F02019
21MAY Y3413F01619
23MAY 3601F237-47
24MAY 74004534
24SCREW
25MAY 74003285
26MAY 71001394
26MAY 702592
26COVER, CONVECT
27MAY 74004007
