MER5875QAN 02 – CAVITY

MER5875QAN 02 – CAVITY

Written by

in

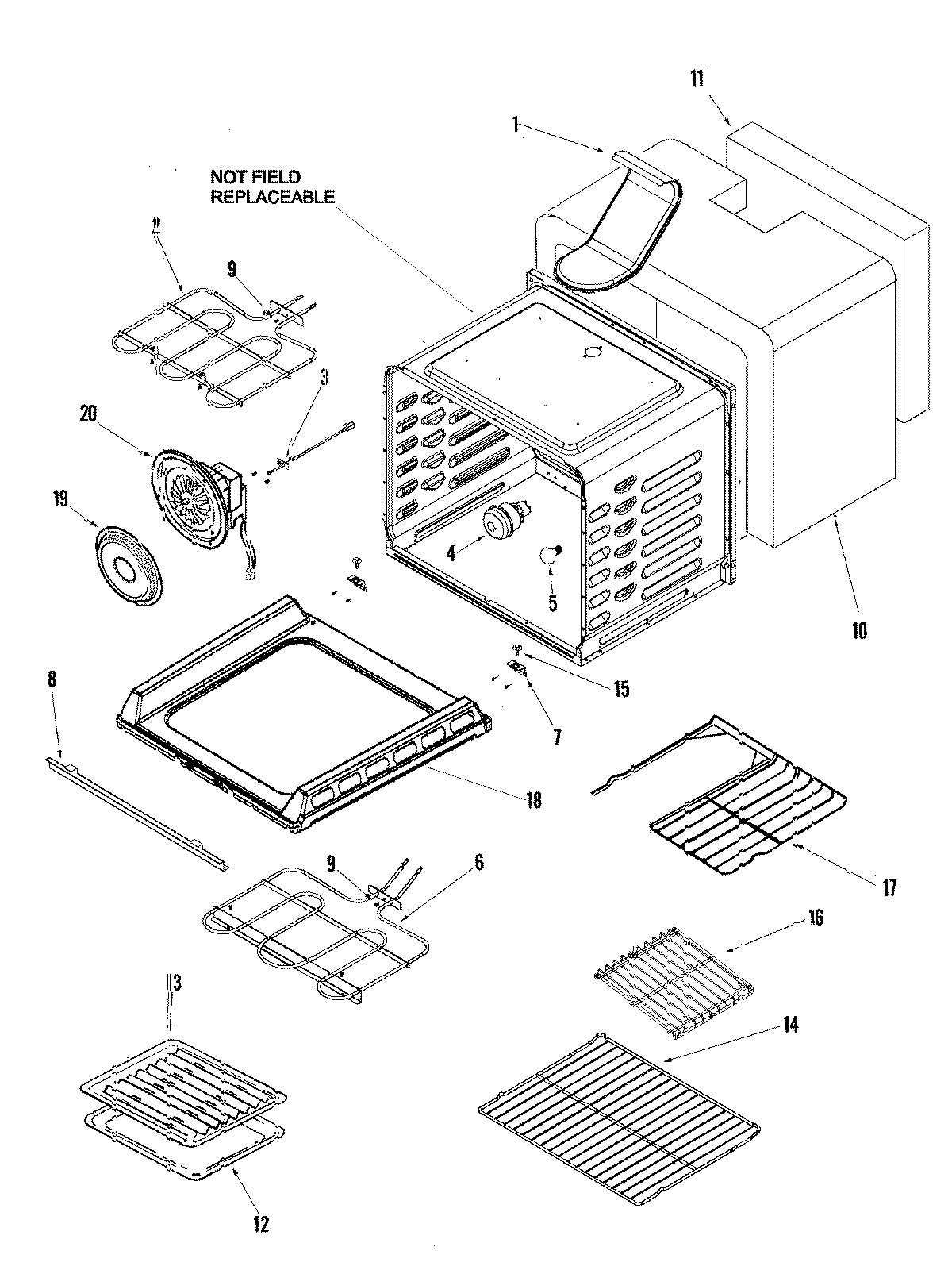

MER5875QAN 02 – CAVITY

Products

PositionProduct
1MAY 74008691
2WP74008692 Whirlpool Bake Element
312001656 Whirlpool Range Oven Temperature Sensor
4WP74011278 Whirlpool Light
4MAY 71001867
5RANGE ONLY 40W 120V APPL BULB
6WPW10276482 Whirlpool Bake Element
7SUPPORT, OVEN BOTTOM (REAR)
8SUPPORT, OVEN BOTTOM (FRONT)
9SCREW
10INSULATION, WRAPPER
11MAY 74008698
12MAY Y3401F02019
13NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
13MAY Y3413F01619
14WP74008763 Whirlpool Oven Rack
15WP74003976 Whirlpool Screw
16INSERT, HALF RACK 30“
17MAY 74008924
18WPW10211368 Whirlpool Oven Bottom
19COVER, CONVECT
20MAY 74009430
