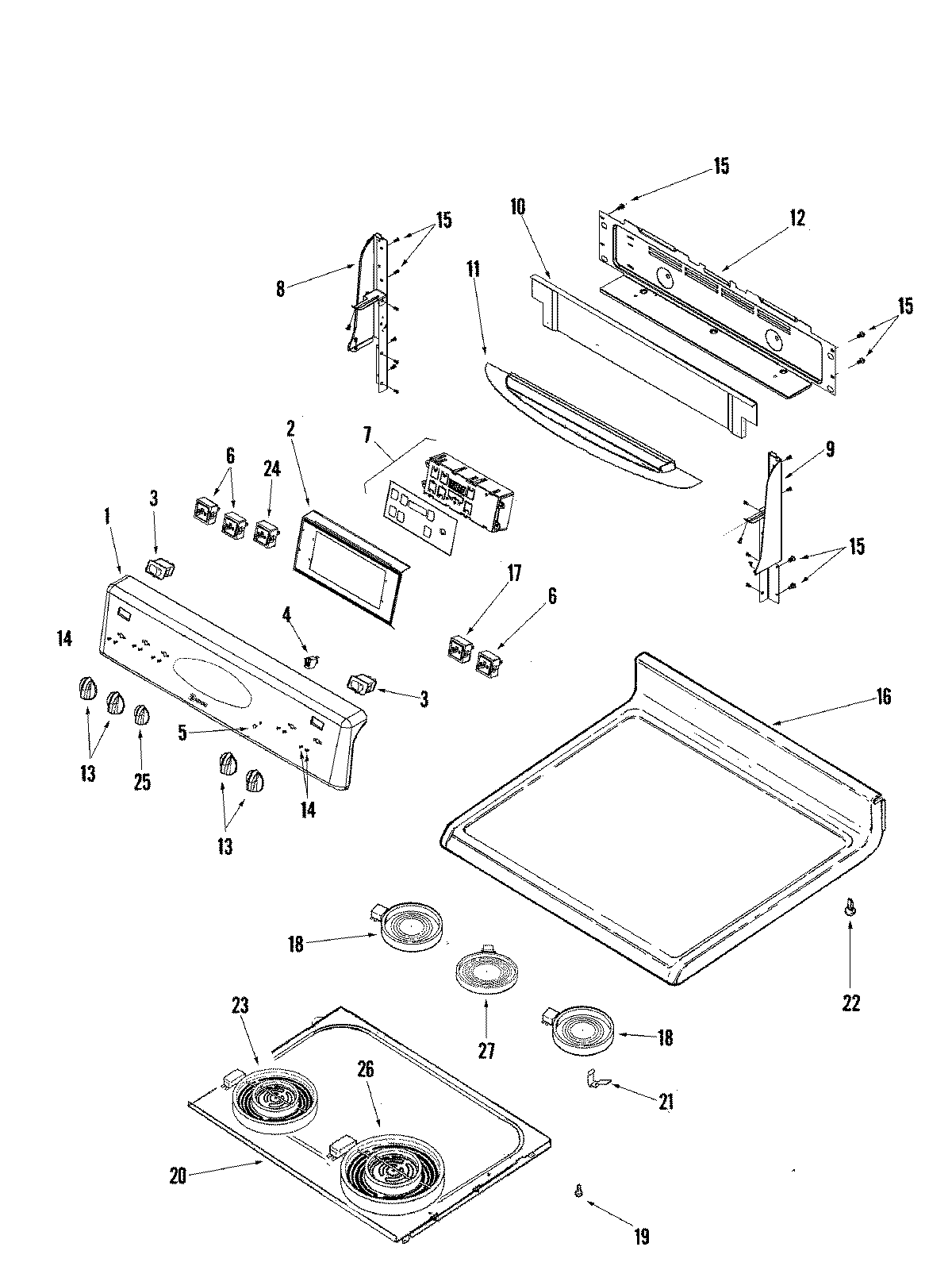

MER5875QAS 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74008905
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
2	BRACKET, CLOCK
3	7403P985-60 Whirlpool Rocker Switch (Black)
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	WP7403P238-60 Whirlpool Infinite Switch (Small Element)
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74008658
8	End Cap (Right Black)
9	End Cap (Left Black)
10	MAY 74009205
10	MAY 74008725
11	MAY 74009202
11	MAY 74008891
12	MAY 74008730
12	MAY 74008836
13	MAY 74008945
14	SCREW
16	MAY 74008556
17	WP74008940 Whirlpool Infinite Switch
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
19	SCREW
20	MAY 74008900
21	SPRING, ELEMENT SUPPORT
22	74008761 Whirlpool Spacer Snap-In
23	W10823692 Whirlpool Dual Radiant Element
24	MAY 74006589
25	74008948 Whirlpool Oven Black Knob
26	W10823713 Whirlpool Surface Element
27	MAY 74008898
