MER5875QAS 04 – DOOR/DRAWER (STL)

MER5875QAS 04 – DOOR/DRAWER (STL)

Written by

in

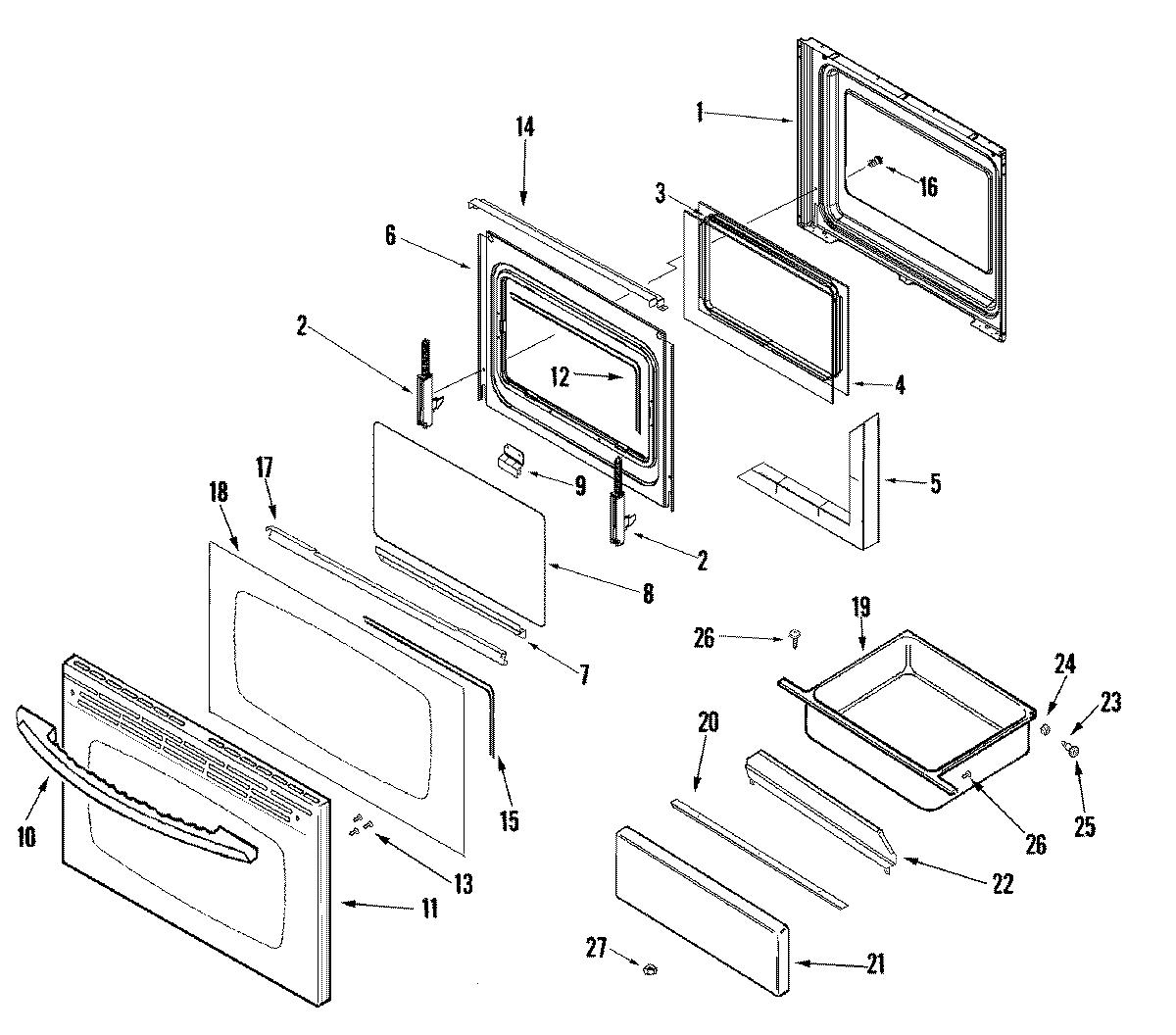

MER5875QAS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10WP7701P526-60 Whirlpool Door Handle
11MAY 74008951
12Gasket, Window
13WP74006515 Whirlpool Washer Screw
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19MAY 74008337
20MAY 74008909
21MAY 74008912
22WP3604F390-51 Whirlpool Shield
22MAY 74009105
23SHAFT, STORAGE DRAWER ROLLER
24WP488130 Whirlpool Air Conditioner Nut
25WP74004078 Whirlpool Door Roller
26SCREW
