MER5875RAS 04 – DOOR/DRAWER (STL)

MER5875RAS 04 – DOOR/DRAWER (STL)

Written by

in

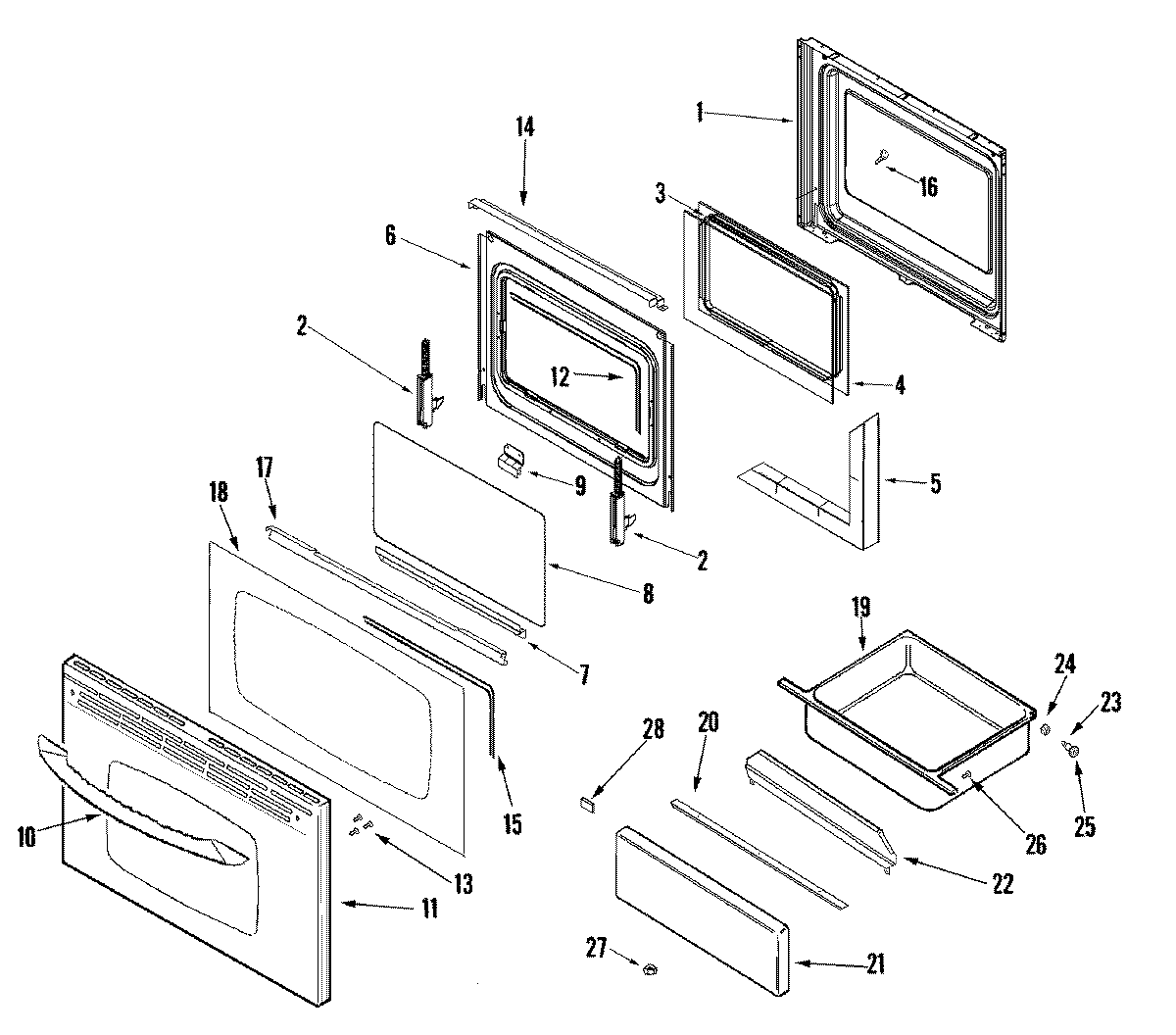

MER5875RAS 04 – DOOR/DRAWER (STL)

Products

PositionProduct
1MAY 74008926
1HANDLE, DRAWER
274010546 Whirlpool Range Oven Door Hinge
3FRAME, GLASS
3WPY706189 Whirlpool Stove Screw
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6MAY 74008744
7MAY 74008745
8GLASS, DOOR
9Trim, Door Top (Black)
10WP7701P526-60 Whirlpool Door Handle
11MAY 74008951
12Gasket, Window
13WP74006515 Whirlpool Washer Screw
13MAY 74011772
14Baffel, Door
15WP74009029 Whirlpool Door Gasket
16SCREW (10-24X5/16-NI)
17Bracket, Glass
18MAY 74008855
19PLATE, PANEL MTG.
19MAY 74008337
20MAY 74008909
20MAY 3405F037-60
2112002306 Whirlpool Air Conditioner Drawer Panel Kit
21PANEL, DRAWER (STL-ELEC)
22WP3604F390-51 Whirlpool Shield
23SHAFT, STORAGE DRAWER ROLLER
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
26SCREW
27WP488130 Whirlpool Air Conditioner Nut
28WP74005546 Whirlpool RU Spacer
