MER5875RCB 04 – DOOR/DRAWER

MER5875RCB 04 – DOOR/DRAWER

Written by

in

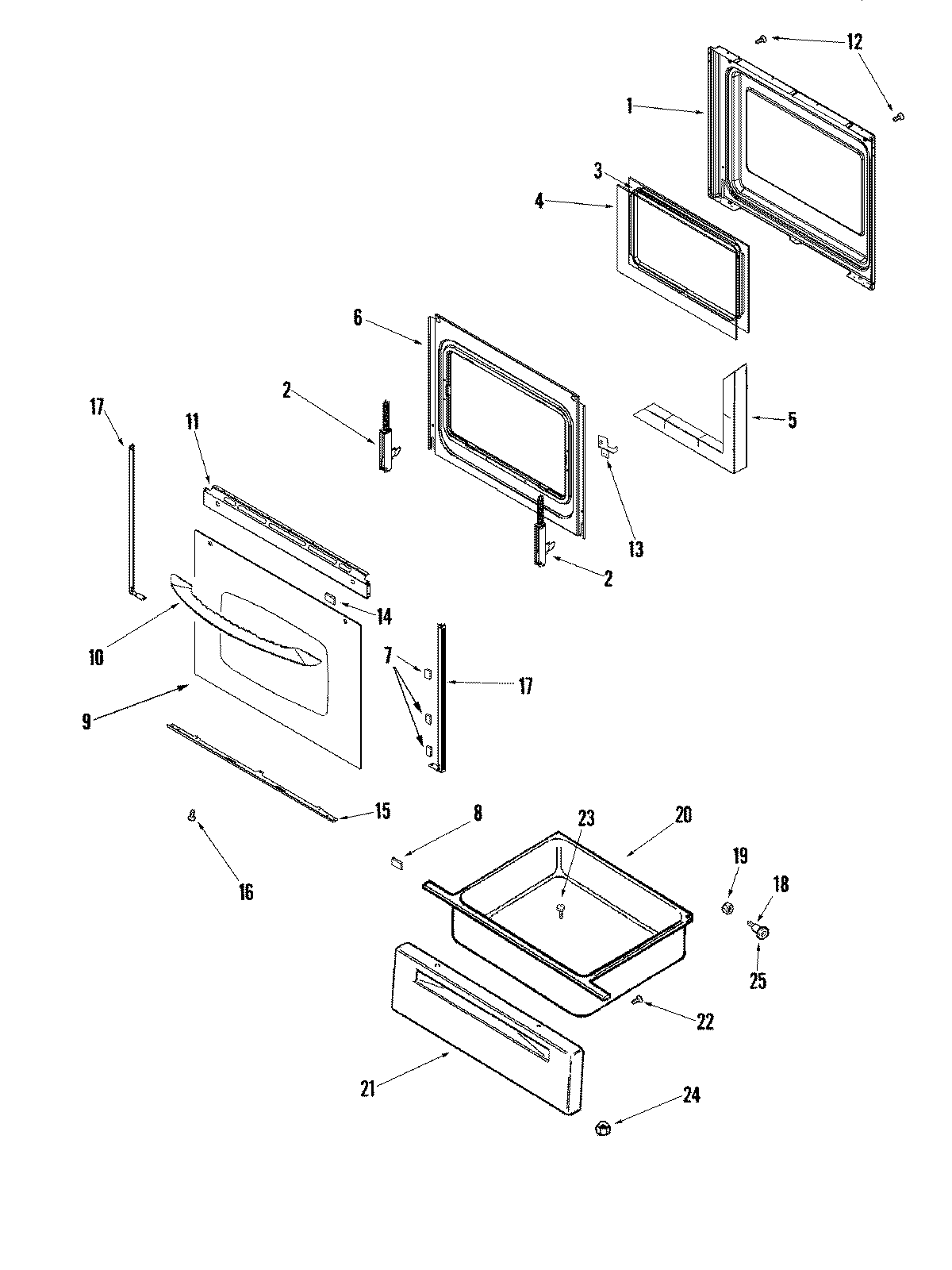

MER5875RCB 04 – DOOR/DRAWER

Products

PositionProduct
1MAY 74008926
274010546 Whirlpool Range Oven Door Hinge
33801F886-51 Whirlpool Mounting Bracket
3FRAME, GLASS
474003645 Whirlpool Range Oven Door Inner Glass
5INSULATION, OVEN DOOR
6Retainer, Side
6MAY 74008744
7WP74009025 Whirlpool Double Sided Tape
8WP74005546 Whirlpool RU Spacer
9Glass, Door (Black (Order Item 15 When Replacing Door Glass))
10WP74011767 Whirlpool Door Handle
11Trim, Door Top (Black)
11WP98008545 Whirlpool Screw
12WP74006515 Whirlpool Washer Screw
13BRACKET, DOOR HANDLE (RT)
13WPY706189 Whirlpool Stove Screw
13BRACKET, DOOR HANDLE (LT)
15TRIM, BOTTOM (BLK)
16SCREW (10-24X5/16-NI)
17MAY 74010560
18SHAFT, STORAGE DRAWER ROLLER
19WP488130 Whirlpool Air Conditioner Nut
20DRAWER, STORAGE
20MAY 3405F037-80
20PLATE, PANEL MTG.
21MAY W10163038
21Panel, Drawer (Black)
22SCREW
23WP7101P072-60 Whirlpool Screw
24WPW10131078 Whirlpool Nut Assembly
25WP74004078 Whirlpool Door Roller
