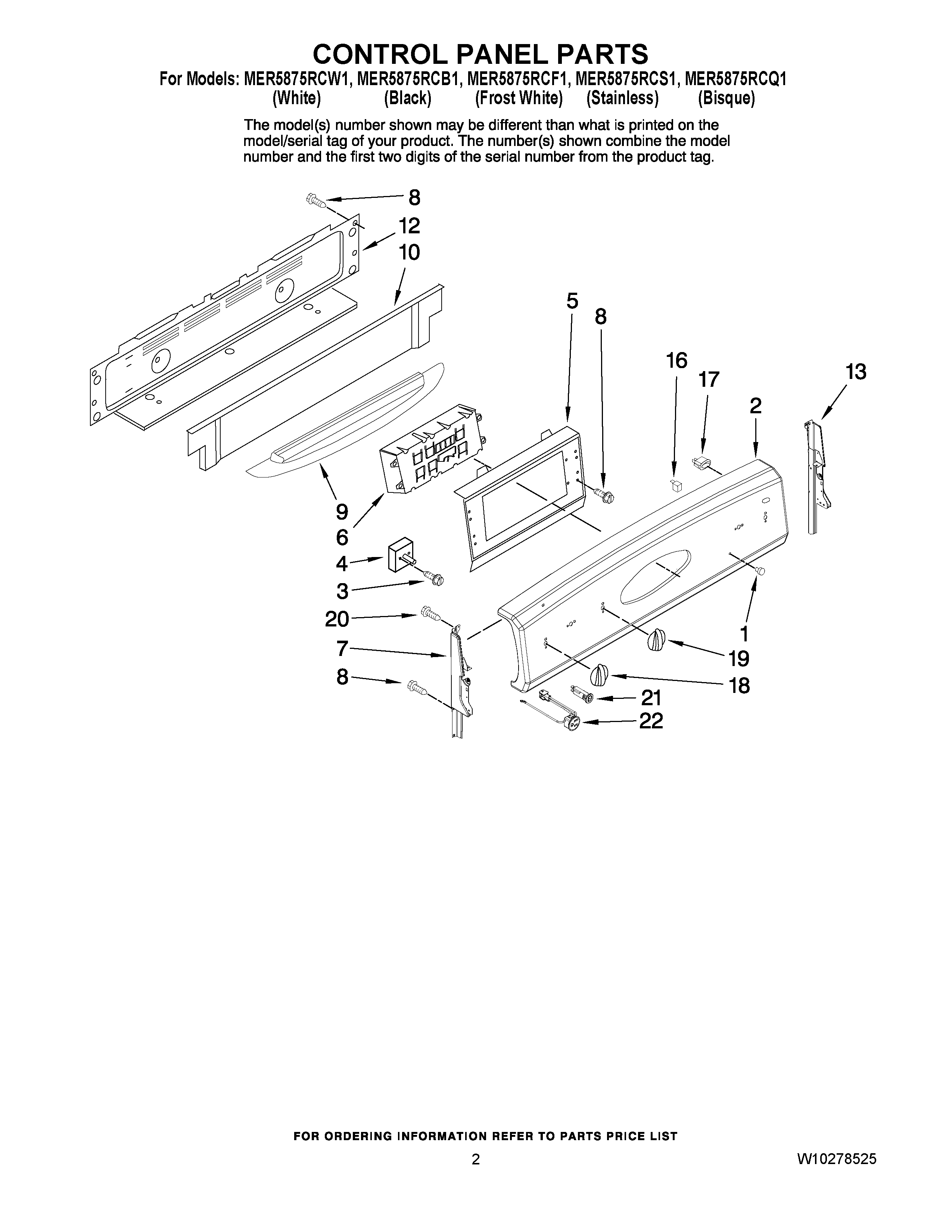

MER5875RCF1 02 – CONTROL PANEL PARTSadmin2025-04-26T09:14:44+00:00MER5875RCF1 02 – CONTROL PANEL PARTS
Products
| Position | Product |
|---|
| 1 | MAY 3196068 |
| 2 | MAY 7704P072-60 |
| 2 | MAY 2602D308-09 |
| 2 | MAY 2602D308-88 |
| 2 | MAY 2602D308-81 |
| 3 | SCREW |
| 4 | MAY 7450P072-60 |
| 4 | SWITCH, INFINITE (LEFT FRONT) |
| 4 | MAY 7450P094-60 |
| 4 | SWITCH, INFINITE (LR,RR (2)) |
| 5 | MAY 3801F844-51 |
| 6 | MAY 74008657 |
| 6 | MAY 74008658 |
| 6 | MAY 74008656 |
| 7 | MAY 3807F703-71 |
| 7 | End Cap, Left (Bisque) |
| 8 | MAY 4159450 |
| 9 | MAY 5702M703-70 |
| 9 | Shield, Heat Visor (Bisque) |
| 9 | MAY 3604F382-81 |
| 10 | MAY 3604F381-19 |
| 12 | MAY 4005F803-51 |
| 13 | MAY 3807F702-70 |
| 13 | MAY 3807F702-71 |
| 13 | End Cap, Right (Bisque) |
| 16 | MAY 7407P136-60 |
| 17 | SWITCH, ROCKER (BISQUE) |
| 17 | Switch, Rocker |
| 17 | SWITCH, ROCKER (WHITE) |
| 18 | KNOBS (WHITE (4)) |
| 18 | KNOBS (BLACK (4)) |
| 18 | KNOBS (BISQUE (4)) |
| 19 | KNOB (6) (BISQUE) |
| 19 | MAY 7737P238-60 |
| 19 | MAY 7737P235-60 |
| 20 | Screw (2) (Black) |
| 20 | Screw (2) (White) |
| 20 | Screw (2) (Bisque) |
| 21 | MAY 7429P007-60 |
| 21 | MAY 7429P009-60 |
| 21 | MAY 7429P010-60 |
| 22 | MAY 7408P057-60 |
| 22 | RECEPTACLE, OUTLET |
| 22 | MAY 7408P076-60 |
