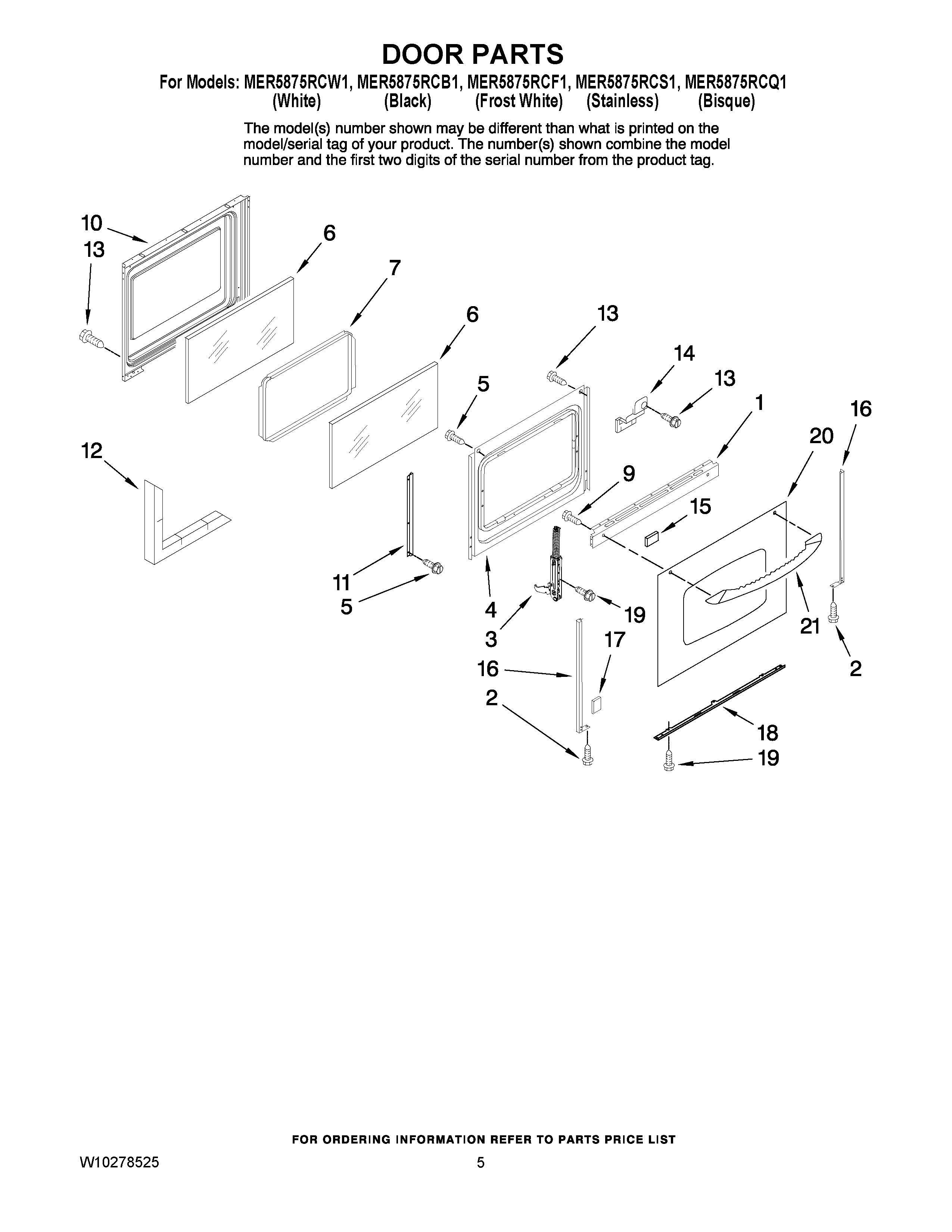

MER5875RCF1 04 – DOOR PARTS

MER5875RCF1 04 – DOOR PARTS

Written by

in

MER5875RCF1 04 – DOOR PARTS

Products

PositionProduct
1MAY 3608F140-71
1MAY 3608F140-70
1MAY 3608F140-78
2Screw (2) (Black)
2Screw, Handle (White)
2SCREW, HANDLE (BISQUE)
3MAY 7106P124-60
4Retainer, Side
6Glass, Inner
9MAY 7101P681-60
10MAY 2402W297-19
11BRACKET, INNER GLASS
12MAY 7002P246-60
13SCREW
14MAY 3801P857-45
14MAY 3801P858-45
15Tape (White)
16MAY 3608F126-61
16Trim, Door Side (Bisque)
16MAY 3608F126-70
17MAY 8270P193-60
17Tape, Double Sided (White)
18MAY 3608F092-61
18MAY 3804P236-51
18TRIM, DOOR BOTTOM (BISQUE)
19SCREW (10-24X5/16-NI)
20GLASS, DOOR (WHITE)
20MAY 7902P791-60
20MAY 7902P782-60
21MAY 7701P517-60
21MAY 7701P516-60
21HANDLE, DOOR (STAINLESS)
21MAY 7701P518-60
