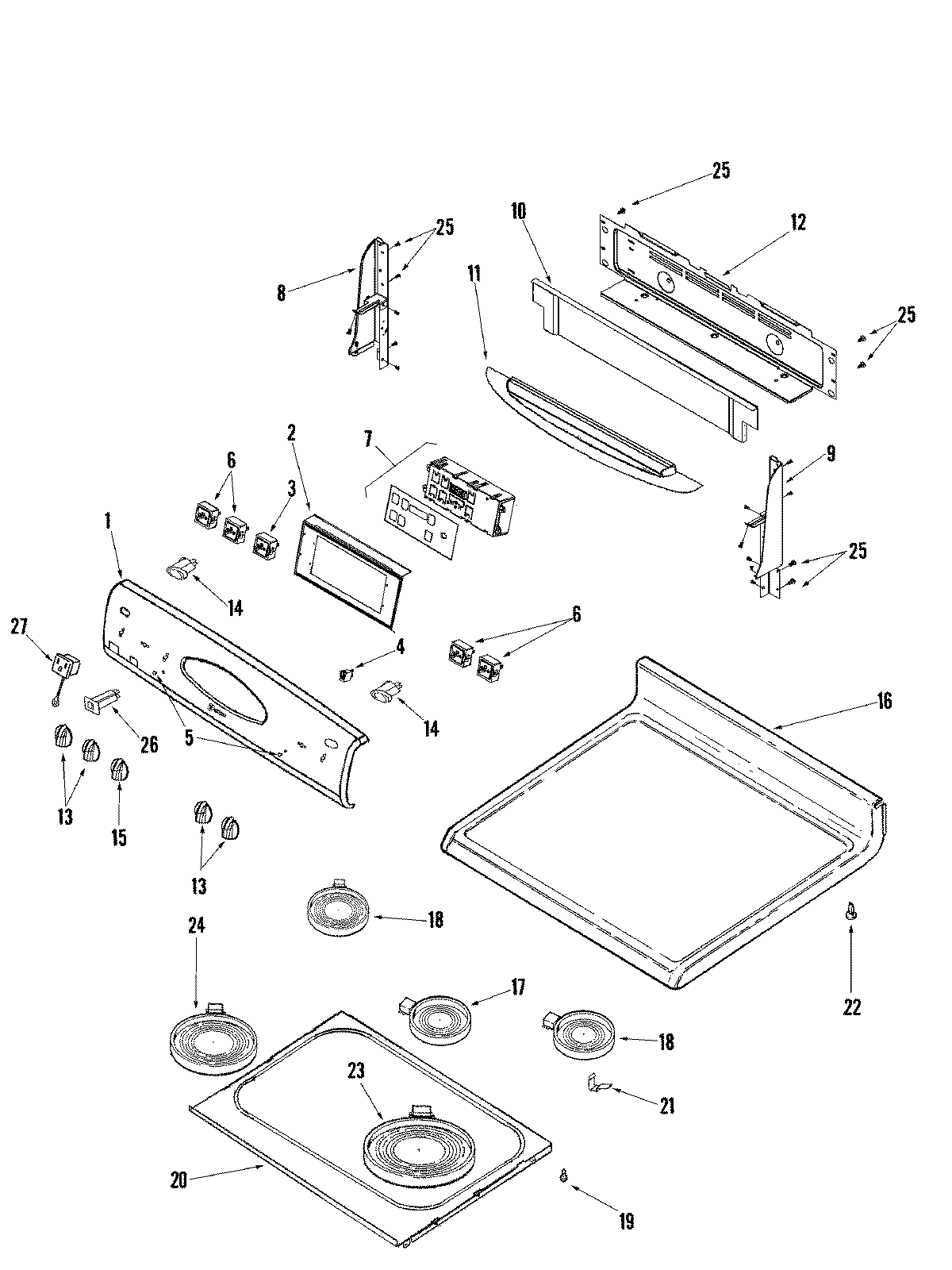

MER5875RCQ 03 – CONTROL PANEL/TOP ASSEMBLY

Products

Position	Product
1	MAY 74011282
2	BRACKET, CLOCK
3	Switch, Infinte (Dual (RF) (1))
3	MAY 74006589
4	WP74004153 Whirlpool Indicator Light
5	WP7730P011-60 Whirlpool Indicator Lens
6	MAY W10177711
6	MAY 74011102
6	SCREW
6	SWITCH-ELMNT
6	WP74008940 Whirlpool Infinite Switch
6	WP74003122 Whirlpool Infinite Switch Assembly (Dual)
7	MAY 74008657
8	END CAP (RT-BSQ)
9	END CAP (LT-BSQ)
10	MAY 74009444
11	SHIELD, HEAT VISOR (BSQ)
12	MAY 74010983
12	MAY 74008836
13	WP74008947 Whirlpool Knob White
14	7403P984-60 Whirlpool RO Switch
15	MAY 74008949
16	MAY 74011155
17	MAY 74008898
17	MAY 74011676
18	W10823711 Whirlpool Surface Element Left Front and Right Rear
20	MAY 74008900
21	74007134 Whirlpool Oven Spring Element Support
22	74008761 Whirlpool Spacer Snap-In
23	W10823720 Whirlpool Surface Element
24	W10823692 Whirlpool Dual Radiant Element
25	SCREW
26	MAY 74009346
27	MAY 74005144
