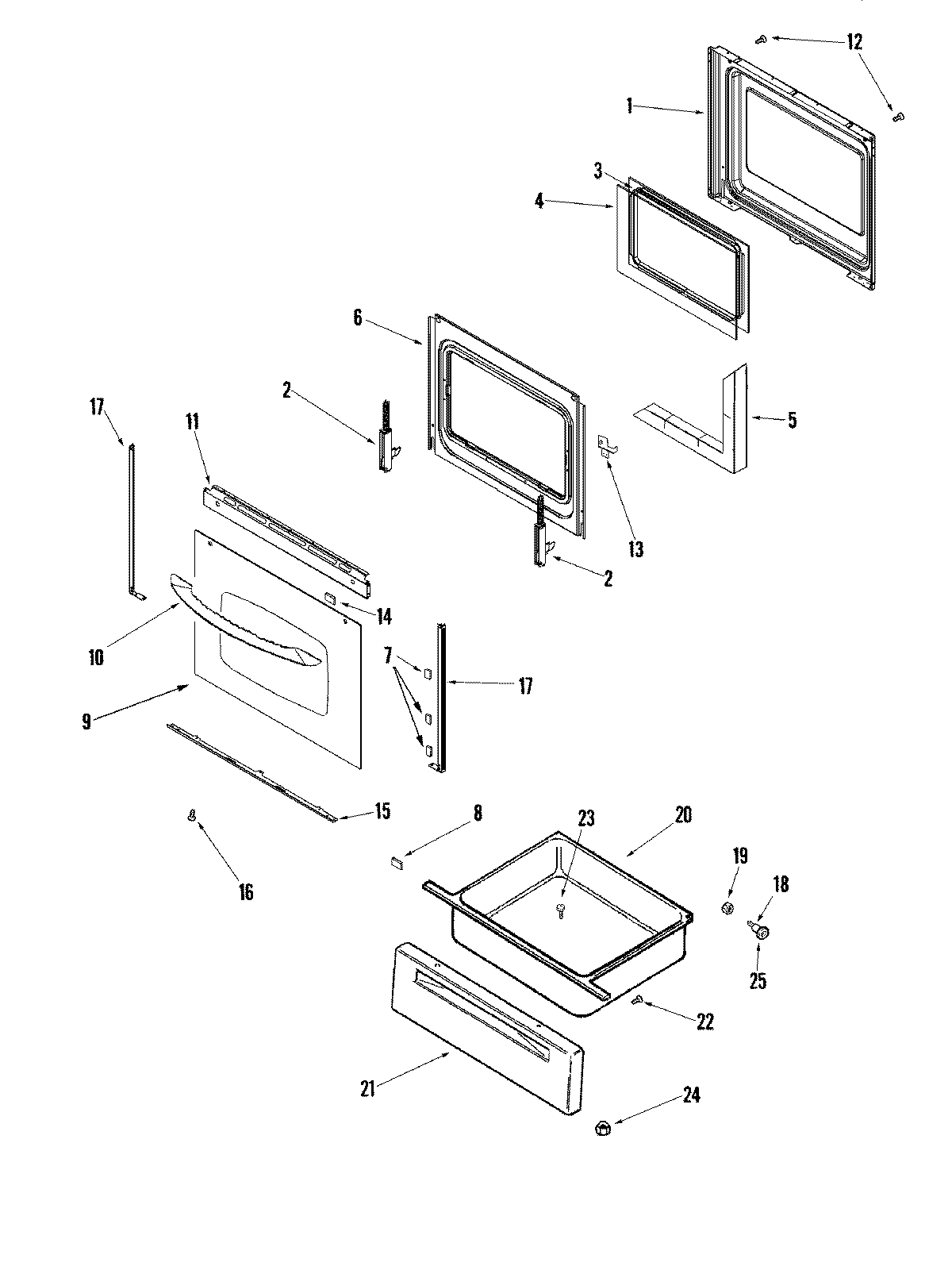

MER5875RCQ 04 – DOOR/DRAWER

Products

Position	Product
1	MAY 74008926
2	74010546 Whirlpool Range Oven Door Hinge
3	3801F886-51 Whirlpool Mounting Bracket
3	FRAME, GLASS
4	74003645 Whirlpool Range Oven Door Inner Glass
5	INSULATION, OVEN DOOR
6	MAY 74008744
6	Retainer, Side
7	WP74009014 Whirlpool Double Tape
8	WP74005546 Whirlpool RU Spacer
9	GLASS, DOOR (BSQ)
10	WP74011778 Whirlpool Door Handle
11	TRIM, TOP (BSQ)
11	WP74009541 Whirlpool Screw Assembly
12	WP74006515 Whirlpool Washer Screw
13	BRACKET, DOOR HANDLE (LT)
13	WPY706189 Whirlpool Stove Screw
13	BRACKET, DOOR HANDLE (RT)
15	TRIM, BOTTOM (BSQ)
16	SCREW (10-24X5/16-NI)
17	TRIM, SIDE (BSQ)
18	SHAFT, STORAGE DRAWER ROLLER
19	WP488130 Whirlpool Air Conditioner Nut
20	PLATE, PANEL MTG.
20	DRAWER, STORAGE
20	MAY 3405F037-80
21	MAY 74008756
21	WP3405F037-80 Whirlpool Utility Drawer
22	SCREW
23	WP7101P072-60 Whirlpool Screw
24	WPW10131078 Whirlpool Nut Assembly
25	WP74004078 Whirlpool Door Roller
