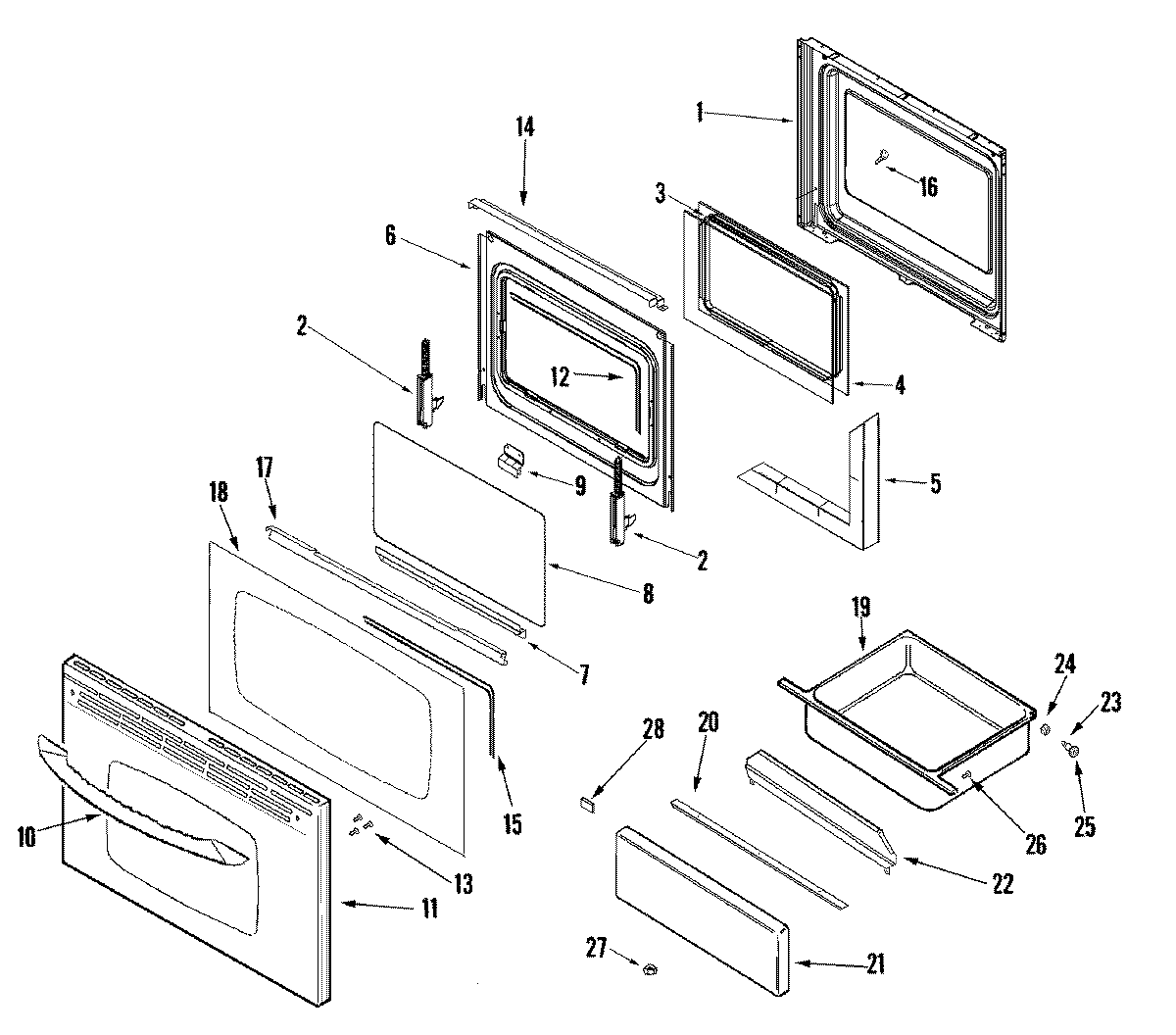

MER5875RCS 04 – DOOR/DRAWER (STL)admin2025-04-26T09:13:34+00:00MER5875RCS 04 – DOOR/DRAWER (STL)
Products
| Position | Product |
|---|
| 1 | MAY 74008926 |
| 2 | 74010546 Whirlpool Range Oven Door Hinge |
| 3 | WPY706189 Whirlpool Stove Screw |
| 3 | FRAME, GLASS |
| 4 | 74003645 Whirlpool Range Oven Door Inner Glass |
| 5 | INSULATION, OVEN DOOR |
| 6 | MAY 74008744 |
| 7 | MAY 74008745 |
| 8 | GLASS, DOOR |
| 9 | Trim, Door Top (Black) |
| 10 | WP7701P526-60 Whirlpool Door Handle |
| 11 | MAY 74008951 |
| 12 | Gasket, Window |
| 13 | MAY 74011772 |
| 13 | WP74006515 Whirlpool Washer Screw |
| 14 | Baffel, Door |
| 15 | WP74009029 Whirlpool Door Gasket |
| 16 | SCREW (10-24X5/16-NI) |
| 17 | Bracket, Glass |
| 18 | MAY 74008855 |
| 19 | PLATE, PANEL MTG. |
| 19 | MAY 74008337 |
| 19 | MAY 3405F037-80 |
| 20 | MAY 74008909 |
| 20 | HANDLE, DRAWER |
| 21 | 12002306 Whirlpool Air Conditioner Drawer Panel Kit |
| 21 | PANEL, DRAWER (STL-ELEC) |
| 22 | WP3604F390-51 Whirlpool Shield |
| 23 | SHAFT, STORAGE DRAWER ROLLER |
| 24 | WPW10131078 Whirlpool Nut Assembly |
| 25 | WP74004078 Whirlpool Door Roller |
| 26 | SCREW |
| 27 | WP488130 Whirlpool Air Conditioner Nut |
| 28 | WP74005546 Whirlpool RU Spacer |
